Introducing the Automatic High-Speed Nylon and Polyester Mother Yarn Splitting Machine Rolling on Paper Tube, brought to you. This state-of-the-art machine is perfect for textile production and will greatly increase efficiency and productivity in your manufacturing process.
The machine is designed to work with both nylon and polyester mother yarns, and can quickly split them into multiple strands. This makes it easier to work with the yarns and ensures that they are evenly distributed throughout the fabric. The machine operates at a high speed, making it ideal for large-scale production.
The yarn splitting process is achieved through advanced technology that allows for precise cutting and splitting. The machine is equipped with a powerful motor that runs smoothly and quietly, ensuring minimal disruption to your production line. Additionally, the profixM machine is designed to minimize waste by cutting the yarns precisely, making the most of every strand.
One of the key features of this machine is that it is able to roll the split yarns onto paper tubes. This not only ensures that the yarns are neatly organized, but also makes it easier for them to be transported to the next stage of production. The paper tubes are lightweight and can easily be stacked and stored, making it easy to keep track of inventory.
The Automatic High-Speed Nylon and Polyester Mother Yarn Splitting Machine Rolling on Paper Tube has been designed with ease of use in mind. The controls are intuitive and easy to operate, and the machine comes with clear instructions and diagrams to help you get started. Additionally, the machine is easy to maintain and clean, ensuring that it continues to operate at peak performance for years to come.
The Automatic High-Speed Nylon and Polyester Mother Yarn Splitting Machine Rolling on Paper Tube is a must-have for textile production. Its advanced technology, high speed, and precision cutting make it an essential tool for any manufacturing process. And with its ease of use and low maintenance requirements, it's a sound investment that will pay off for years to come. Choose ProfixM for quality, efficiency, and precision in textile production.
item |
value |
product |
Machine |
material capabilities |
Nylon and polyester mono yarn |
weight (kg) |
600 |
machine type |
Mother yarn splitting machine |
video outgoing-inspection |
Provided |
machinery test report |
Provided |
core components |
Engine |
place of origin |
China |
|
Jiangsu |
warranty |
1 Year |
Name |
Mother yarn splitting machine |
Winding coil skeleton |
95-130x230mm |
Splitting tension |
0.6g/d- 1.0g/d |
Winding |
120*2300mm |
splitting speed |
200D/10F can reach 800/min |
Forming device |
100mm-460mm |
Spindle motor |
1kw |
Wire feed motor |
0.24kw |
Forming motor |
0.02kw |
Spitting motor |
0.02kw |

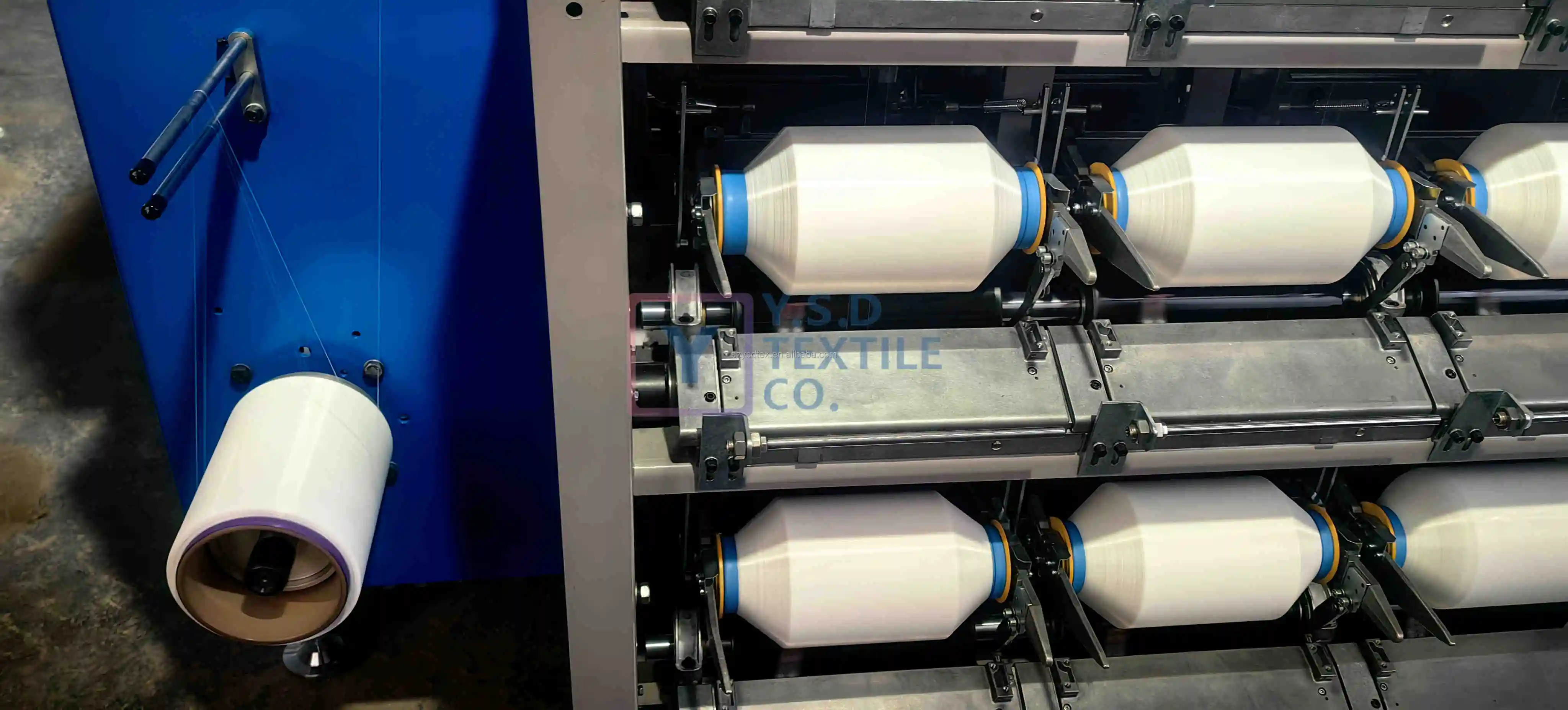

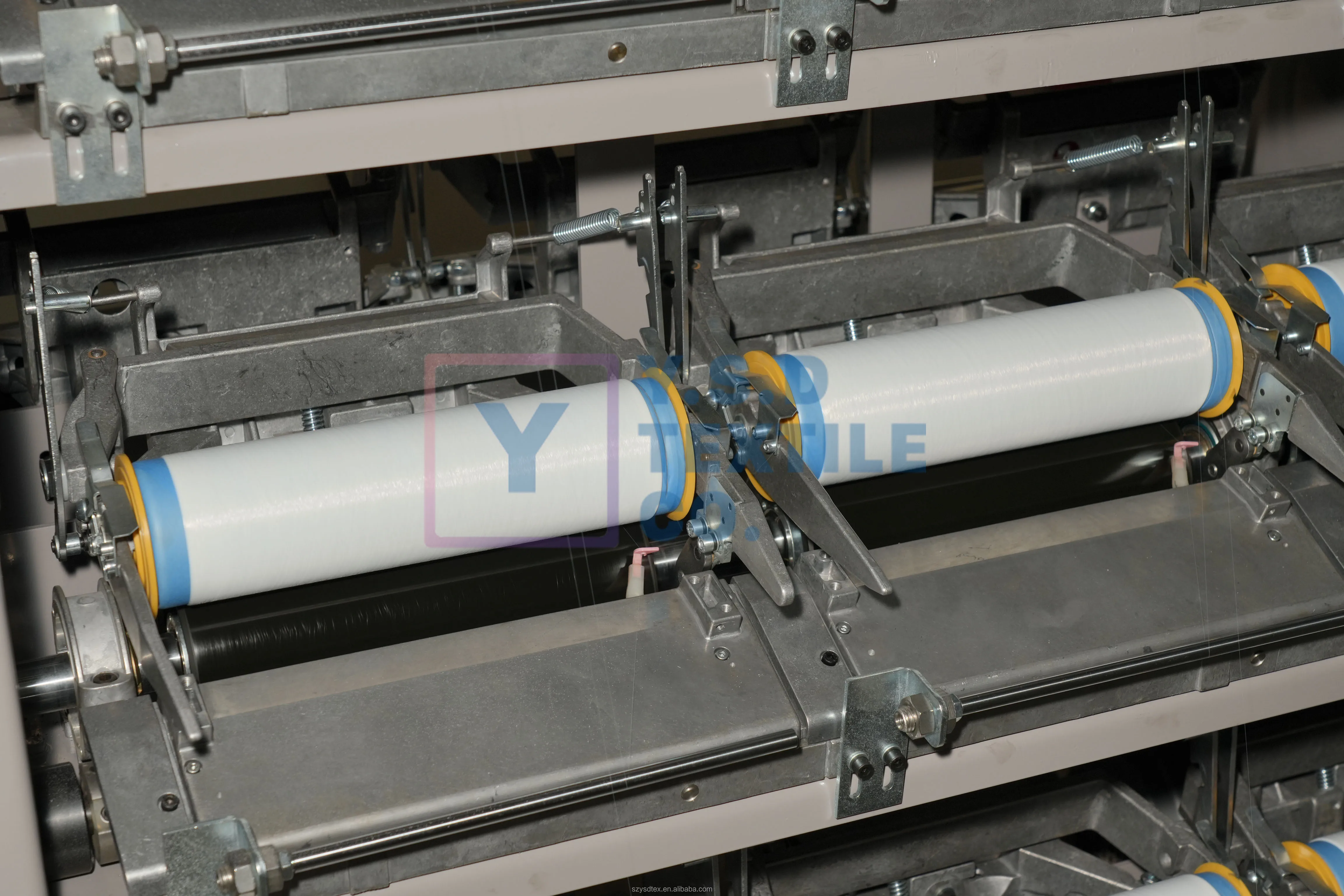

Mother yarn splitting machine rolling on paper bobbin
1. stable tension on each splitted bobbin from beginning to end
2. use normal DTY paper bobbin, low production cost and easy found
3. no weight limit on mother yarn size, 12kg -- 24kg can run
4. running speed 800-900 m/min
5. friction drum control each spindle, no need each splitted bobbin same size, according to your require decide each bobbin size during splitting
spindles |
height |
length |
width |
24 |
1900mm |
2000mm |
1000mm |

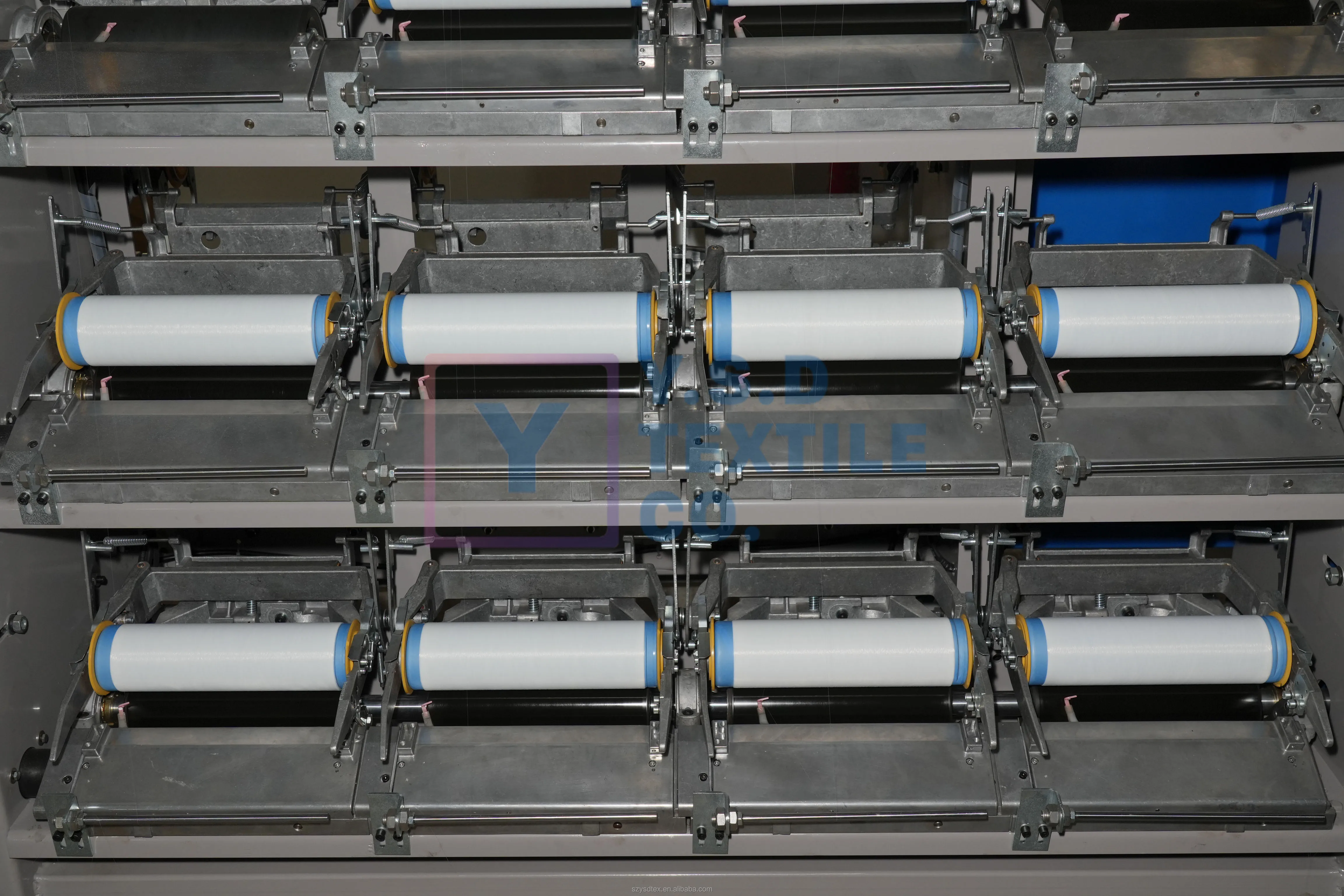

1. Spindles
One side 12 spindles, two sides total 24 spindles (separate control)
2. Paper bobbin size
Length 290mm, outsize 78mm, inner size 67mm and 56mm,
3. Stable tension
Friction drum keep each bobbin same tension
4. Export package
5 sets in 1*20GP11 sets in 1*40HQ
5. Split mother yarn
Nylon and polyester mono yarn with 10D-70D, within 12F

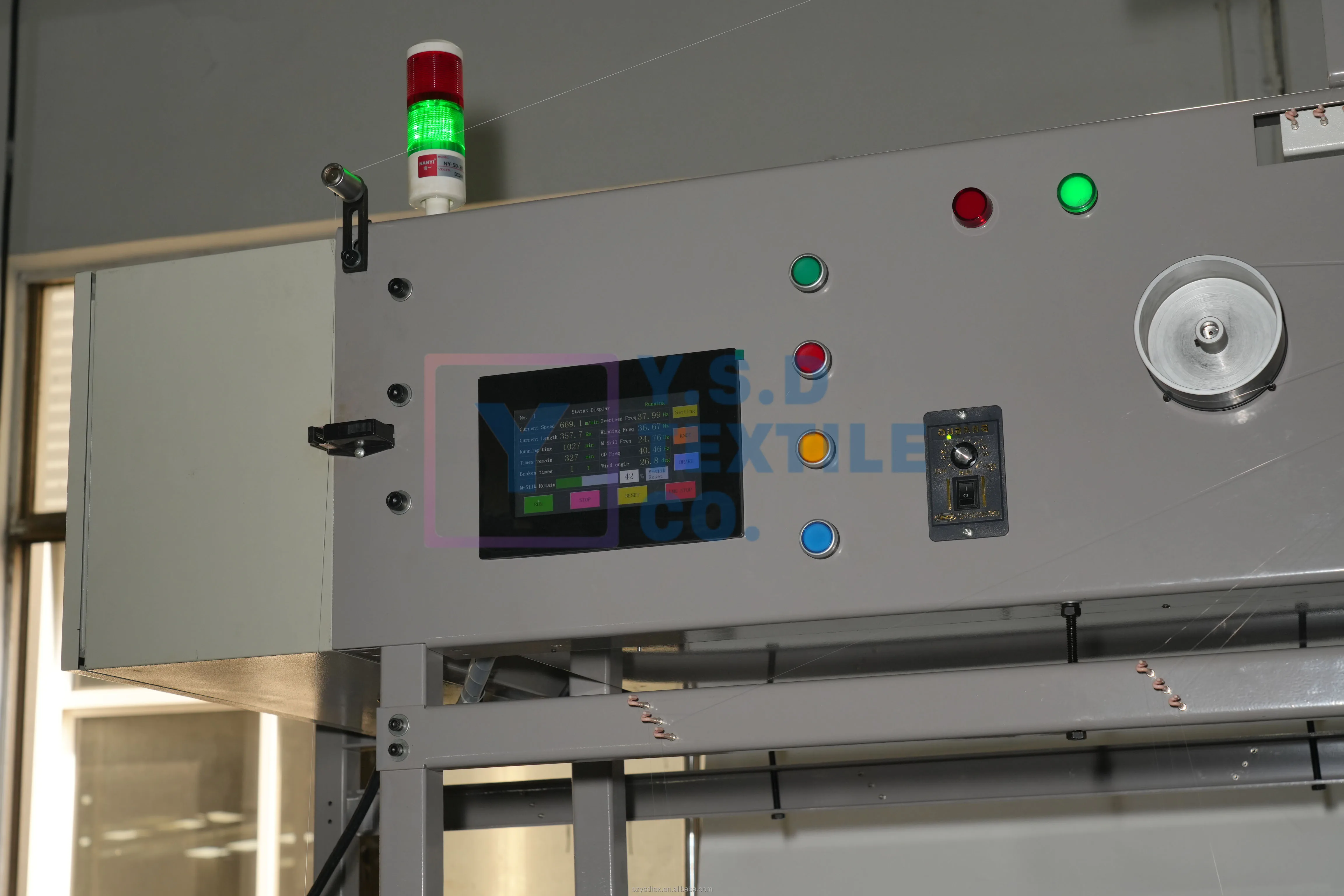

6. Easy control system
Delta motors, English control system
Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win.
1. How about production time? Each group of machine production time 40-50 days, 50 sets each group
2. How about payment term?
T/T 3/7 before delivery, LC at sight
3. How about production quantity?
Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)
4. How about speed at machine?
Normally run 800-1000m/min
5. How about electric match?
Use Delta motor, running power about 2kw, start power 1.5kw
