If you're looking for a top-of-the-line automatic yarn splitting machine for your textile manufacturing business, look no further than the profixM’s High Automatic Nylon & Polyester Mother Yarn Splitting Machine. This innovative machine is designed to transform your manufacturing process, making it faster, more efficient, and more reliable than ever before.
One of the standout features of this machine is its advanced automatic technology. With the push of a button, the profixM’s High Automatic Nylon & Polyester Mother Yarn Splitting Machine takes over, splitting your yarn with incredible precision and speed. This means you can spend less time on manual labor and more time focusing on other aspects of your business.
In addition to its impressive automation, this machine is also made with high-quality materials. The split roll paper tubes are crafted from sturdy, durable nylon and polyester, ensuring that they'll hold up over time and withstand heavy use in high-volume production environments.
Whether you're working with nylon, polyester, or other tough materials, this machine is up to the task. It can handle even the most challenging yarns with ease, splitting them quickly and consistently to ensure the highest quality finished products.
As a manufacturer, you know that time is money. That's why the profixM’s High Automatic Nylon & Polyester Mother Yarn Splitting Machine is designed to work quickly, cutting down on production time and helping you get your products to market faster. And with its intuitive controls and user-friendly interface, it's easy to operate and integrate into your existing production line.
At the heart of every successful manufacturing business is reliable, top-quality machinery. With the profixM’s High Automatic Nylon & Polyester Mother Yarn Splitting Machine Rolling on Paper Tube Manufacturer Textile Machinery, you can be confident that you're investing in a product that will help take your business to the next level. So, why wait? Upgrade your textile manufacturing process today with the profixM’s High Automatic Nylon & Polyester Mother Yarn Splitting Machine and start seeing the results for yourself
item |
value |
product |
Machine |
material capabilities |
Nylon and polyester mono yarn |
Weight (kg) |
600 |
machine type |
Mother yarn splitting machine |
Video outgoing-inspection |
Provided |
machinery test report |
Provided |
core components |
Engine |
place of origin |
China |
|
Jiangsu |
warranty |
1 Year |
Name |
Mother yarn splitting machine |
Winding coil skeleton |
95-130x230mm |
Splitting tension |
0.6g/d- 1.0g/d |
Winding |
120*2300mm |
splitting speed |
200D/10F can reach 800/min |
Forming device |
100mm-460mm |
Spindle motor |
1kw |
Wire feed motor |
0.24kw |
Forming motor |
0.02kw |
Spitting motor |
0.02kw |

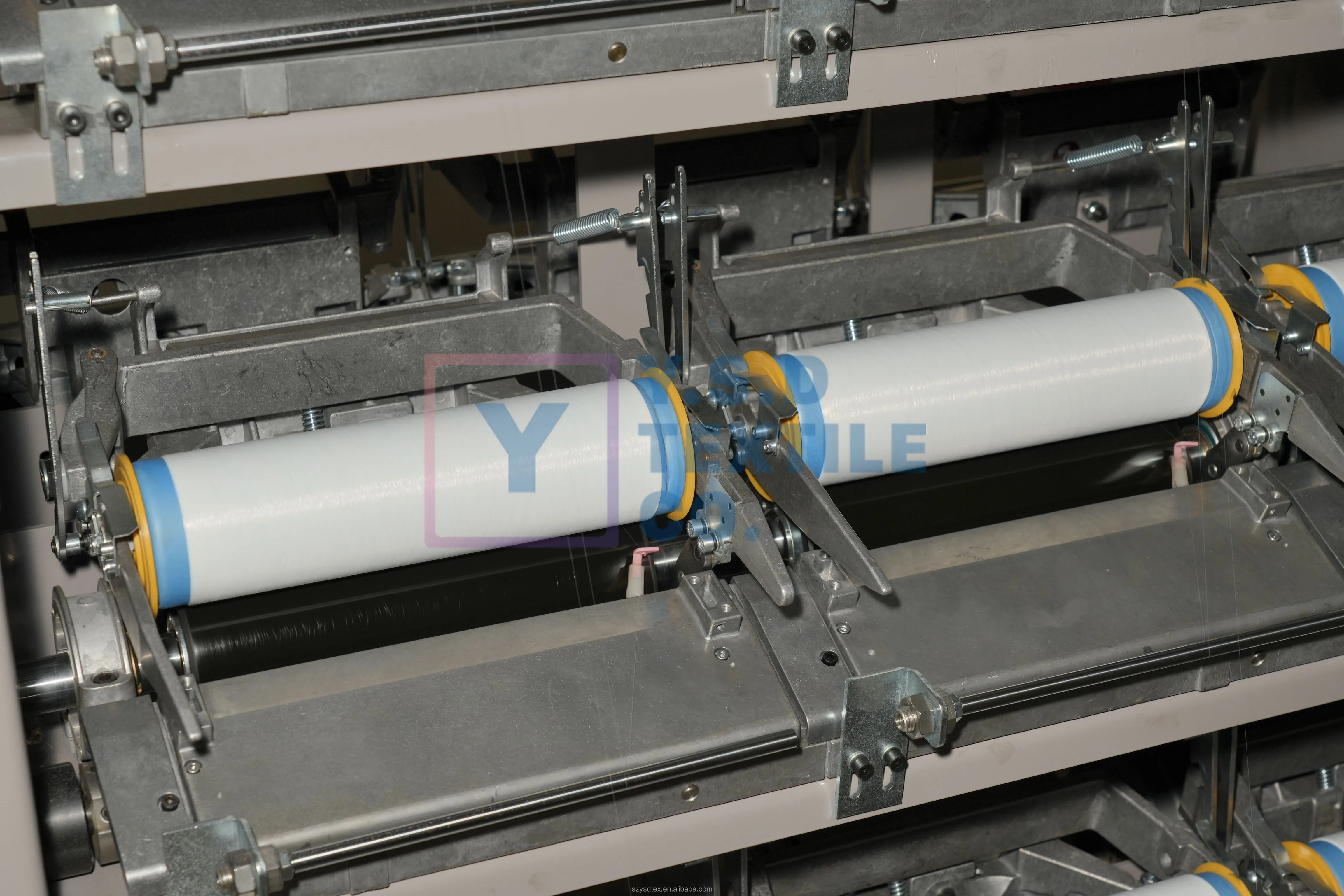

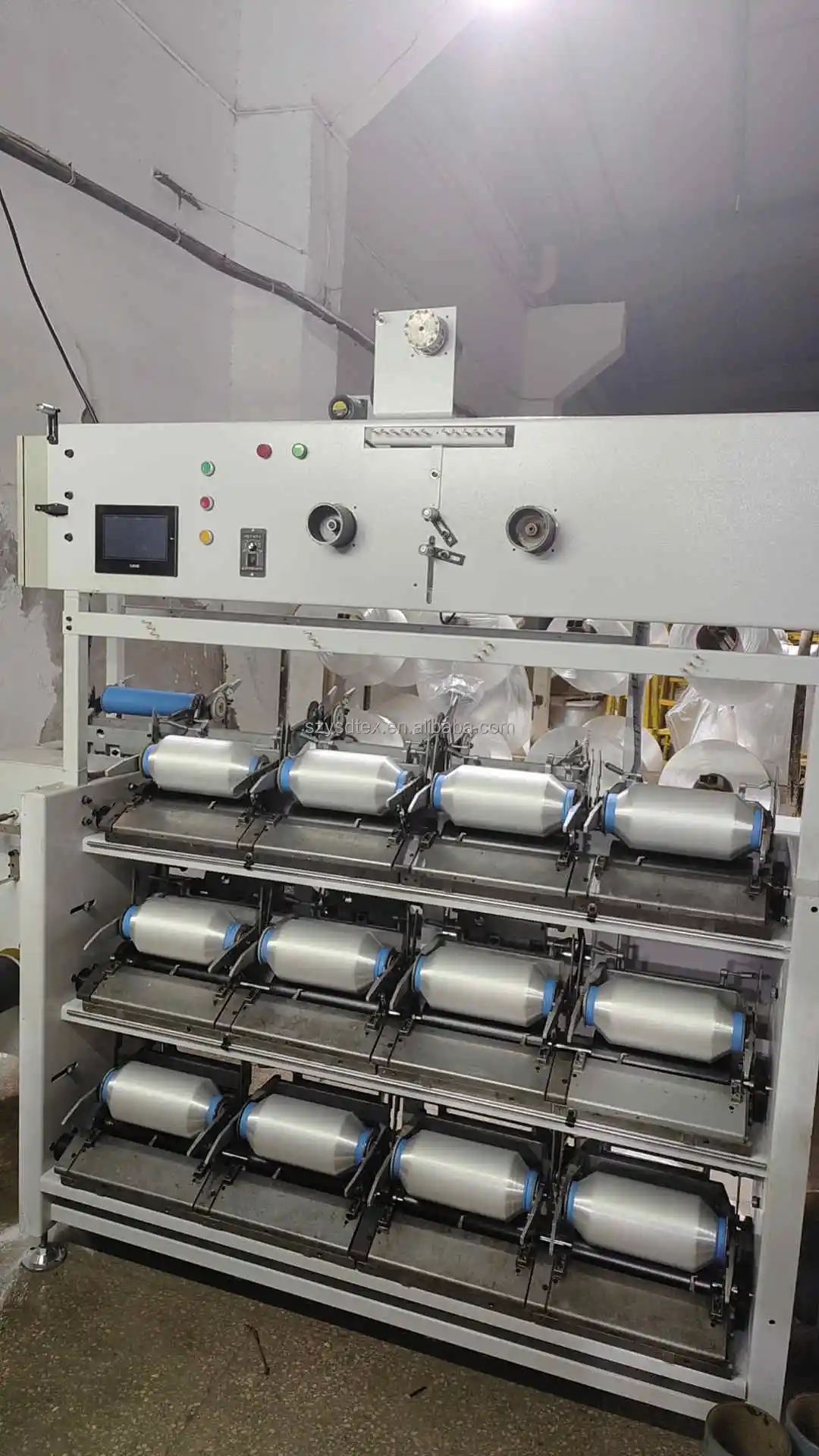

Mother yarn splitting machine rolling on paper bobbin
1. stable tension on each Splitted bobbin from beginning to end
2. use normal DTY paper bobbin, low production cost and easy found
3. no weight limit on mother yarn size, 12kg -- 24kg can run
4. running speed 800-900 m/min
5. friction drum control each spindle, no need each Splitted bobbin same size, according to your require decide each bobbin size during splitting
spindles |
height |
length |
width |
24 |
1900mm |
2000mm |
1000mm |

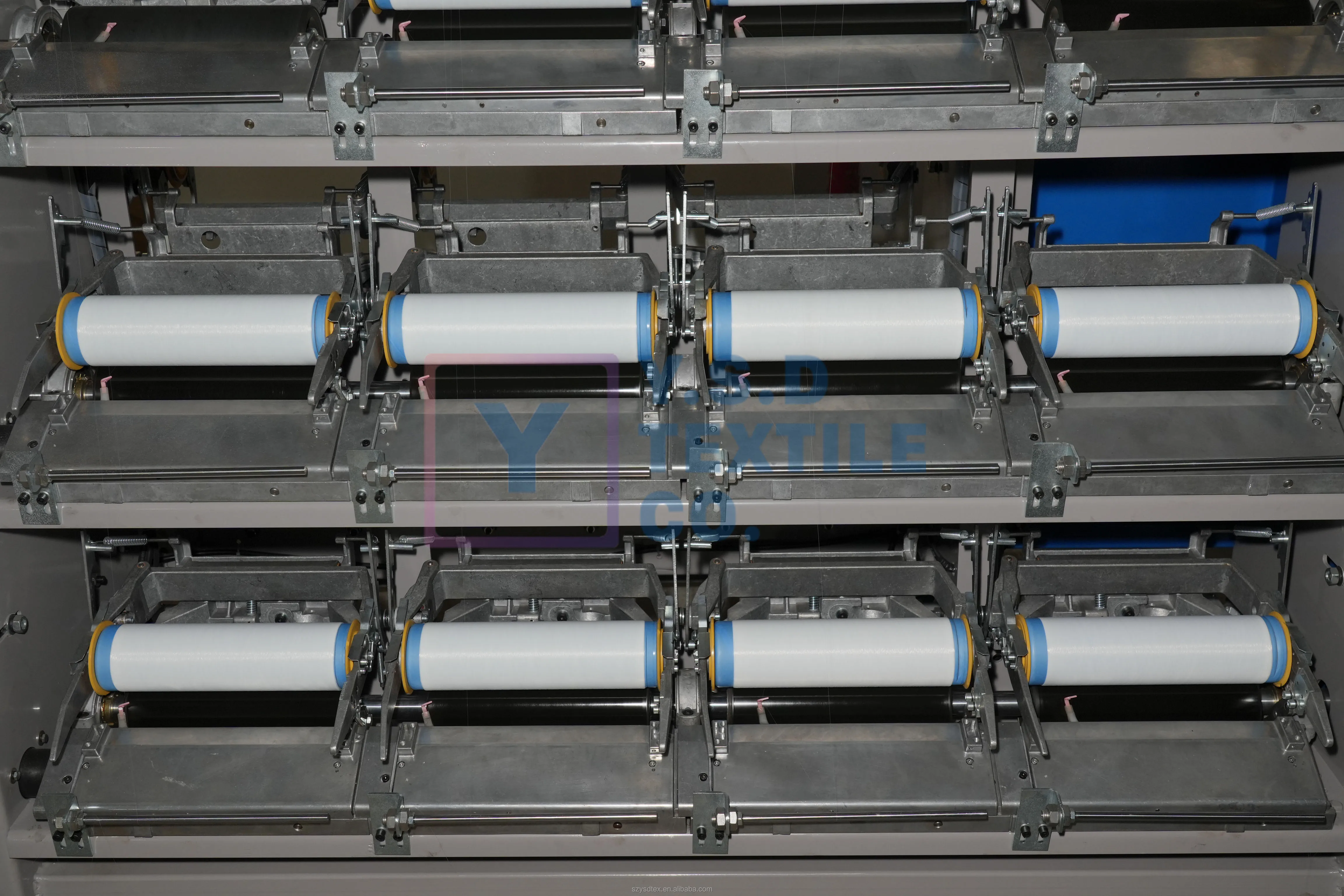

1. Spindles
One side 12 spindles, two sides total 24 spindles (separate control)
2. Paper bobbin size
Length 290mm, outsize 78mm, inner size 67mm and 56mm,
3. Stable tension
Friction drum keep each bobbin same tension
4. Export package
5 sets in 1*20GP11 sets in 1*40HQ

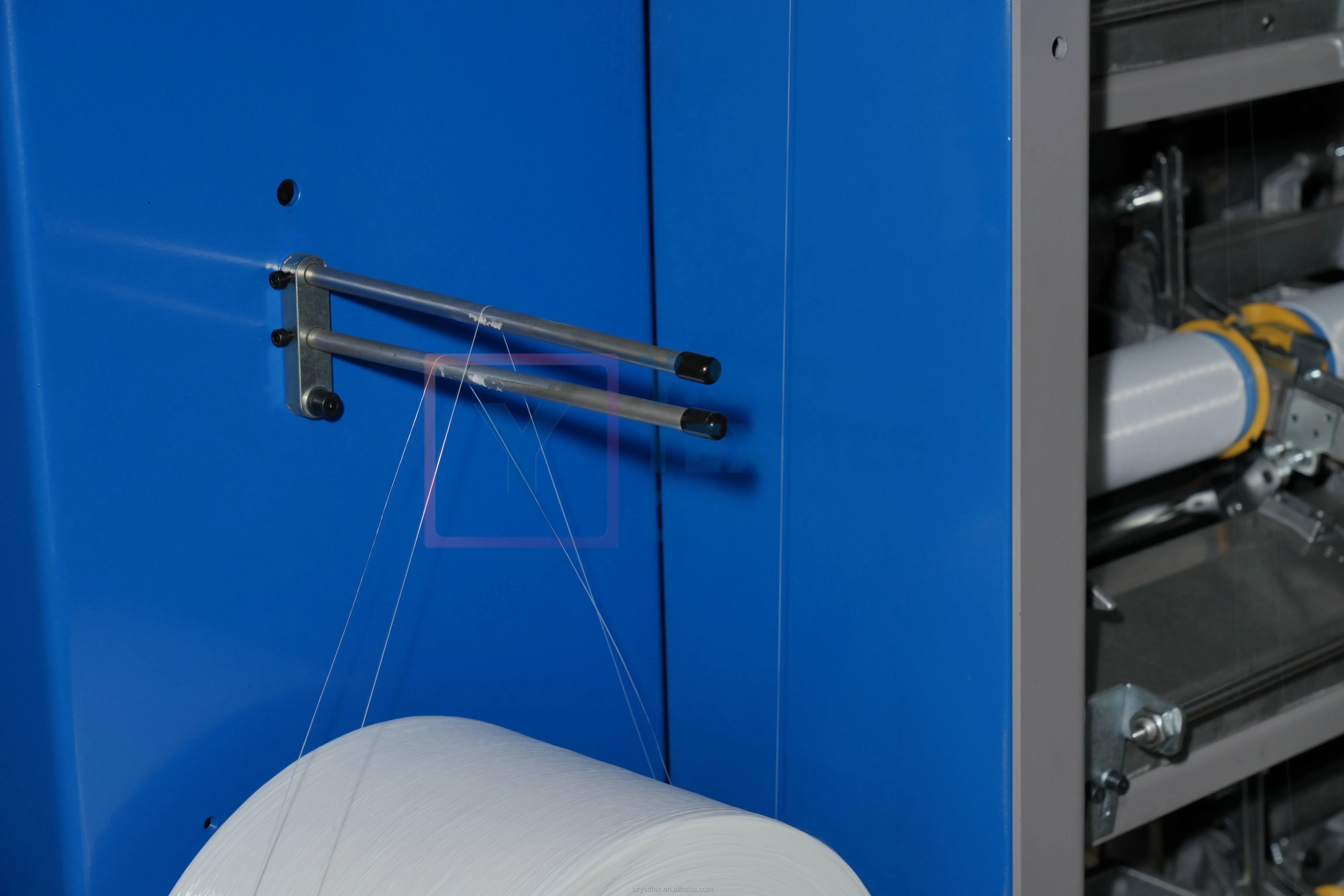

5. Split mother yarn
Nylon and polyester mono yarn with 10D-70D, within 12F
6. Easy control system
Delta motors, English control system
Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win
1. How about production timeEach group of machine production time 40-50 days, 50 sets each group
2. How about payment term
T/T 3/7 before delivery, LC at sight
3. How about production quantity
Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)
4. How about speed at machine
Normally run 800-1000m/min
5. How about electric match
Use Delta motor, running power about 2kw, start power 1.5kw
