High Speed automatic Nylon and polyester mother yarn splitting machine rolling on paper tube

High Speed automatic Nylon and polyester mother yarn splitting machine rolling on paper tube

  • Overview
  • Inquiry
  • Related Products

The profixM brand has brought us another miracle product, the High Speed automatic Nylon and polyester mother yarn splitting machine rolling on paper tube. This state-of-the-art machine is designed to split the mother yarn into small rolls and roll them on paper tubes automatically, saving your time and effort.



With its high speed, this versatile machine can split mother yarn into up to 22 small rolls at a time and roll them onto paper tubes of various sizes ranging from 32mm to 60mm. The rolling speed can reach up to 80 meters per minute with consistent and precise quality.



The profixM’s High Speed automatic Nylon and polyester mother yarn splitting machine is exceptionally handy for businesses that deal with textiles, especially those involving nylon and polyester yarns. It can support materials with a maximum weight of 5kg per spindle, and provide high accuracy in splitting the mother yarn and rolling it evenly on paper tubes of different sizes.



One of the remarkable features of this automated process is the electronic adjustment system that allows operators to make quick and precise adjustments for different sizes of mother yarn and paper tubes. This way, the machine can be used to produce small quantities of the desired thread production and ensure the reduction of waste on materials.



Furthermore, the profixM’s High Speed automatic Nylon and polyester mother yarn splitting machine is designed in a way that ensures operators' safety by using advanced systems for detecting and correcting faults such as yarn breakage, coiling errors, and automatic stop. It is also fitted with digital displays that show the machine's performance and signal alarms for any error detected.



In terms of energy efficiency, the machine's power source supports both single-phase and three-phase electric input, which can save up to 50% of the energy used. It also comes with a low noise level, ensuring its tranquility in the working environment.



This innovative machine with the profixM brand is globally recognized to be off high quality and standards. Using its high speed and automated process, the profixM’s High Speed automatic Nylon and polyester mother yarn splitting machine is perfect for businesses that are looking to increase their productivity and reduce their operational cost. This machine ensures consistency in the quality of the mother yarn being split and rolled, providing reliable results for businesses involved in textile production

Product Description
Specification
item
value
product
Machine
material capabilities
Nylon and polyester mono yarn
Weight (kg)
600
machine type
Mother yarn splitting machine
Video outgoing-inspection
Provided
machinery test report
Provided
core components
Engine
place of origin
China
Jiangsu
warranty
1 Year
Name
Mother yarn splitting machine
Winding coil skeleton
95-130x230mm
Splitting tension
0.6g/d- 1.0g/d
Winding
120*2300mm
splitting speed
200D/10F can reach 800/min
Forming device
100mm-460mm
Spindle motor
1kw
Wire feed motor
0.24kw
Forming motor
0.02kw
Spitting motor
0.02kw
Details Images

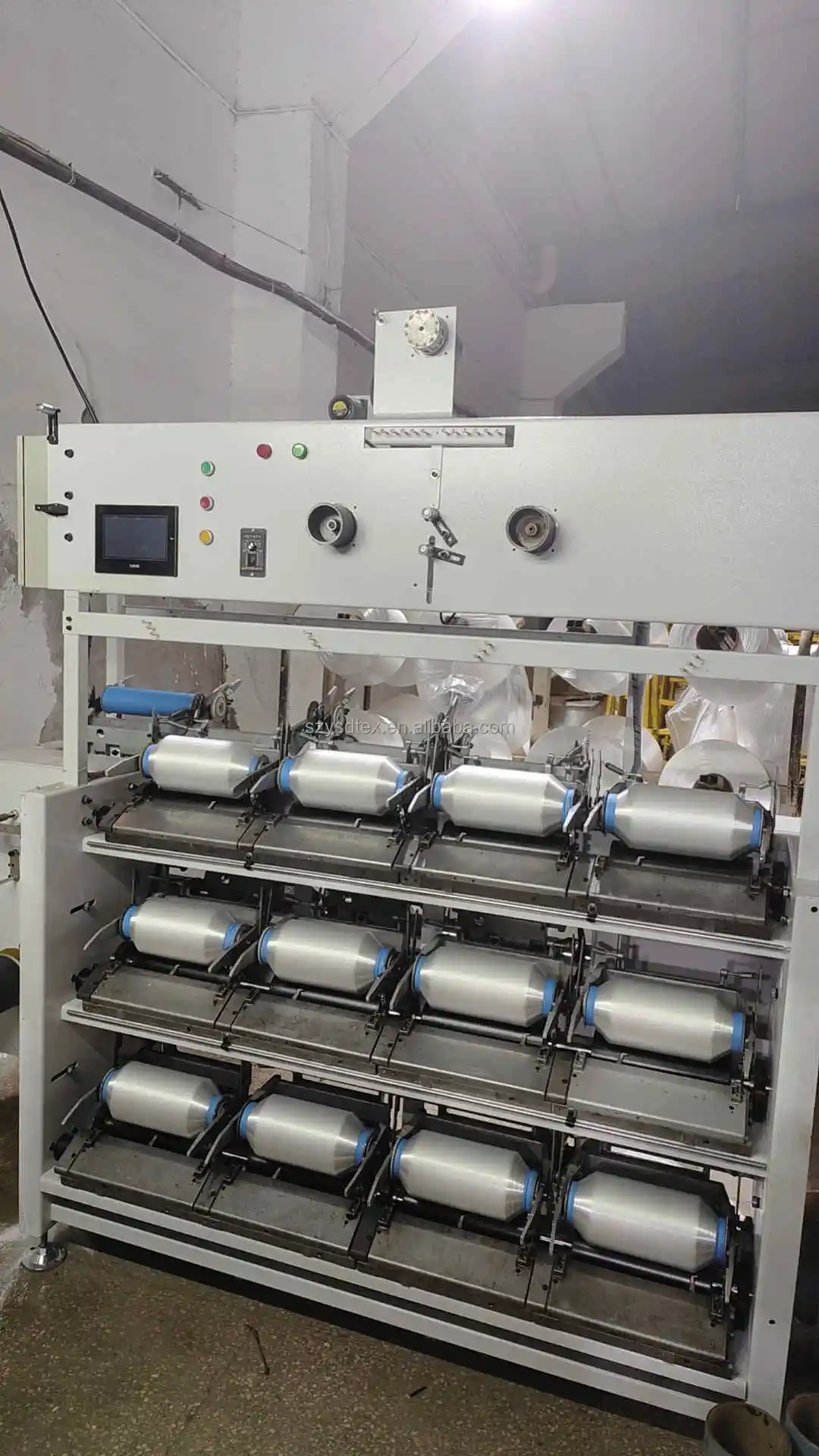

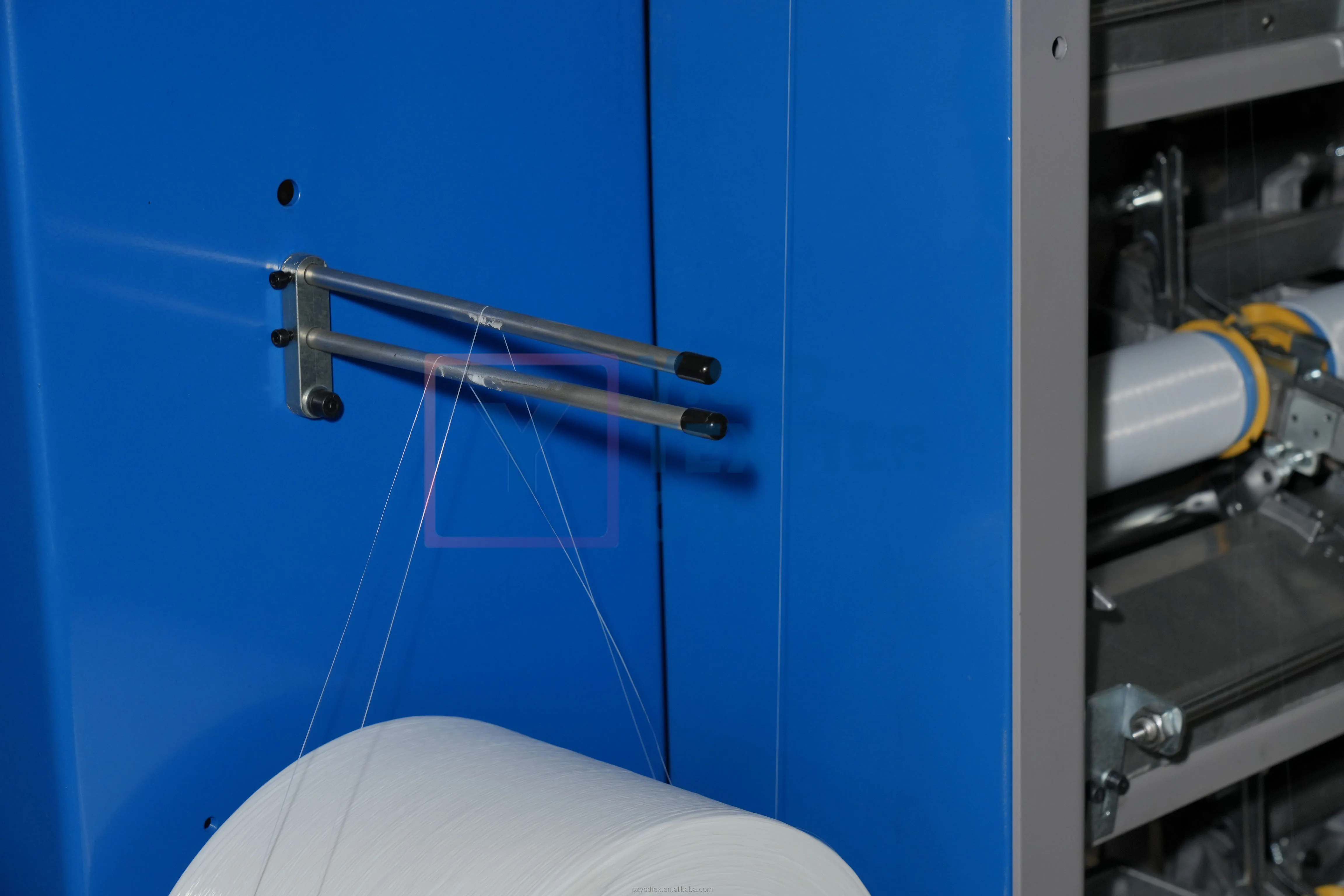

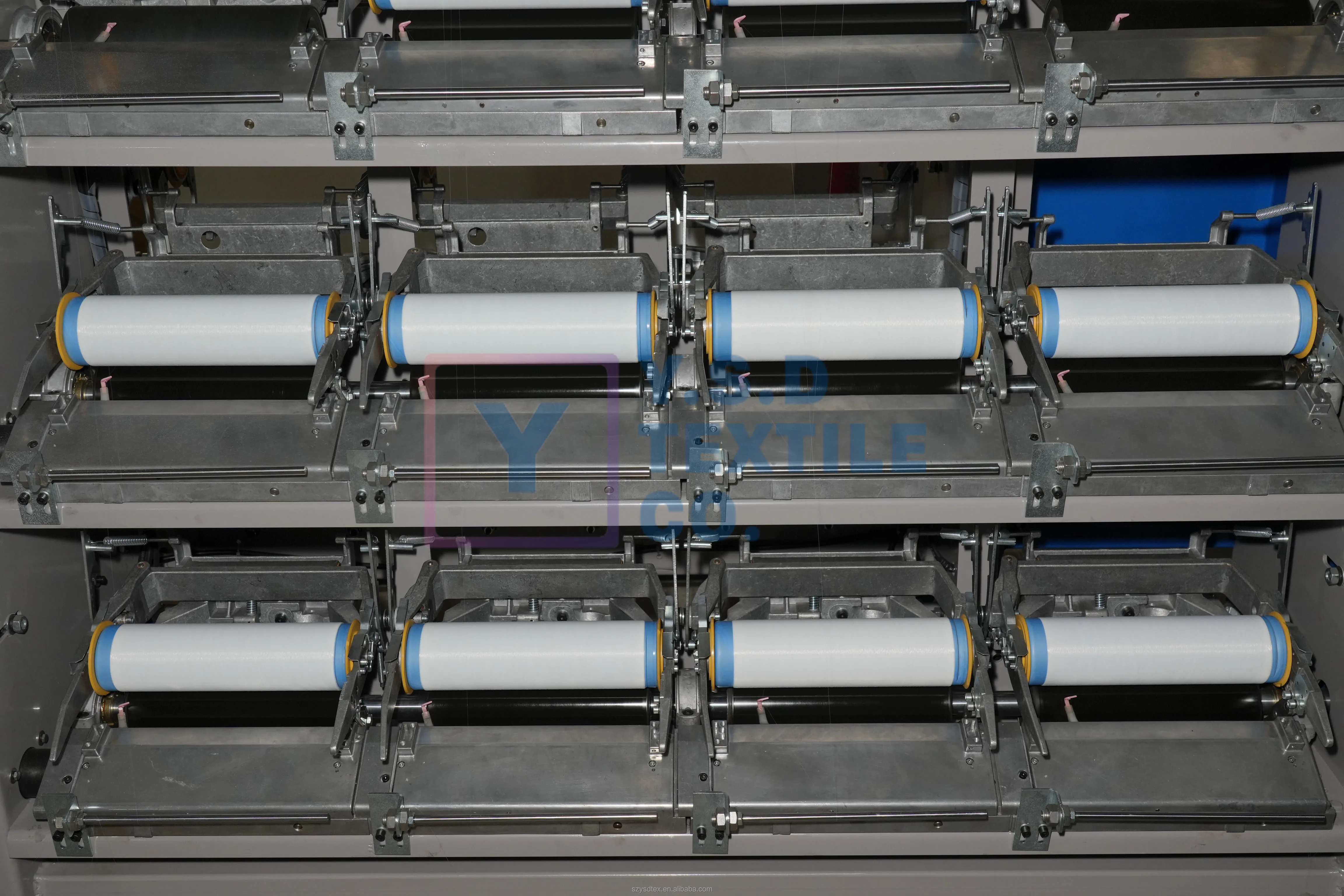

Mother yarn splitting machine rolling on paper bobbin
1. stable tension on each Splitted bobbin from beginning to end

2. use
normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size,
12kg -- 24kg
can run

4. running speed
800-900 m/min

5.
friction drum control
each spindle, no need each Splitted bobbin same size, according to your require decide each bobbin size during splitting
spindles
height
length
width
24
1900mm
2000mm
1000mm
PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP
11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

6. Easy control system

Delta motors, English control system
Certifications
Company Profile
Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win
Exhibition
FAQ

1. How about production time
Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term
T/T 3/7 before delivery, LC at sight

3. How about production quantity
Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine
Normally run 800-1000m/min

5. How about electric match
Use Delta motor, running power about 2kw, start power 1.5kw
