High-Speed Nylon & Polyester Mother Yarn Splitting Machine Textile Machinery for Manufacturing Plant Rolling on Paper Tube

ProfixM

Introducing the High-Speed Nylon & Polyester Mother Yarn Splitting Machine - the perfect addition to any textile manufacturing plant! This machine is designed to split mother yarn into multiple strands quickly and efficiently, saving both time and labor costs.

The ProfixM machine features a state-of-the-art design that is both durable and user-friendly. It is made with high-quality materials, including nylon and polyester, to ensure maximum performance and longevity. Additionally, the machine is easy to operate, allowing for quick setup and maintenance.

One of the most significant advantages of our profixM machine is its high-speed capability. The machine can split mother yarn into multiple strands at an incredible rate, making it ideal for large-scale manufacturing operations. Whether you're running a small business or a massive plant, the ProfixM machine will help you boost productivity and reduce downtime.

Another great feature of the ProfixM machine is its ability to roll the split yarn onto paper tubes. This innovative system ensures that the yarn is neatly contained and ready for processing, making it easy to transport and store until further use. The machine's rolling feature also helps reduce waste, ensuring that every strand is utilized and maximizing yields.

The ProfixM machine is versatile enough to handle a wide variety of mother yarn materials, including nylon and polyester. It is perfect for manufacturing a wide range of textiles, from clothing to carpets to upholstery. With its durable construction and reliable performance, you can trust the ProfixM machine to be a valuable asset to your textile production line for years to come.

If you're looking for a high-speed, reliable, and easy-to-use mother yarn splitting machine, look no further than the ProfixM High-Speed Nylon & Polyester Mother Yarn Splitting Machine. With its advanced technology, durable construction, and user-friendly design, you can trust this machine to meet all your textile manufacturing needs.

Product Description

Specification

item	value
product	Machine
material capabilities	Nylon and polyester mono yarn
weight (kg)	600
machine type	Mother yarn splitting machine
video outgoing-inspection	Provided
machinery test report	Provided
core components	Engine
place of origin	China
	Jiangsu
warranty	1 Year
Name	Mother yarn splitting machine
Winding coil skeleton	95-130x230mm
Splitting tension	0.6g/d- 1.0g/d
Winding	120*2300mm
splitting speed	200D/10F can reach 800/min
Forming device	100mm-460mm
Spindle motor	1kw
Wire feed motor	0.24kw
Forming motor	0.02kw
Spitting motor	0.02kw

Details Images

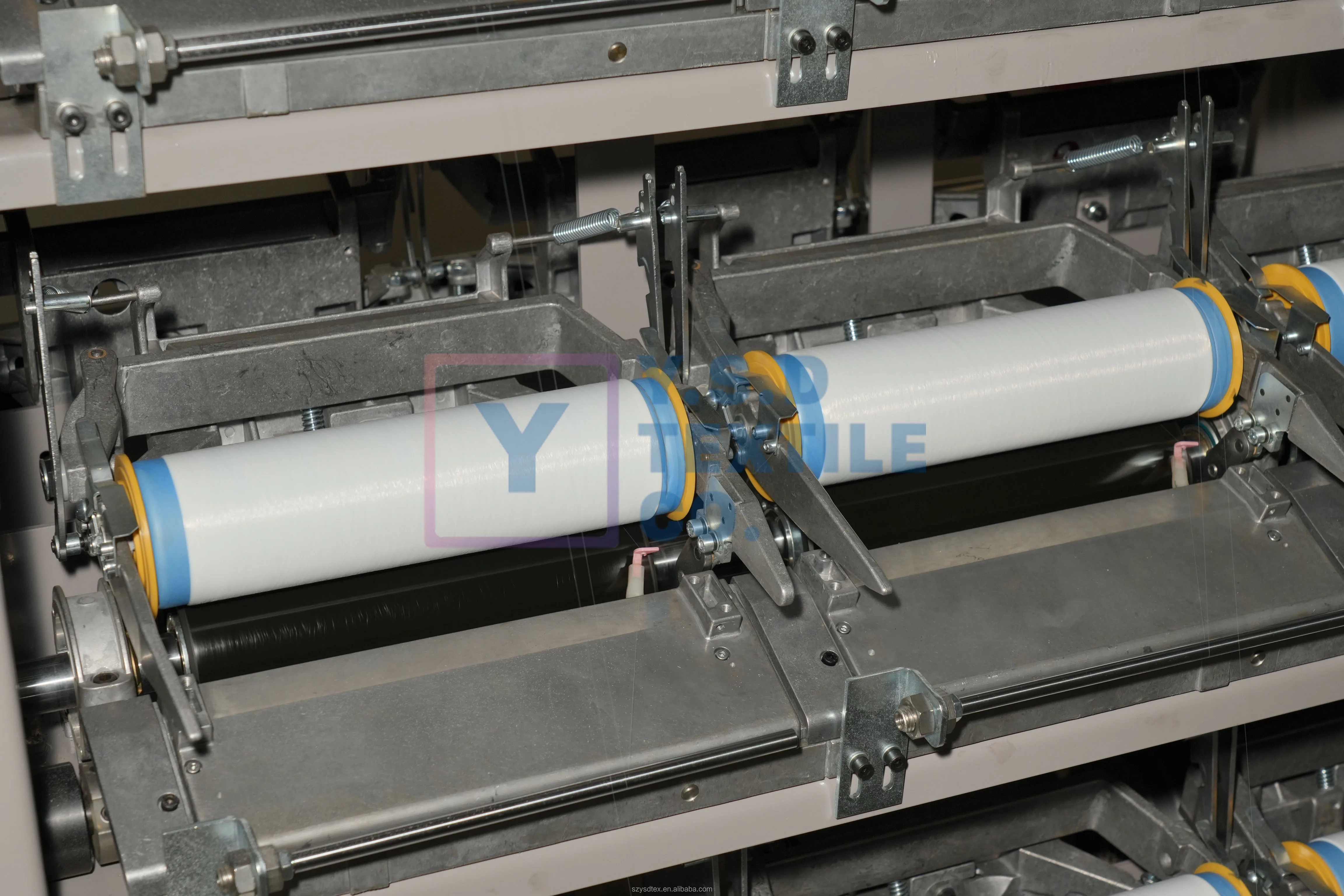

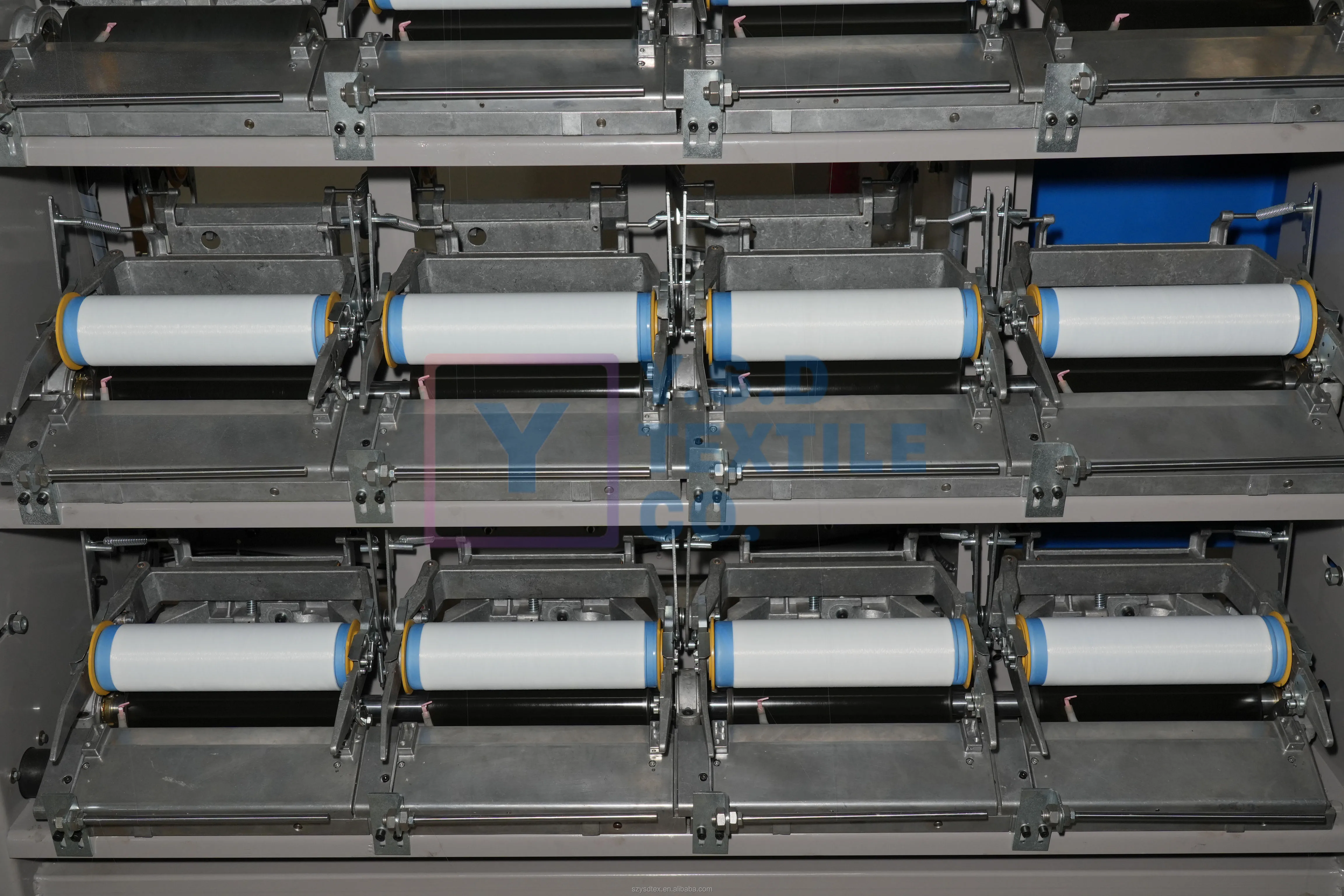

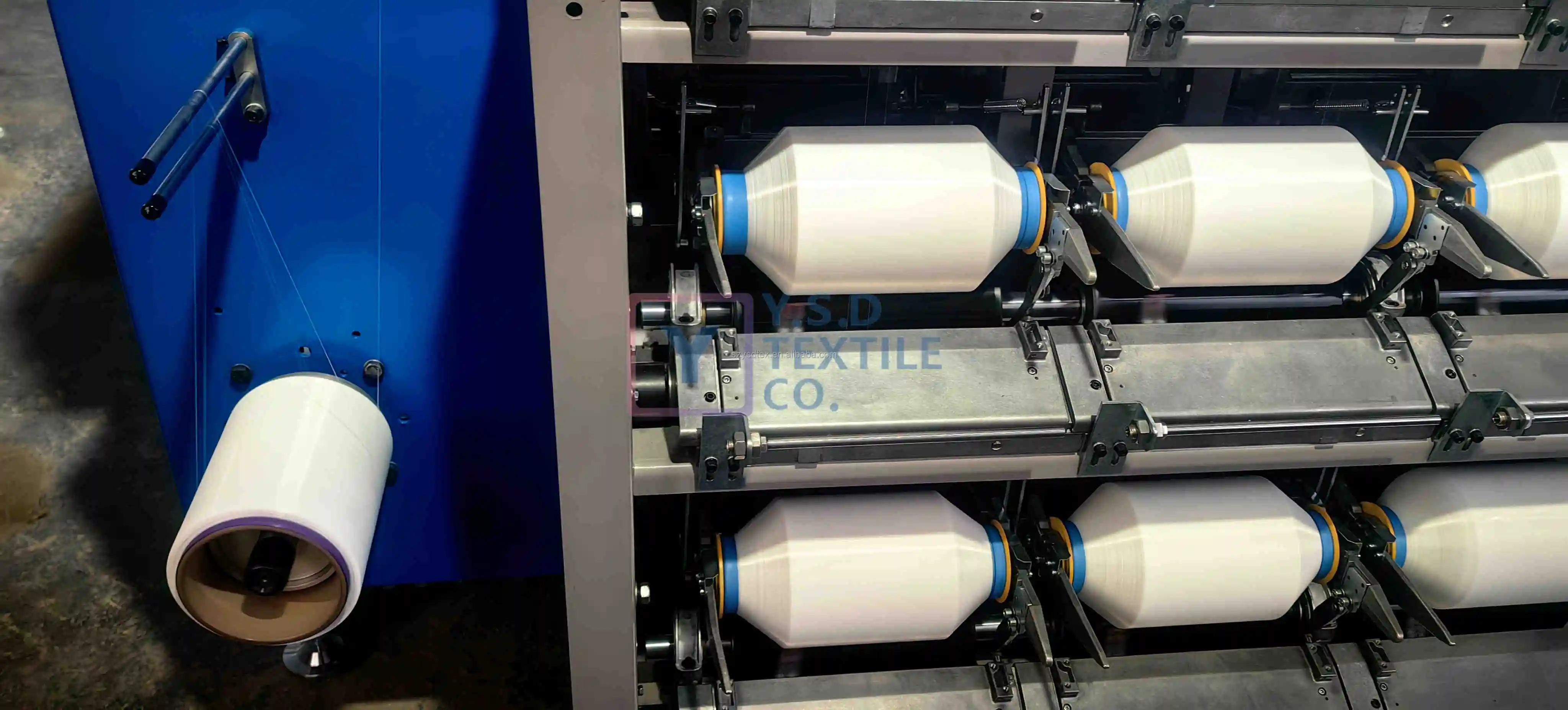

Mother yarn splitting machine rolling on paper bobbin

1. stable tension on each splitted bobbin from beginning to end

2. use normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size, 12kg -- 24kg can run

4. running speed 800-900 m/min

5. friction drum control each spindle, no need each splitted bobbin same size, according to your require decide each bobbin size during splitting

spindles	height	length	width
24	1900mm	2000mm	1000mm

PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP

11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

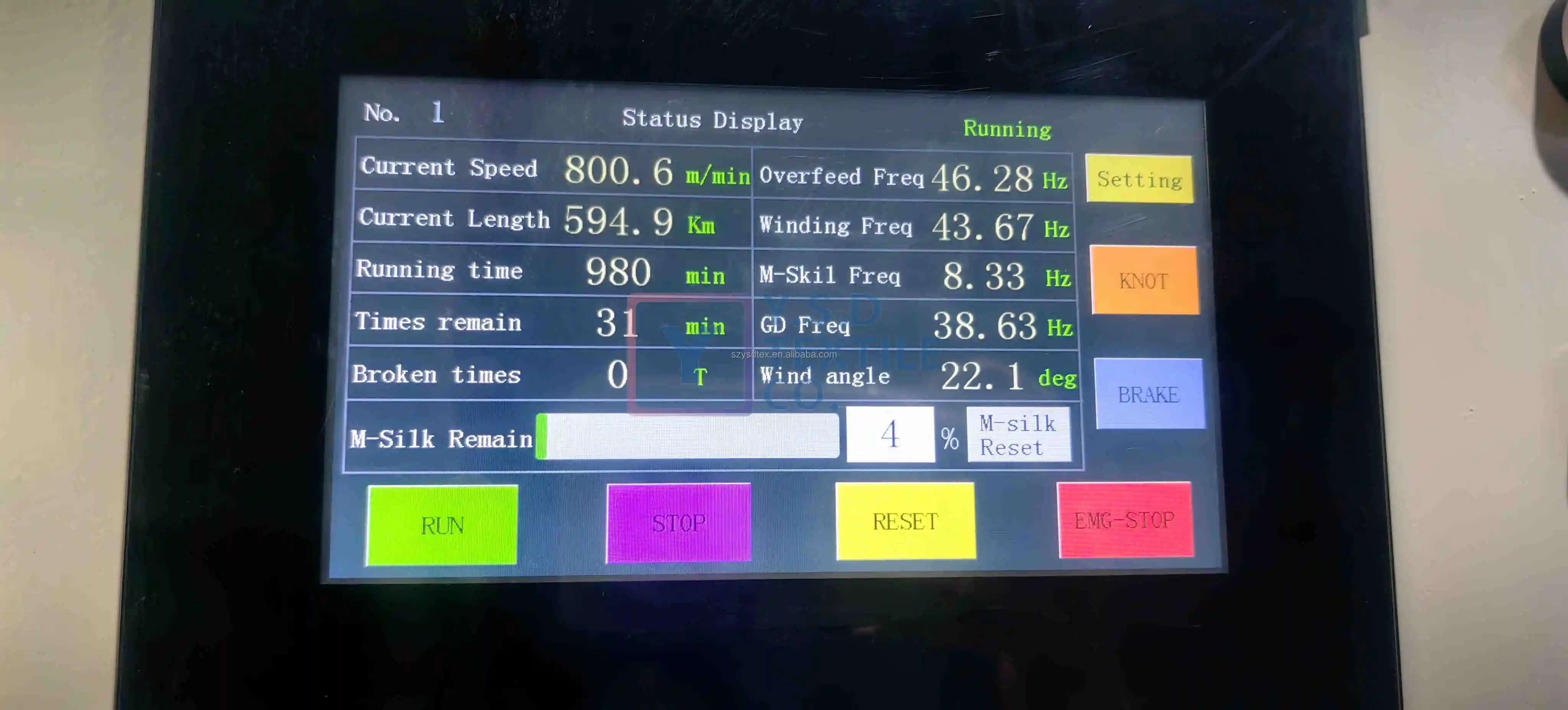

6. Easy control system

Delta motors, English control system

Certifications

Company Profile

Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win.

Exhibition

FAQ

1. How about production time?

Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term?

T/T 3/7 before delivery, LC at sight

3. How about production quantity?

Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine?

Normally run 800-1000m/min

5. How about electric match?

Use Delta motor, running power about 2kw, start power 1.5kw
