High-Speed Nylon Polyester Mother Yarn Splitting Machine New Motor Textile Machinery Manufacturing Plant Rolling Paper Tube

ProfixM

Introducing the High-Speed Nylon Polyester Mother Yarn Splitting Machine – the latest addition to our textile machinery manufacturing plant. This machine is equipped with a new motor that ensures exceptional performance and speed, making it a must-have for any textile production facility.

Made with premium quality materials, this yarn splitting machine is designed to deliver excellent results every time. Its sturdy construction offers durability and stability, enabling it to withstand the rigors of continuous use in a manufacturing environment.

With the ability to process both nylon and polyester yarns, this machine is versatile and suitable for a wide range of textile applications. Whether you are producing fabrics, garments, or other textile products, the ProfixM High-Speed Nylon Polyester Mother Yarn Splitting Machine will help you streamline your production process and achieve superior results.

One of the most noteworthy features of this profixM machine is its high-speed motor. With a powerful and efficient motor, this yarn splitting machine can process large quantities of yarn quickly and accurately, ensuring fast and efficient production times.

Another advantage of this machine is its customizable settings, which can be adjusted to meet the specific requirements of your production process. Whether you need to split your yarn into smaller or larger sizes, this machine has the flexibility to accommodate your needs.

Additionally, the ProfixM High-Speed Nylon Polyester Mother Yarn Splitting Machine is easy to operate and maintain, with simple controls and minimal maintenance requirements, making it an ideal choice for businesses of all sizes.

To ensure seamless integration into your production process, this yarn splitting machine is equipped with rolling paper tube capabilities. This feature enables you to produce rolled yarns, which can be conveniently transported and stored.

The ProfixM High-Speed Nylon Polyester Mother Yarn Splitting Machine is a reliable and efficient solution for your textile production needs. Its durable construction, high-speed motor, customizable settings, and rolling paper tube capability make it a versatile machine that will help you achieve superior results. Invest in this machine today and take your textile production to the next level.

Product Description

Specification

item	value
product	Machine
material capabilities	Nylon and polyester mono yarn
weight (kg)	600
machine type	Mother yarn splitting machine
video outgoing-inspection	Provided
machinery test report	Provided
core components	Engine
place of origin	China
	Jiangsu
warranty	1 Year
Name	Mother yarn splitting machine
Winding coil skeleton	95-130x230mm
Splitting tension	0.6g/d- 1.0g/d
Winding	120*2300mm
splitting speed	200D/10F can reach 800/min
Forming device	100mm-460mm
Spindle motor	1kw
Wire feed motor	0.24kw
Forming motor	0.02kw
Spitting motor	0.02kw

Details Images

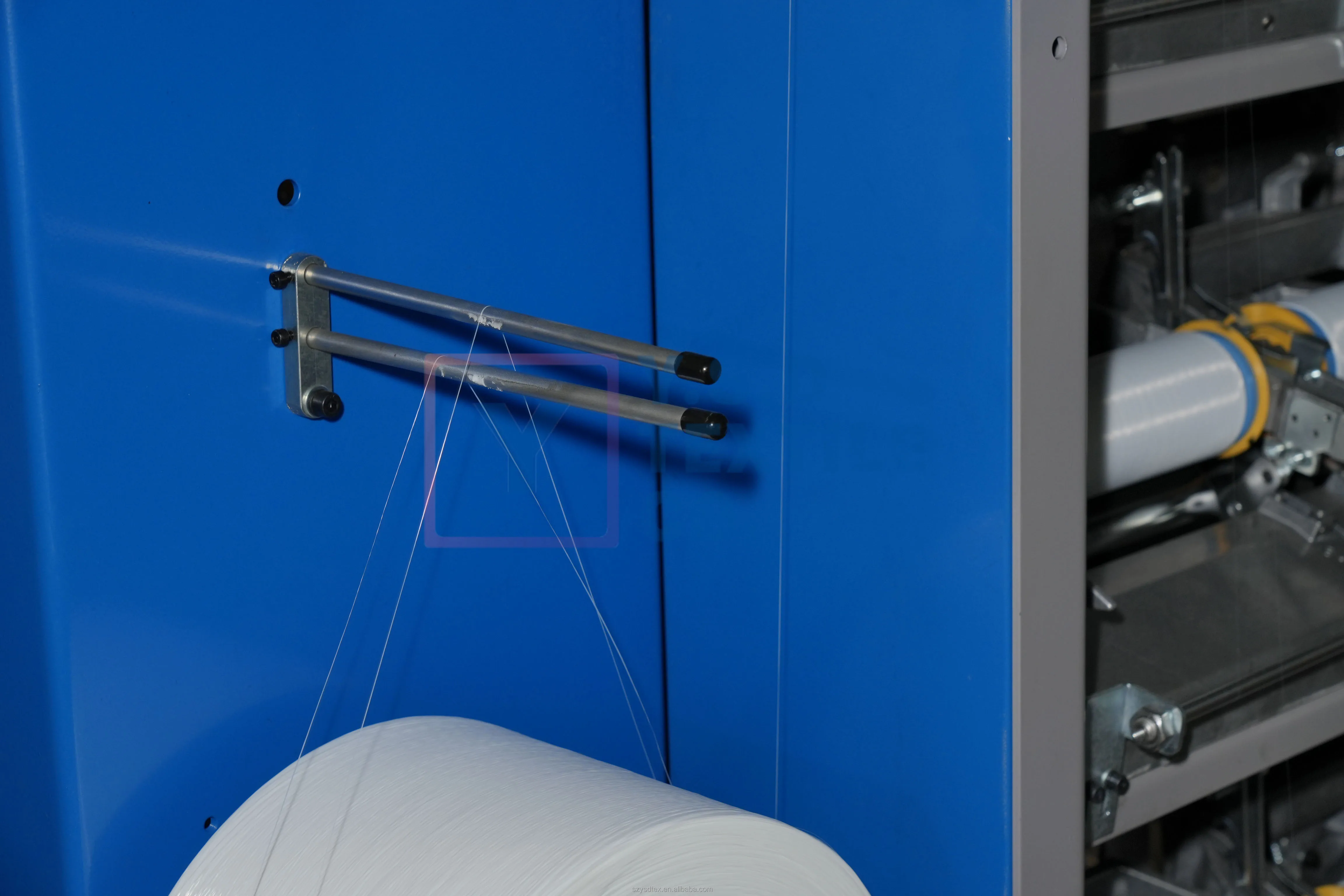

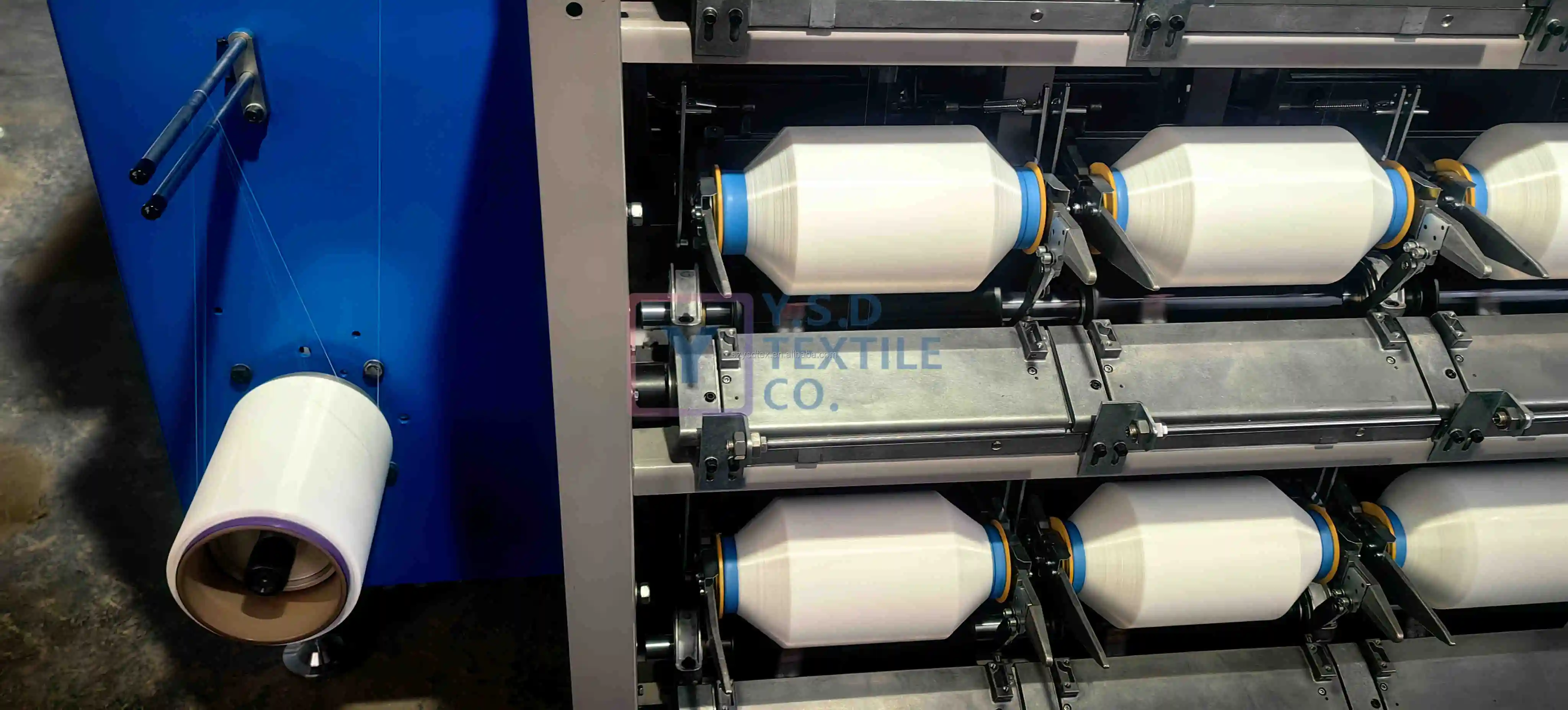

Mother yarn splitting machine rolling on paper bobbin

1. stable tension on each splitted bobbin from beginning to end

2. use normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size, 12kg -- 24kg can run

4. running speed 800-900 m/min

5. friction drum control each spindle, no need each splitted bobbin same size, according to your require decide each bobbin size during splitting

spindles	height	length	width
24	1900mm	2000mm	1000mm

PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP

11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

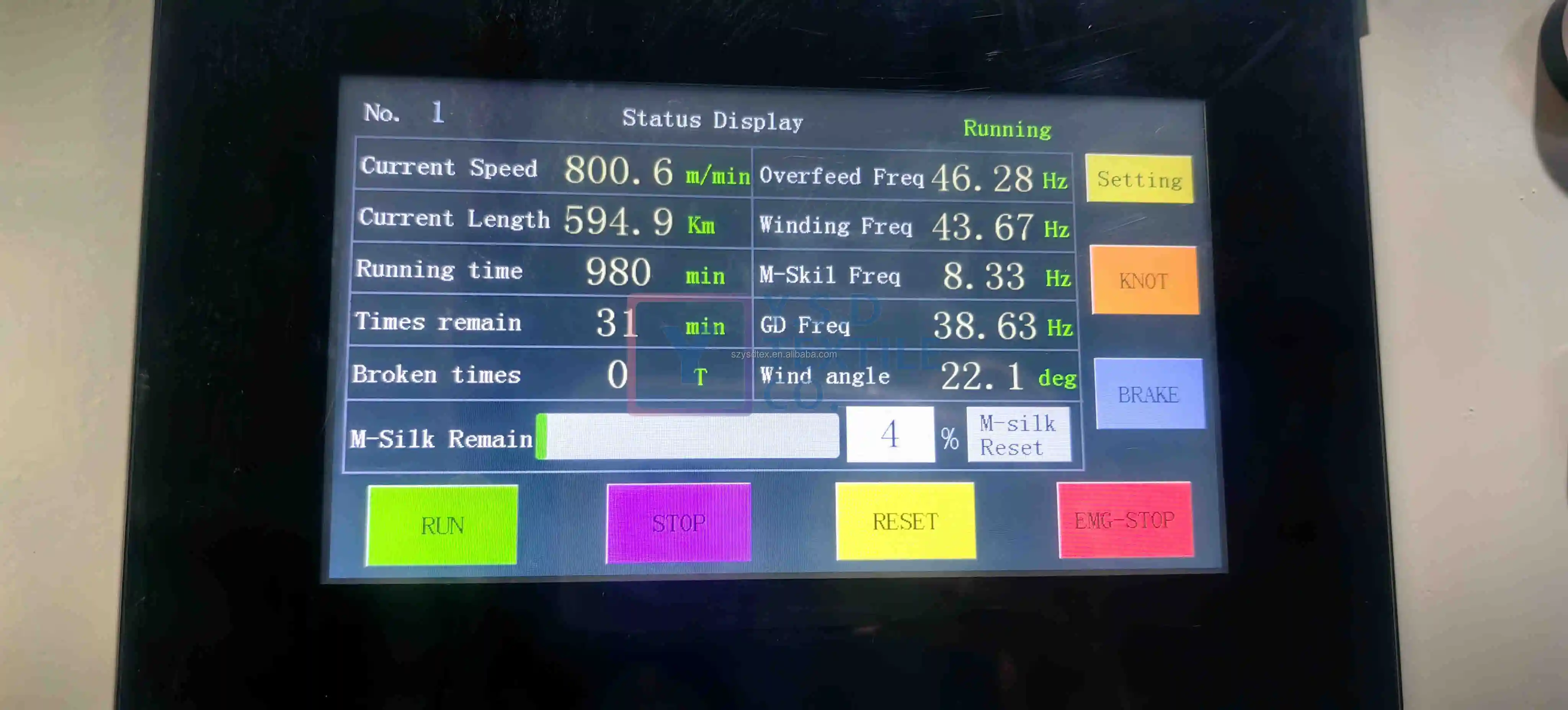

6. Easy control system

Delta motors, English control system

Certifications

Company Profile

Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win.

Exhibition

FAQ

1. How about production time?

Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term?

T/T 3/7 before delivery, LC at sight

3. How about production quantity?

Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine?

Normally run 800-1000m/min

5. How about electric match?

Use Delta motor, running power about 2kw, start power 1.5kw
