Highly Automatic Nylon Polyester Mother Yarn Splitting Machine Rolling Paper Tube Textile Machinery Manufactured Premium Machine

ProfixM

Introducing the Highly Automatic Nylon Polyester Mother Yarn Splitting Machine Rolling Paper Tube Textile Machinery - the ultimate solution for textile manufacturers to increase productivity, efficiency, and profits.

This premium machine is manufactured with the latest technology and features a highly automatic system that streamlines the yarn splitting process. With its robust design and durable construction, the ProfixM machine assures stable and consistent performance for years to come.

This textile machinery is specifically designed to split Nylon and Polyester Mother Yarns, which are widely used in various textile products. The machine is designed to split the mother yarn into smaller yarns, which makes it easier to weave and stitch the fabric. With the profixM  machine, you can achieve accurate and precise yarn splitting, which results in high-quality fabric and reduces textile waste.

The ProfixM machine comes with a rolling paper tube system that enables you to roll the split yarns into a tube. This feature helps keep the yarn organized and prevents it from tangling. The machine's rolling paper tube system is fully automated and ensures you get an even and consistent rolling of the yarn.

The ProfixM machine is designed with ease of use in mind. It has a user-friendly interface and comes with simple controls that allow the operator to adjust the machine's settings quickly. Moreover, the machine is equipped with safety features that protect the operator from any potential hazards.

The ProfixM machine is a valuable addition to any textile manufacturing facility. Its highly automated system not only saves time but also reduces labor costs, making it a cost-effective solution for businesses of all sizes. The machine's precise yarn splitting and rolling capabilities ensure that you can produce high-quality textile products consistently.

If you're looking for a highly advanced and reliable machine for yarn splitting and rolling, the ProfixM Highly Automatic Nylon Polyester Mother Yarn Splitting Machine Rolling Paper Tube Textile Machinery is the perfect choice for you. With its premium features and superior performance, this machine is guaranteed to exceed your expectations and provide you with the best value for your investment.

Product Description

Specification

item	value
product	Machine
material capabilities	Nylon and polyester mono yarn
weight (kg)	600
machine type	Mother yarn splitting machine
video outgoing-inspection	Provided
machinery test report	Provided
core components	Engine
place of origin	China
	Jiangsu
warranty	1 Year
Name	Mother yarn splitting machine
Winding coil skeleton	95-130x230mm
Splitting tension	0.6g/d- 1.0g/d
Winding	120*2300mm
splitting speed	200D/10F can reach 800/min
Forming device	100mm-460mm
Spindle motor	1kw
Wire feed motor	0.24kw
Forming motor	0.02kw
Spitting motor	0.02kw

Details Images

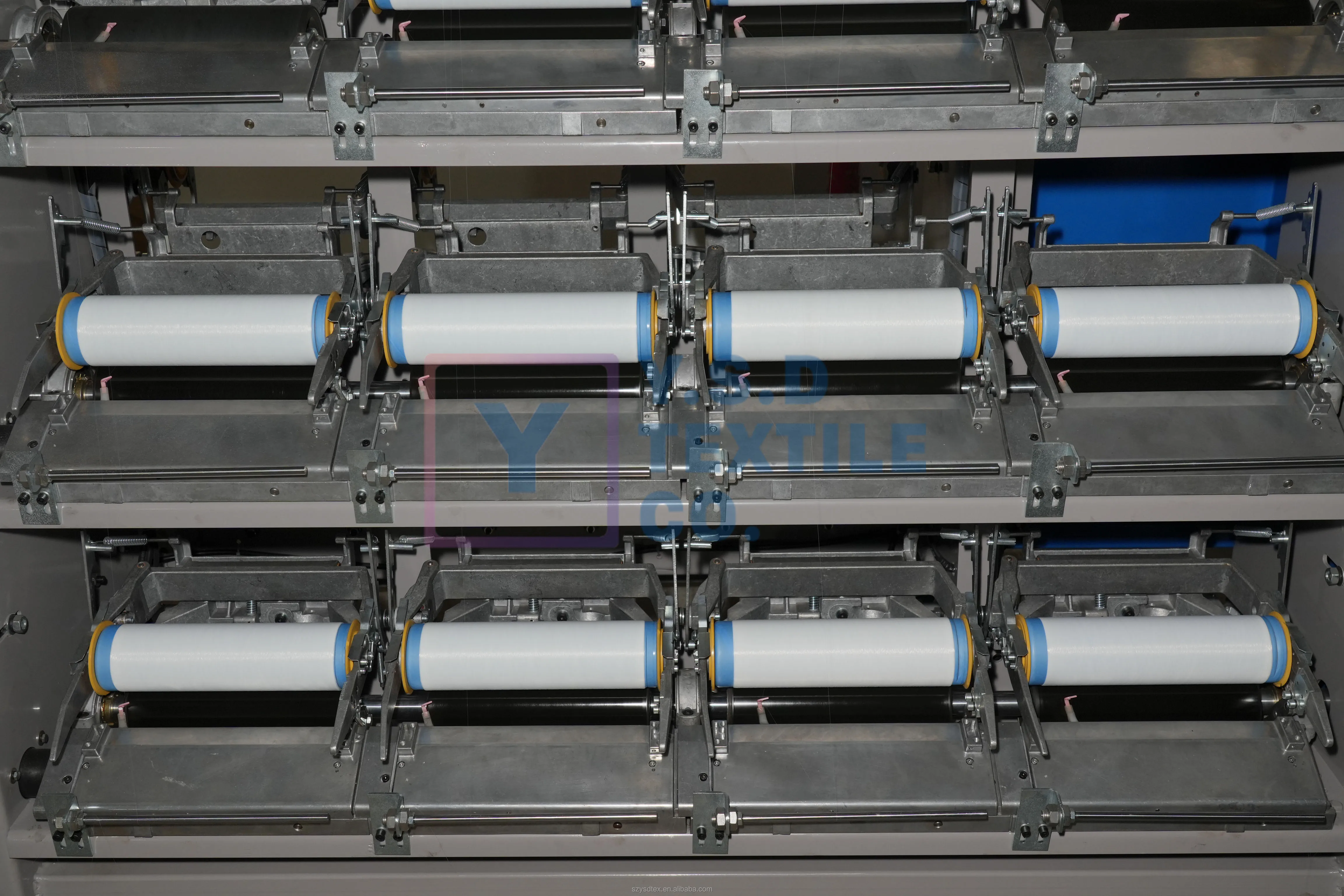

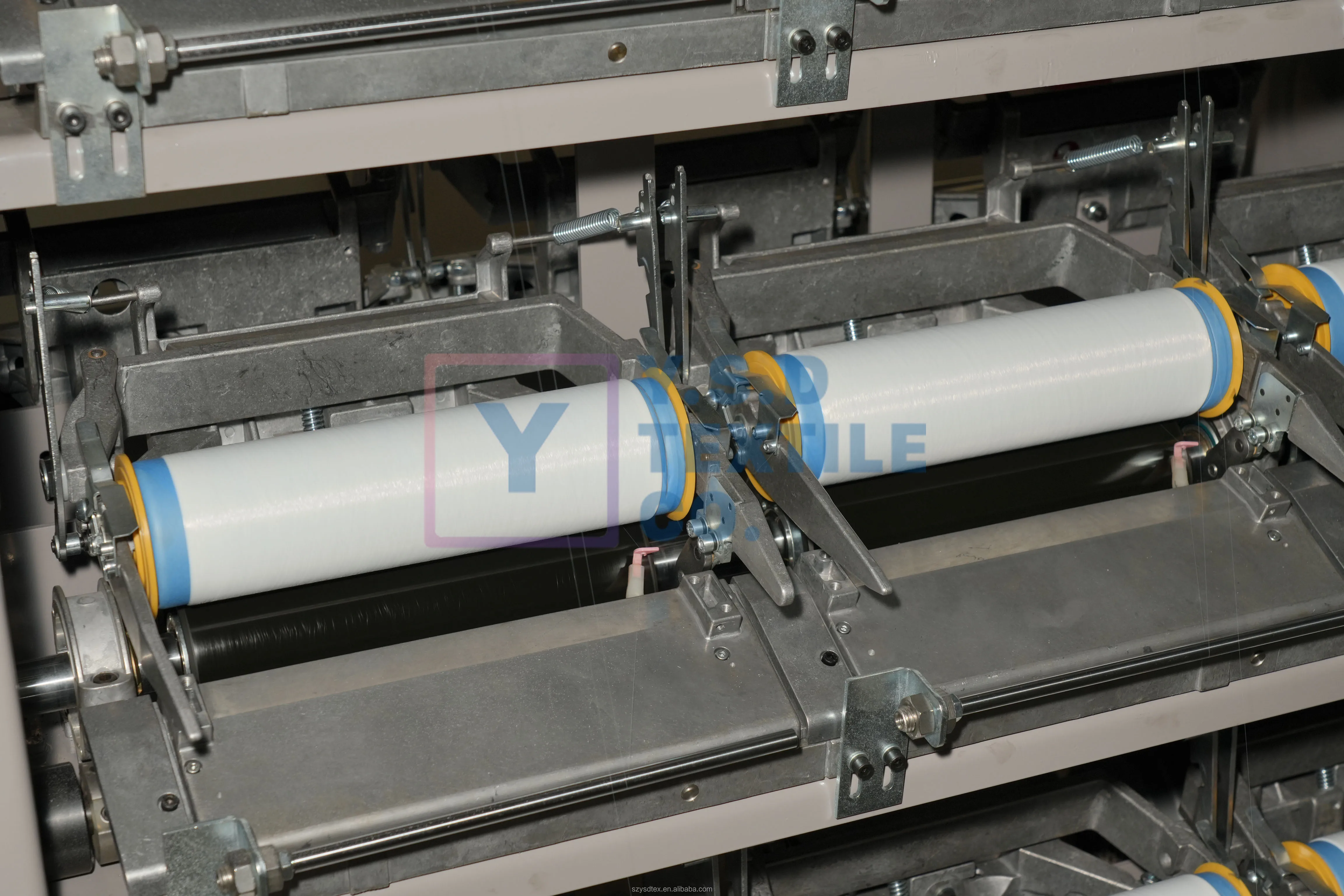

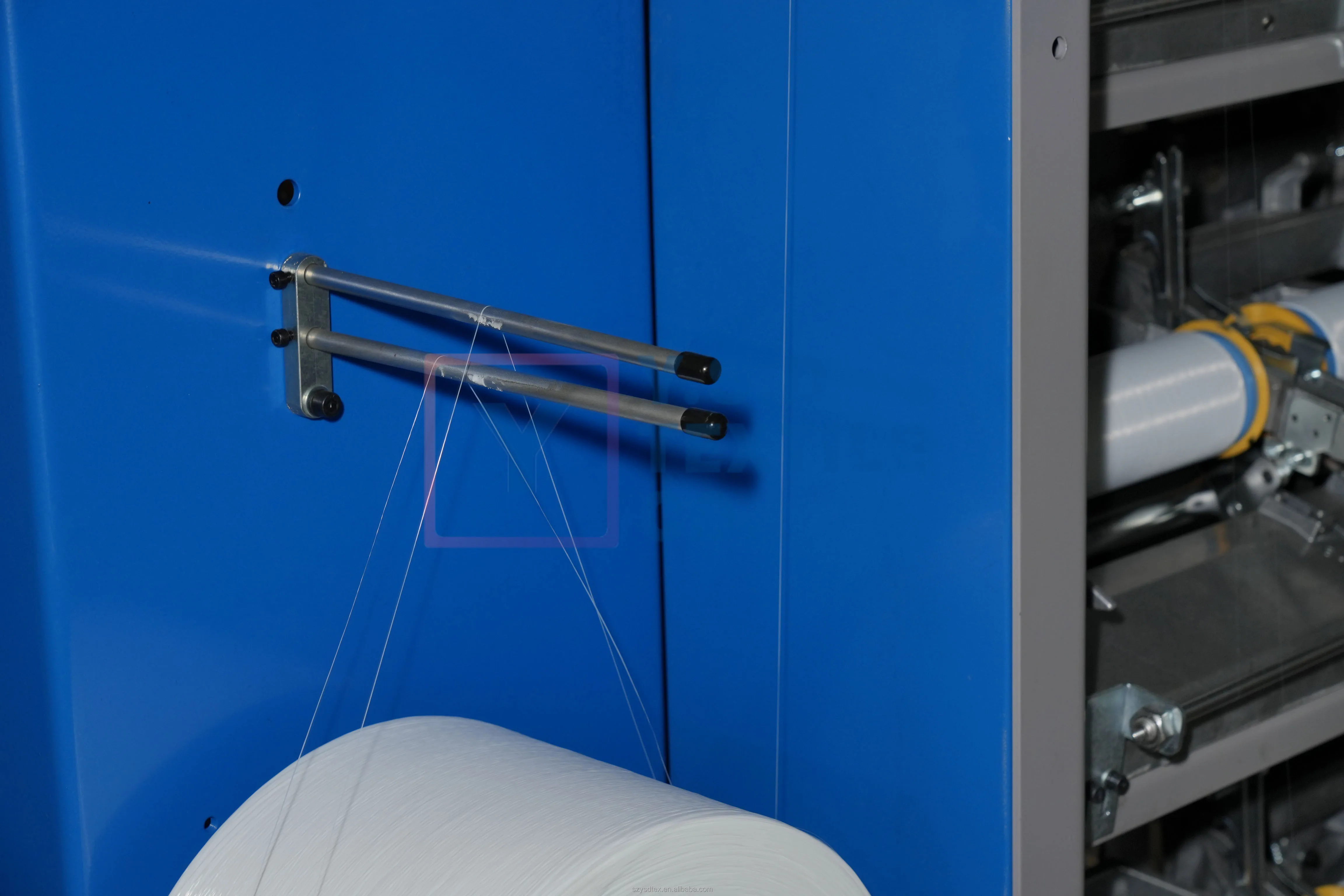

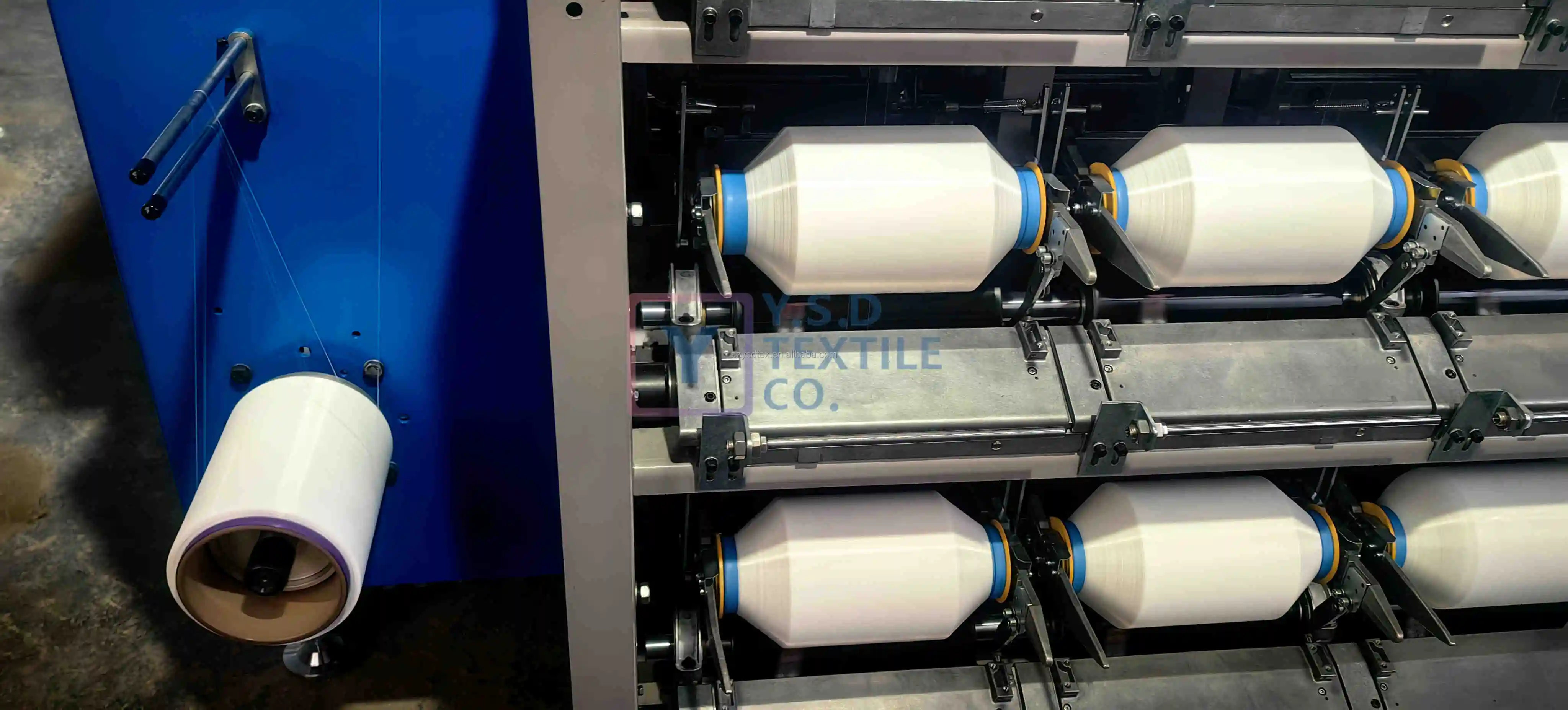

Mother yarn splitting machine rolling on paper bobbin

1. stable tension on each splitted bobbin from beginning to end

2. use normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size, 12kg -- 24kg can run

4. running speed 800-900 m/min

5. friction drum control each spindle, no need each splitted bobbin same size, according to your require decide each bobbin size during splitting

spindles	height	length	width
24	1900mm	2000mm	1000mm

PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP

11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

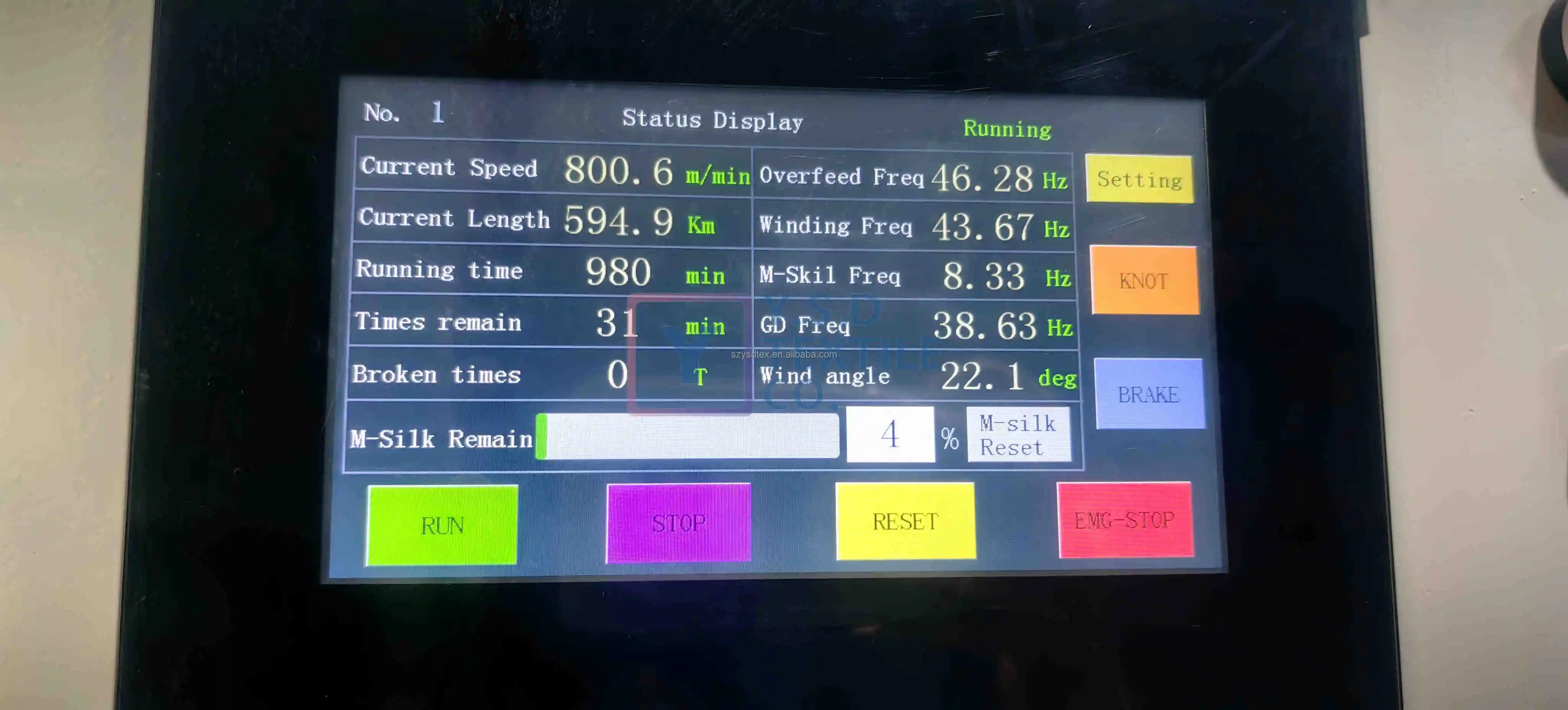

6. Easy control system

Delta motors, English control system

Certifications

Company Profile

Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win.

Exhibition

FAQ

1. How about production time?

Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term?

T/T 3/7 before delivery, LC at sight

3. How about production quantity?

Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine?

Normally run 800-1000m/min

5. How about electric match?

Use Delta motor, running power about 2kw, start power 1.5kw
