Manufacturer Nylon Polyester Mother Yarn Splitting Machine for Manufacturing Plants with Rolling Paper

The profixM’s Nylon Polyester Mother Yarn Splitting Machine is the ultimate solution for manufacturers who want to increase their production efficiency. This state-of-the-art machine is specially designed to split nylon and polyester yarns accurately for the production of high-quality products.

Featuring rolling paper, the profixM’s machine guarantees a smooth and precise splitting process. It is also designed with safety in mind, ensuring a safe working environment for operators.

The machine is made of high-quality materials to ensure durability and reliability during the production process. You can be assured that the profixM’s Nylon Polyester Mother Yarn Splitting Machine will last for years, providing multiple returns on investment.

The machine is easy to use and maintain, making it an excellent choice for both large and small manufacturing plants. You can easily integrate it into your production line, thus increasing your output without compromising on quality.

The profixM’s Nylon Polyester Mother Yarn Splitting Machine is a product of rigorous research and development to meet the changing demands of the manufacturing industry. It is versatile and can handle different types of nylon and polyester yarns with ease.

The machine uses advanced technology to guarantee accuracy and consistency in yarn splitting, resulting in high-quality products that meet customer expectations. You can rely on the profixM’s machine to provide excellent results and improve your brand reputation.

The product comes with a service guarantee, and we provide technical support to ensure that your machine operates at peak performance. You can easily troubleshoot any issues and get expert advice on how to maximize your machine’s potential.

The profixM’s Nylon Polyester Mother Yarn Splitting Machine is the right choice for manufacturers who want to improve productivity and efficiency in their operations. It is a high-performance product that delivers excellent results, meets safety standards, and provides long-lasting benefits. Invest in the profixM’s Nylon Polyester Mother Yarn Splitting Machine today and take your manufacturing plant to the next level

Product Description

Specification

item	value
product	Machine
material capabilities	Nylon and polyester mono yarn
Weight (kg)	600
machine type	Mother yarn splitting machine
Video outgoing-inspection	Provided
machinery test report	Provided
core components	Engine
place of origin	China
	Jiangsu
warranty	1 Year
Name	Mother yarn splitting machine
Winding coil skeleton	95-130x230mm
Splitting tension	0.6g/d- 1.0g/d
Winding	120*2300mm
splitting speed	200D/10F can reach 800/min
Forming device	100mm-460mm
Spindle motor	1kw
Wire feed motor	0.24kw
Forming motor	0.02kw
Spitting motor	0.02kw

Details Images

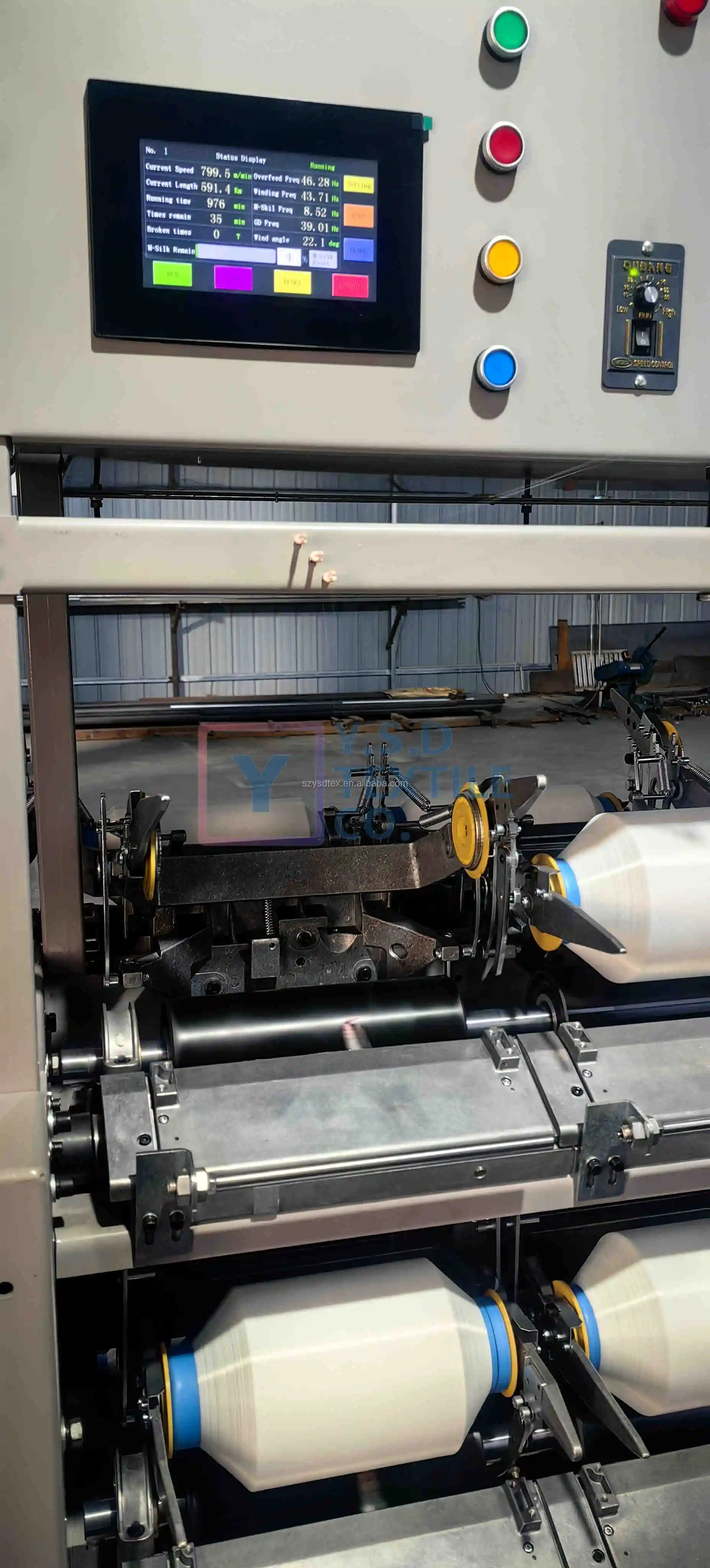

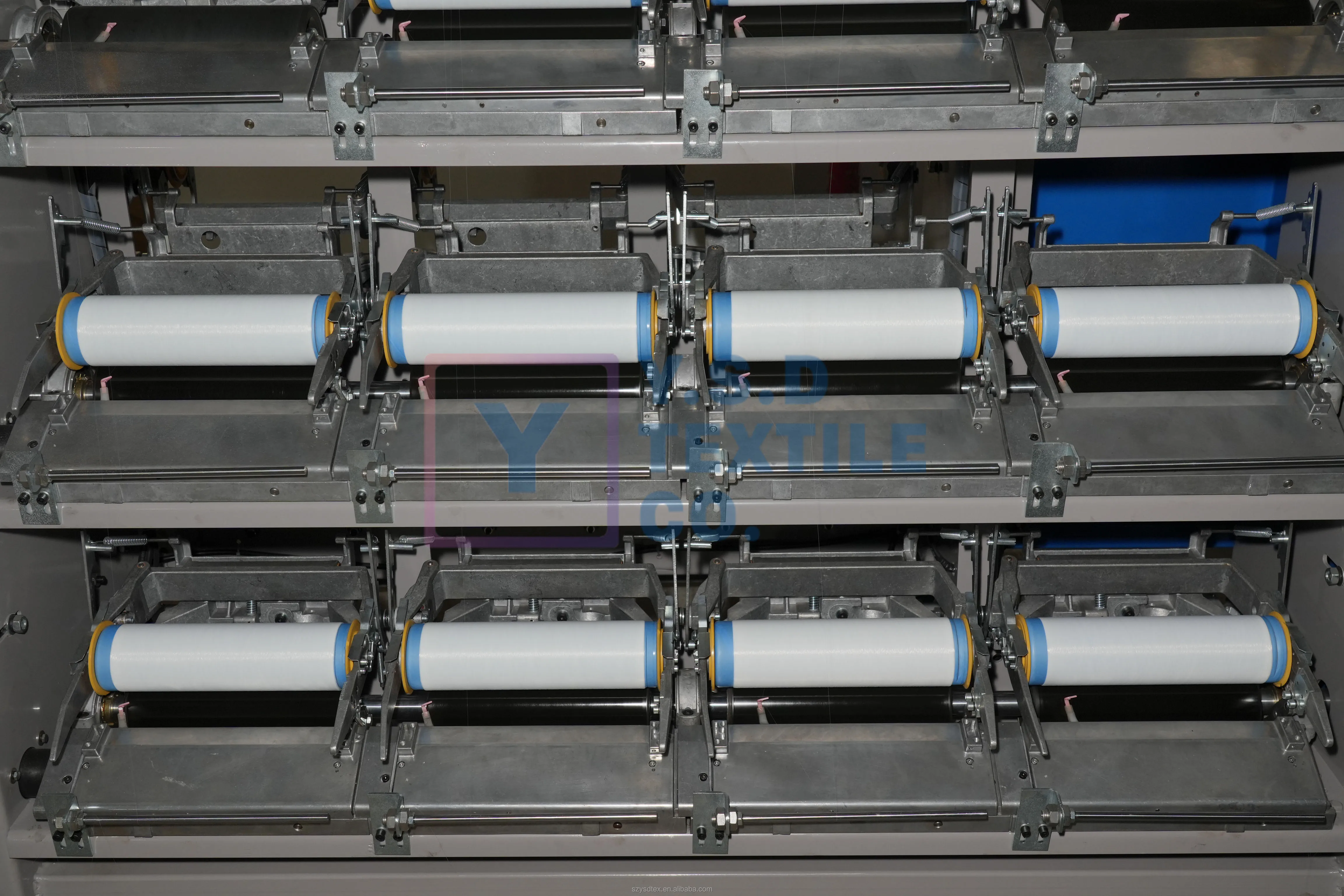

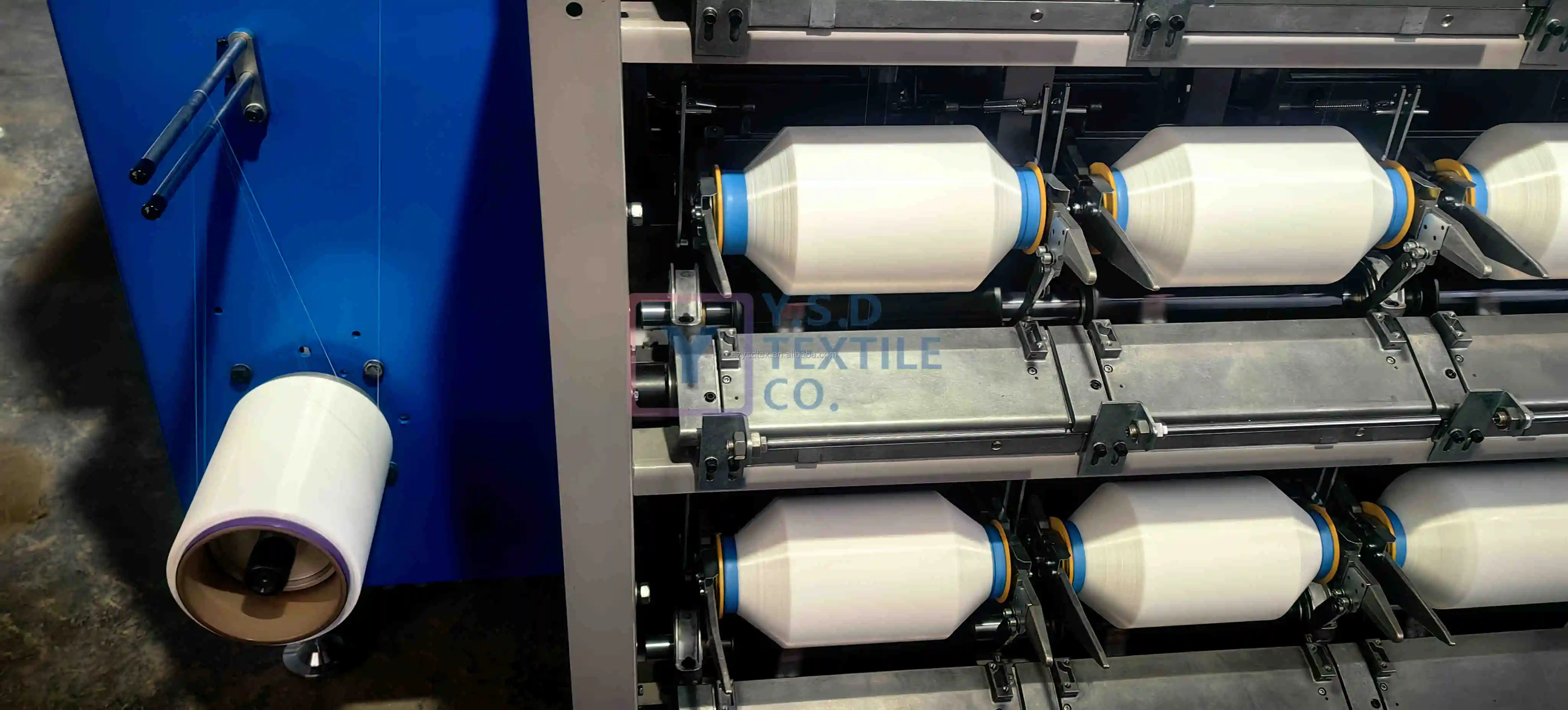

Mother yarn splitting machine rolling on paper bobbin

1. stable tension on each Splitted bobbin from beginning to end

2. use normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size, 12kg -- 24kg can run

4. running speed 800-900 m/min

5. friction drum control each spindle, no need each Splitted bobbin same size, according to your require decide each bobbin size during splitting

spindles	height	length	width
24	1900mm	2000mm	1000mm

PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP

11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

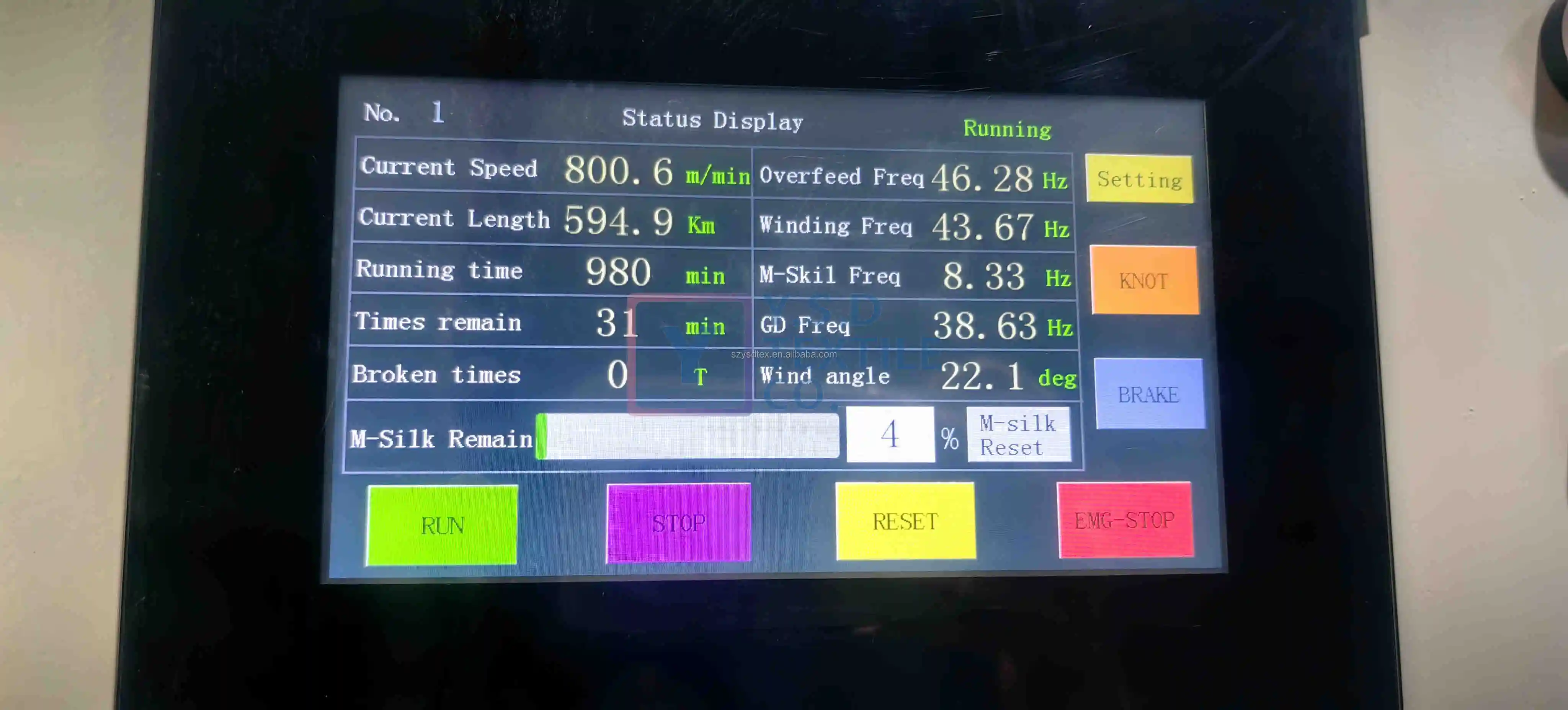

6. Easy control system

Delta motors, English control system

Certifications

Company Profile

Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win

Exhibition

FAQ

1. How about production time

Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term

T/T 3/7 before delivery, LC at sight

3. How about production quantity

Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine

Normally run 800-1000m/min

5. How about electric match

Use Delta motor, running power about 2kw, start power 1.5kw
