Mother Yarn Warping Machine Splitting Manufacturing Plants Rolling Paper Tube Core Component Motor Included

ProfixM

Introducing the Mother Yarn Warping Machine - the latest innovation in the textile industry. This exceptional machine is designed to help you split, warp, and spin all types of yarn fibers with ease. At its core, the Mother Yarn Warping Machine is manufactured with state-of-the-art technology and top-of-the-line materials to ensure the highest standards of quality and performance.

One of the key features of the profixM Mother Yarn Warping Machine is its ability to split yarn fibers accurately and quickly. With this machine, you can split yarn fibers with precision, ensuring that the strands are of the same size and length. This will save you a lot of time, and you won't have to worry about the quality of your finished products.

In addition, the Mother Yarn Warping Machine is equipped with an advanced rolling paper tube core component that makes the warping process even smoother. This component not only holds the yarn in place but also stretches and compresses it to provide the perfect tension for your project. The result is a uniform and consistent yarn with an even twist throughout.

Moreover, the ProfixM Mother Yarn Warping Machine comes with a powerful motor that delivers high-speed and efficient performance. With this motor, you can warp a significant number of yarn fibers in a short time. You won't have to worry about the motor getting bogged down as it works perfectly and provides consistent performance each time.

This machine is an excellent investment for anyone in the textile industry. It is suitable for both small and large-scale textile production, and it will save you time, energy, and money. The ProfixM Mother Yarn Warping Machine is easy to install and operate, making it accessible to everyone, regardless of skill level.

If you want to take your textile production to the next level, the ProfixM Mother Yarn Warping Machine is a must-have product. With its impeccable design and outstanding features, you can trust that you'll never go wrong with this machine for your textile production needs. Get one today, and experience the ease and convenience of producing high-quality yarn with minimal effort.

Product Description

Specification

item	value
product	Machine
material capabilities	Nylon and polyester mono yarn
weight (kg)	600
machine type	Mother yarn splitting machine
video outgoing-inspection	Provided
machinery test report	Provided
core components	Engine
place of origin	China
	Jiangsu
warranty	1 Year
Name	Mother yarn splitting machine
Winding coil skeleton	95-130x230mm
Splitting tension	0.6g/d- 1.0g/d
Winding	120*2300mm
splitting speed	200D/10F can reach 800/min
Forming device	100mm-460mm
Spindle motor	1kw
Wire feed motor	0.24kw
Forming motor	0.02kw
Spitting motor	0.02kw

Details Images

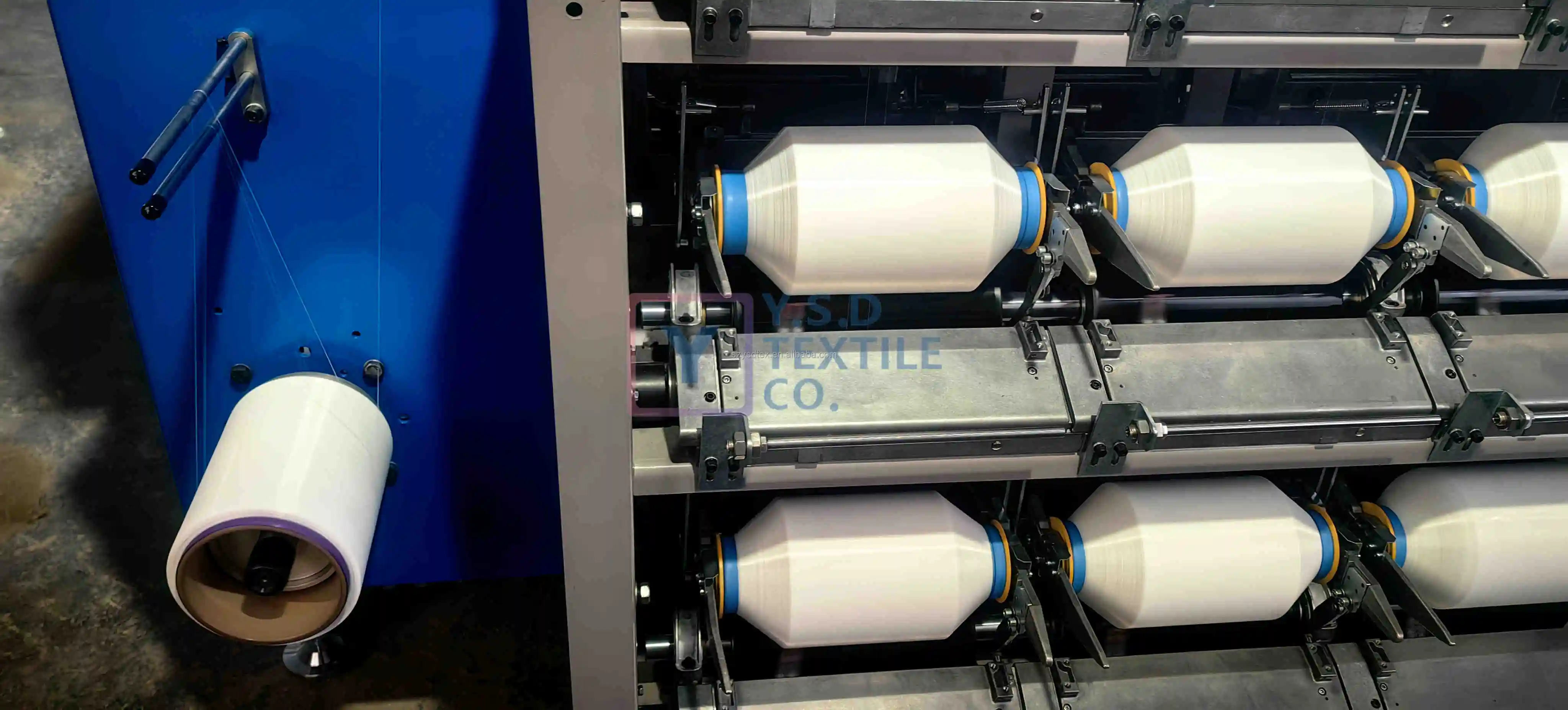

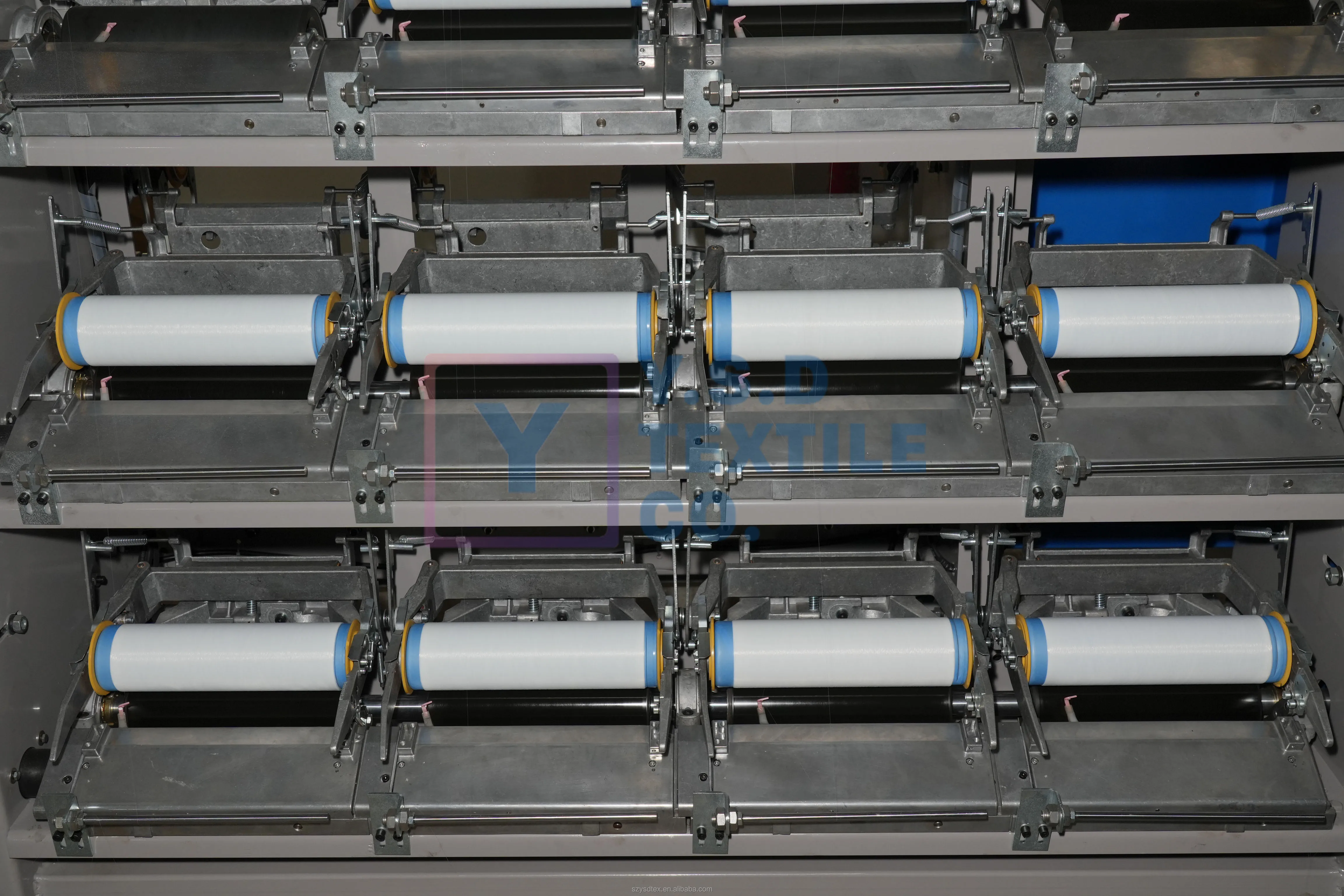

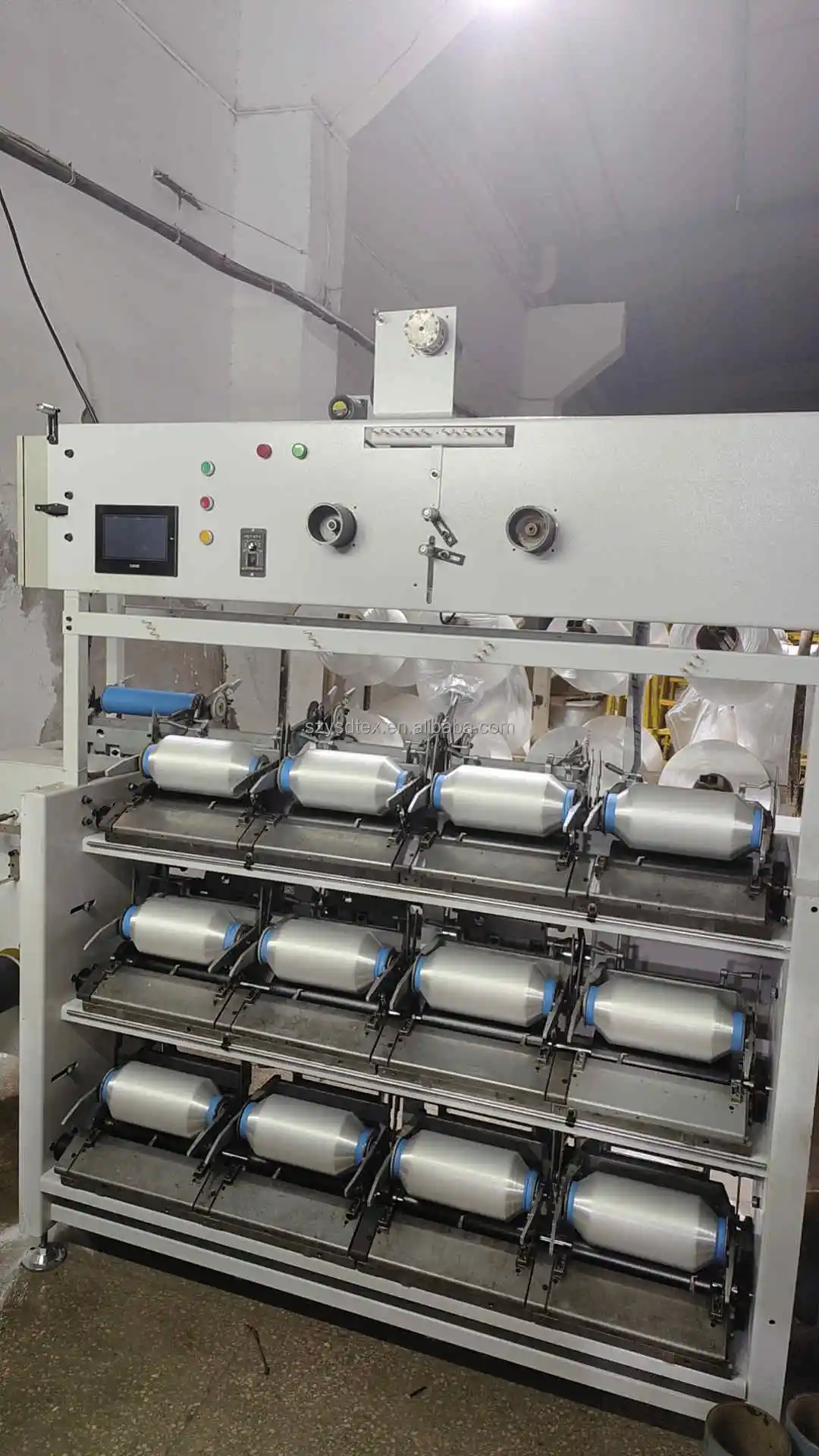

Mother yarn splitting machine rolling on paper bobbin

1. stable tension on each splitted bobbin from beginning to end

2. use normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size, 12kg -- 24kg can run

4. running speed 800-900 m/min

5. friction drum control each spindle, no need each splitted bobbin same size, according to your require decide each bobbin size during splitting

spindles	height	length	width
24	1900mm	2000mm	1000mm

PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP

11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

6. Easy control system

Delta motors, English control system

Certifications

Company Profile

Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win.

Exhibition

FAQ

1. How about production time?

Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term?

T/T 3/7 before delivery, LC at sight

3. How about production quantity?

Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine?

Normally run 800-1000m/min

5. How about electric match?

Use Delta motor, running power about 2kw, start power 1.5kw
