Splitting machine

Home >  Products  >  Splitting machine

All

Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants

Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants

Inquiry
  • Overview
  • Inquiry
  • Related Products
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Mother Yarn Warping Machine with Included Motor Textile Industry Paper Tube Core Component for Splitting Manufacturing Plants
Product Description
Specification
item
value
product
Machine
material capabilities
Nylon and polyester mono yarn
weight (kg)
600
machine type
Mother yarn splitting machine
video outgoing-inspection
Provided
machinery test report
Provided
core components
Engine
place of origin
China
Jiangsu
warranty
1 Year
Name
Mother yarn splitting machine
Winding coil skeleton
95-130x230mm
Splitting tension
0.6g/d- 1.0g/d
Winding
120*2300mm
splitting speed
200D/10F can reach 800/min
Forming device
100mm-460mm
Spindle motor
1kw
Wire feed motor
0.24kw
Forming motor
0.02kw
Spitting motor
0.02kw
Details Images

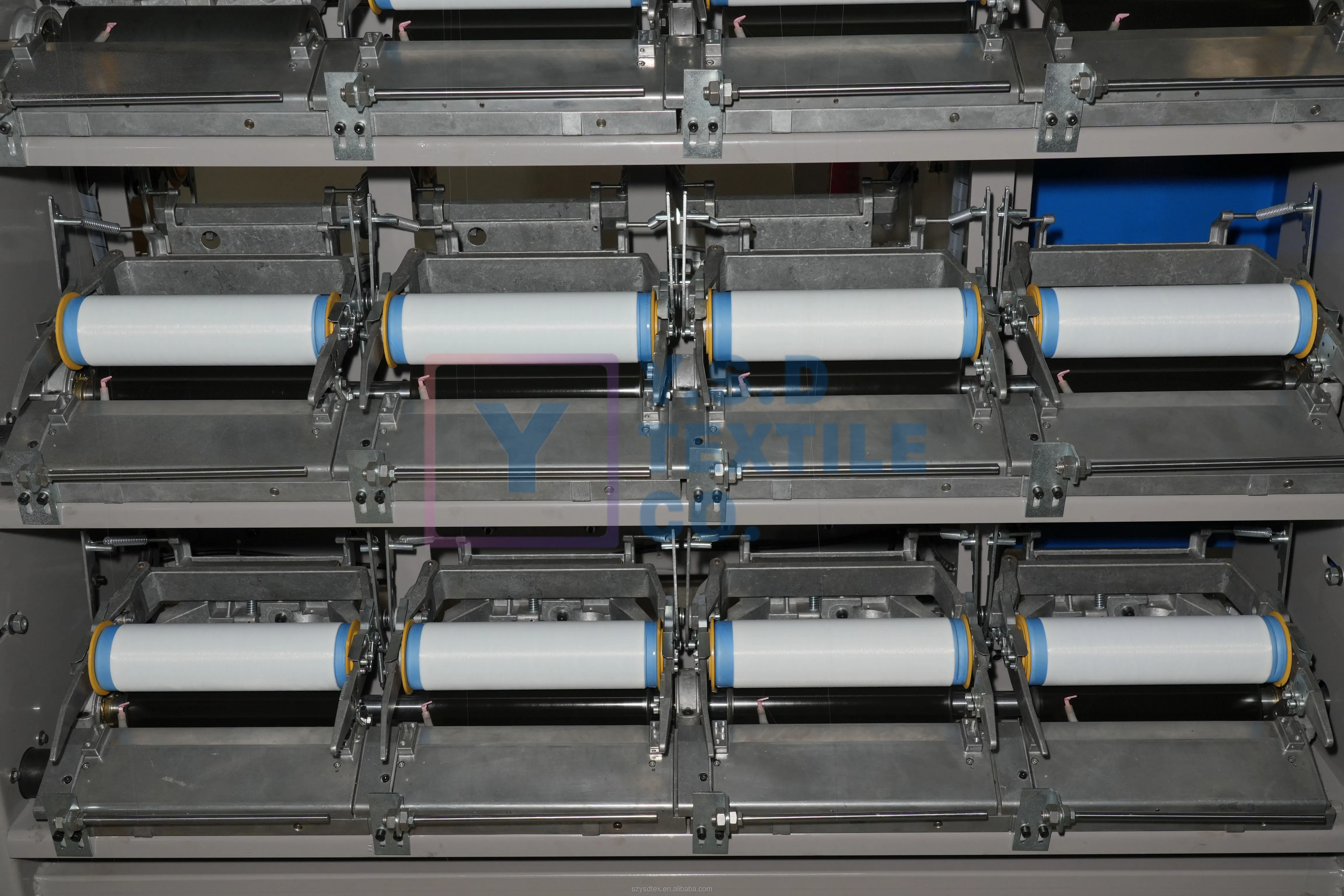

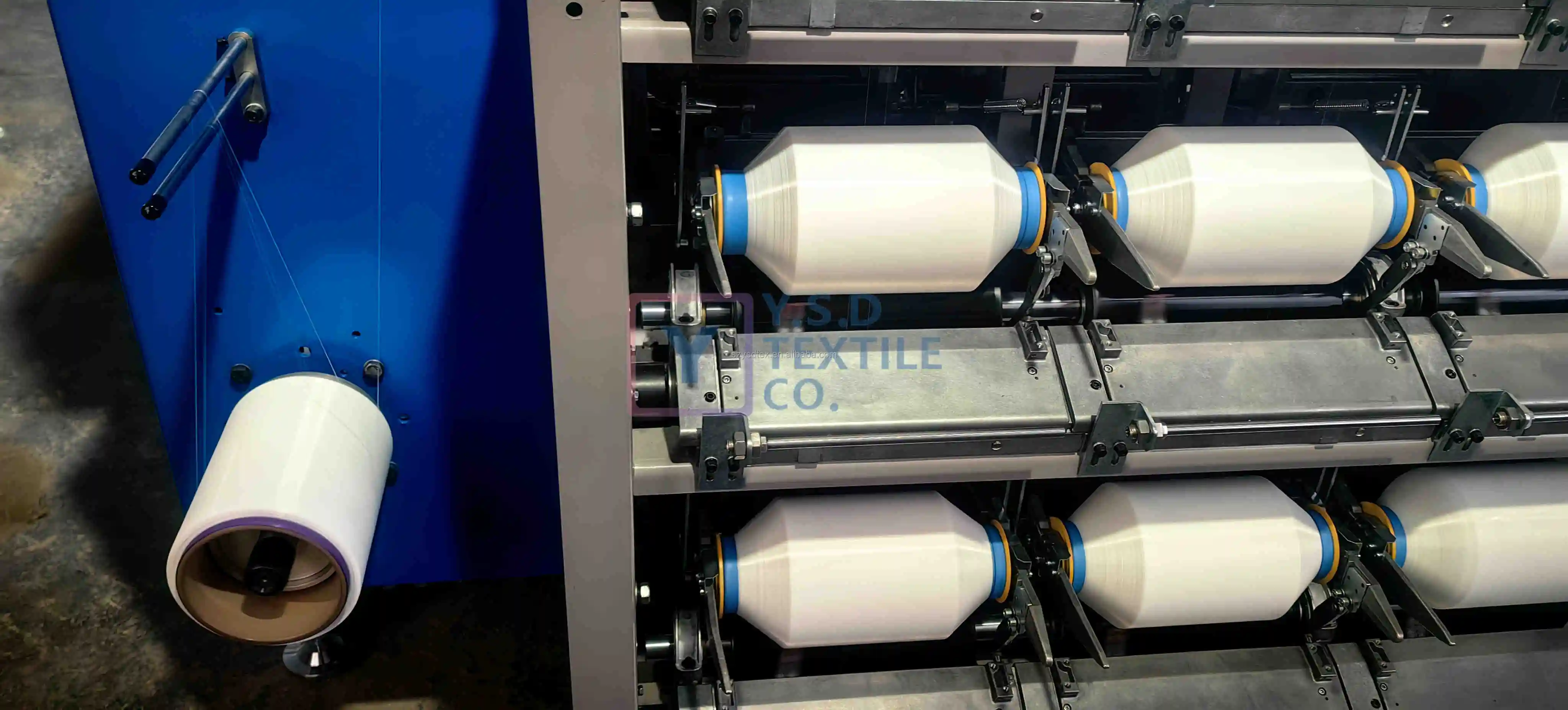

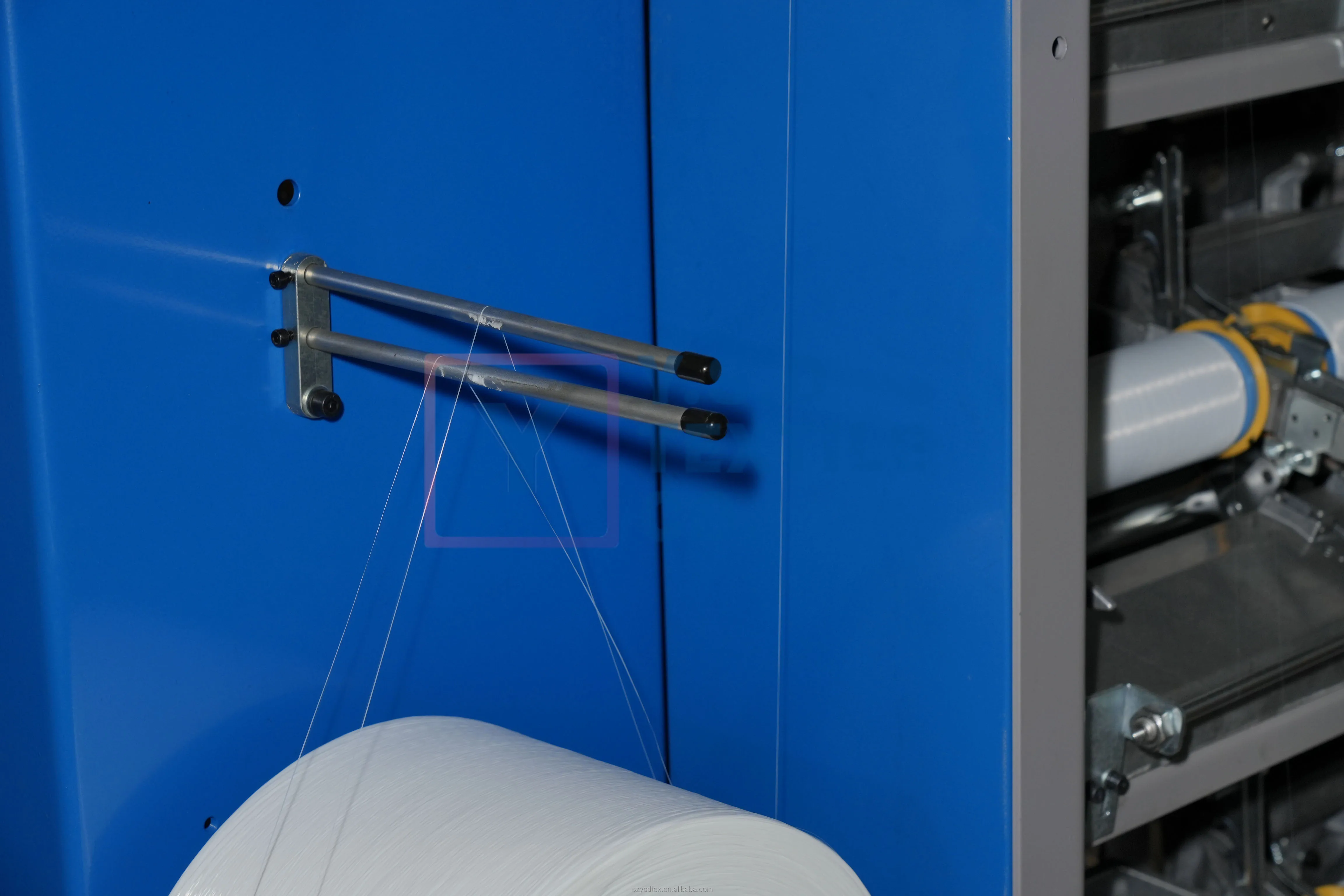

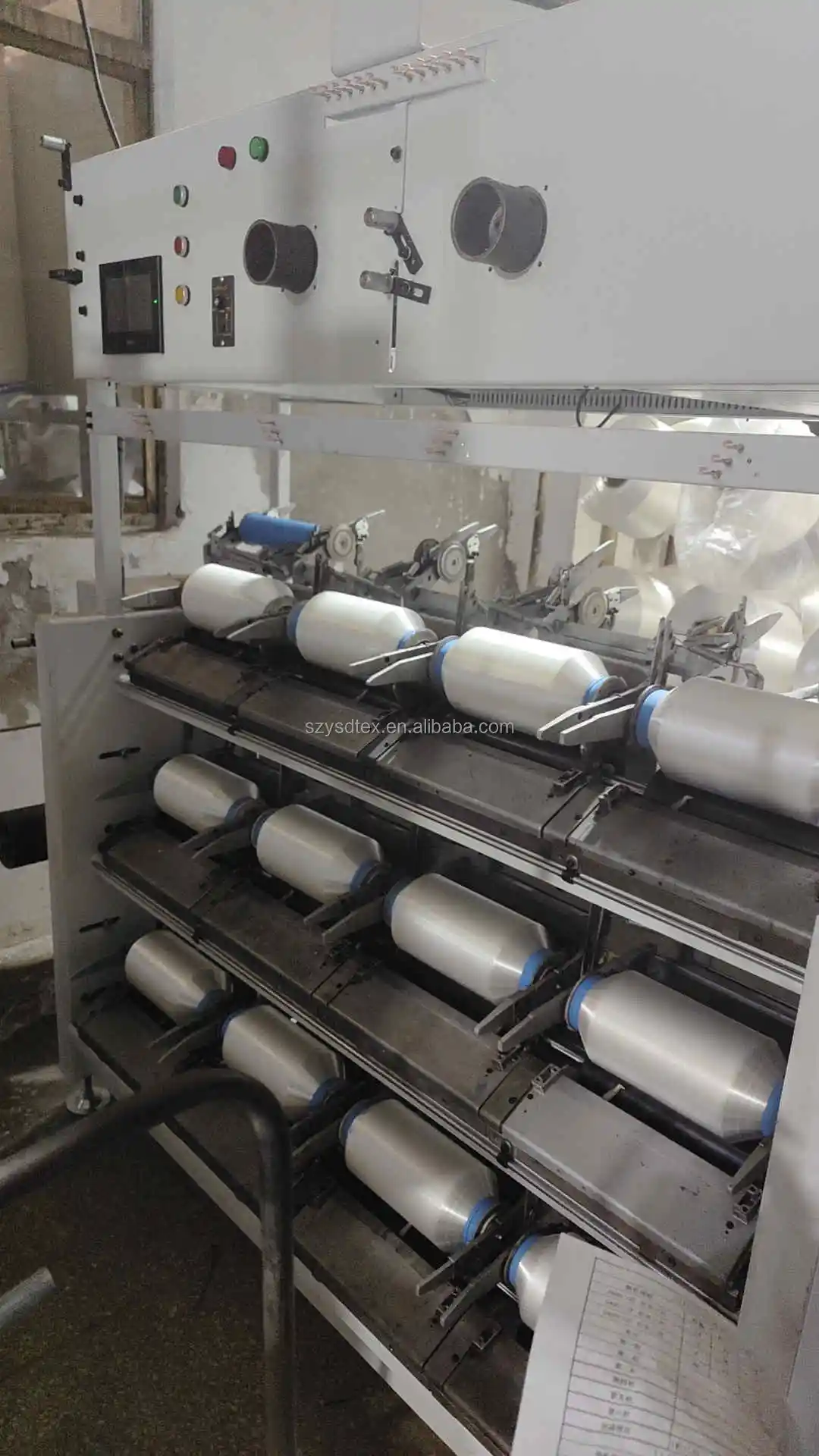

Mother yarn splitting machine rolling on paper bobbin
1. stable tension on each splitted bobbin from beginning to end

2. use normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size, 12kg -- 24kg can run

4. running speed 800-900 m/min

5. friction drum control each spindle, no need each splitted bobbin same size, according to your require decide each bobbin size during splitting
spindles
height
length
width
24
1900mm
2000mm
1000mm
PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP
11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

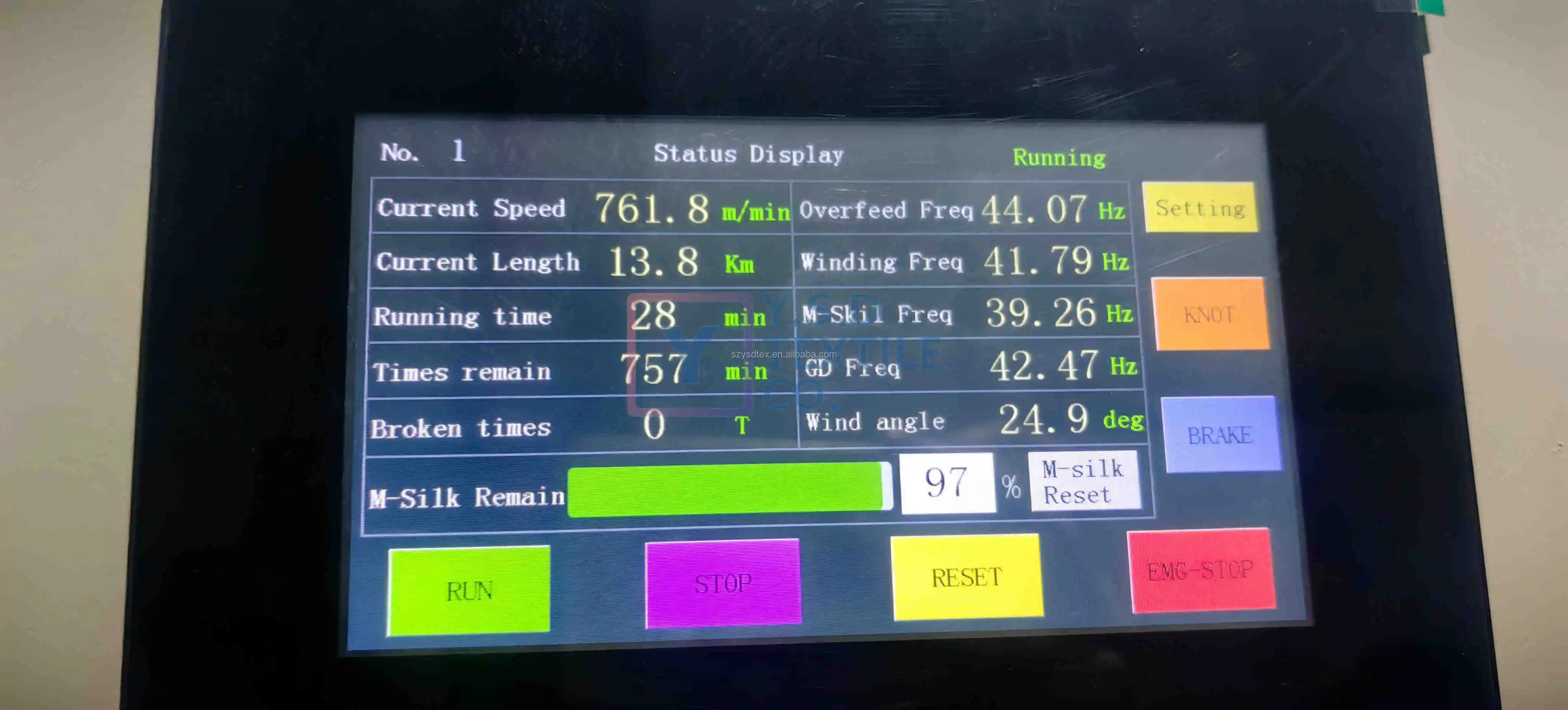

6. Easy control system

Delta motors, English control system
Certifications
Company Profile
Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win.
Exhibition
FAQ

1. How about production time?
Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term?
T/T 3/7 before delivery , LC at sight

3. How about production quantity?
Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine?
Normally run 800-1000m/min

5. How about electric match?
Use Delta motor, running power about 2kw, start power 1.5kw
