The New Nylon Polyester Mother Yarn Warping Machine Splitting Manufacturing Plants Rolling Paper Tube Core Component Motor Included is the perfect addition to any textile manufacturing plant. This state-of-the-art machine is designed to handle the most complex mother yarn warping processes with ease and precision. With its impressive performance features and solid construction, the ProfixM warping machine is an investment that will pay off for years to come.
One of the key features of this machine is its ability to handle both nylon and polyester materials. This versatile machine can handle multiple types of fibers, making it a great investment for textile companies that work with a variety of materials. With its advanced splitting technology, the ProfixM warping machine can efficiently split mother yarns of any size, delivering consistent results every time.
But the ProfixM warping machine is more than just a split mother yarn machine. It can also be used as a rolling paper tube core component machine. This profixM feature allows for a wider range of applications, making it even more versatile than most other textile manufacturing machines. With its advanced motor, the ProfixM warping machine can handle even the largest and heaviest paper tube cores with ease, ensuring maximum productivity and efficiency.
The ProfixM warping machine is designed with ease-of-use in mind. The machine comes with an intuitive user interface that makes operation simple and straightforward. Even inexperienced operators can quickly learn how to use the machine, thanks to its user-friendly design. Additionally, the machine's compact design makes it easy to fit into any manufacturing plant, regardless of the available space.
The machine is also built to last. It is constructed using high-quality materials that can withstand even the most challenging work environments. The machine's solid construction ensures that it can handle the toughest jobs without breaking down or failing. This means that textile manufacturing companies can rely on the ProfixM warping machine to deliver consistent results for years to come.
The ProfixM New Nylon Polyester Mother Yarn Warping Machine Splitting Manufacturing Plants Rolling Paper Tube Core Component Motor Included is an excellent investment for any textile manufacturing plant. With its versatile features, advanced performance capabilities, and solid construction, this machine is designed to make complex manufacturing processes easier and more efficient than ever before. Get yours today and experience the benefits of advanced warping technology in your own manufacturing plant.
item |
value |
product |
Machine |
material capabilities |
Nylon and polyester mono yarn |
weight (kg) |
600 |
machine type |
Mother yarn splitting machine |
video outgoing-inspection |
Provided |
machinery test report |
Provided |
core components |
Engine |
place of origin |
China |
|
Jiangsu |
warranty |
1 Year |
Name |
Mother yarn splitting machine |
Winding coil skeleton |
95-130x230mm |
Splitting tension |
0.6g/d- 1.0g/d |
Winding |
120*2300mm |
splitting speed |
200D/10F can reach 800/min |
Forming device |
100mm-460mm |
Spindle motor |
1kw |
Wire feed motor |
0.24kw |
Forming motor |
0.02kw |
Spitting motor |
0.02kw |

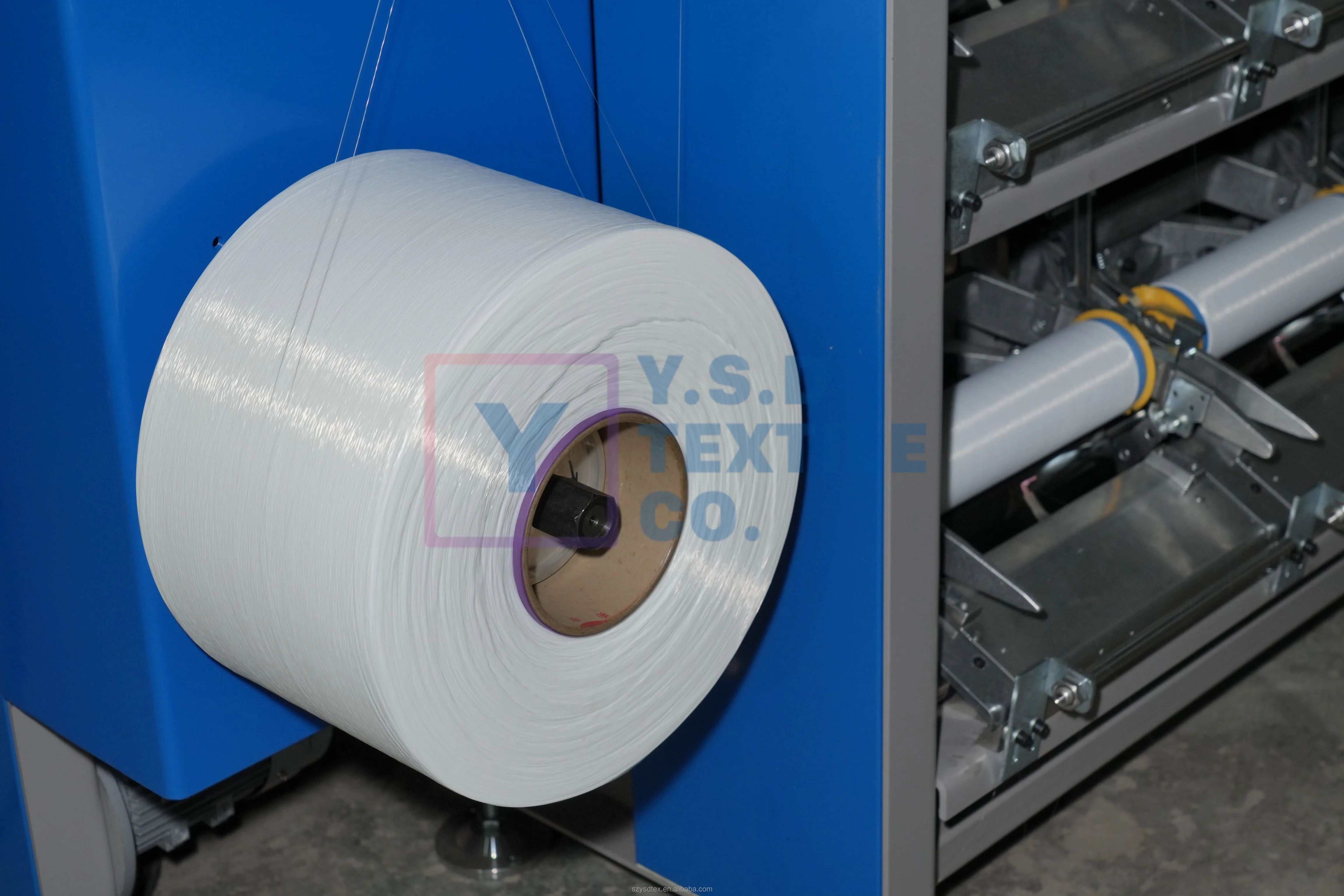

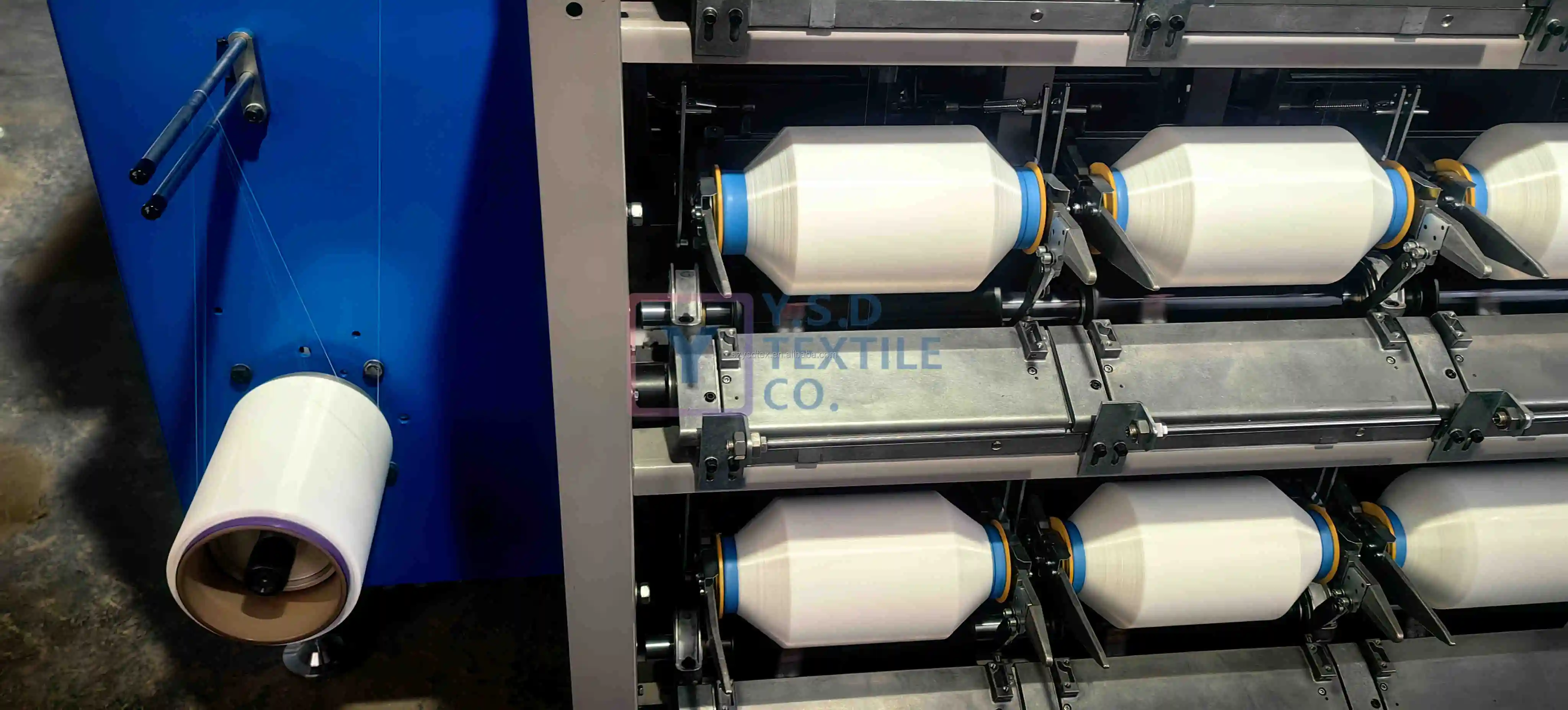

Mother yarn splitting machine rolling on paper bobbin
1. stable tension on each splitted bobbin from beginning to end
2. use normal DTY paper bobbin, low production cost and easy found
3. no weight limit on mother yarn size, 12kg -- 24kg can run
4. running speed 800-900 m/min
5. friction drum control each spindle, no need each splitted bobbin same size, according to your require decide each bobbin size during splitting
spindles |
height |
length |
width |
24 |
1900mm |
2000mm |
1000mm |

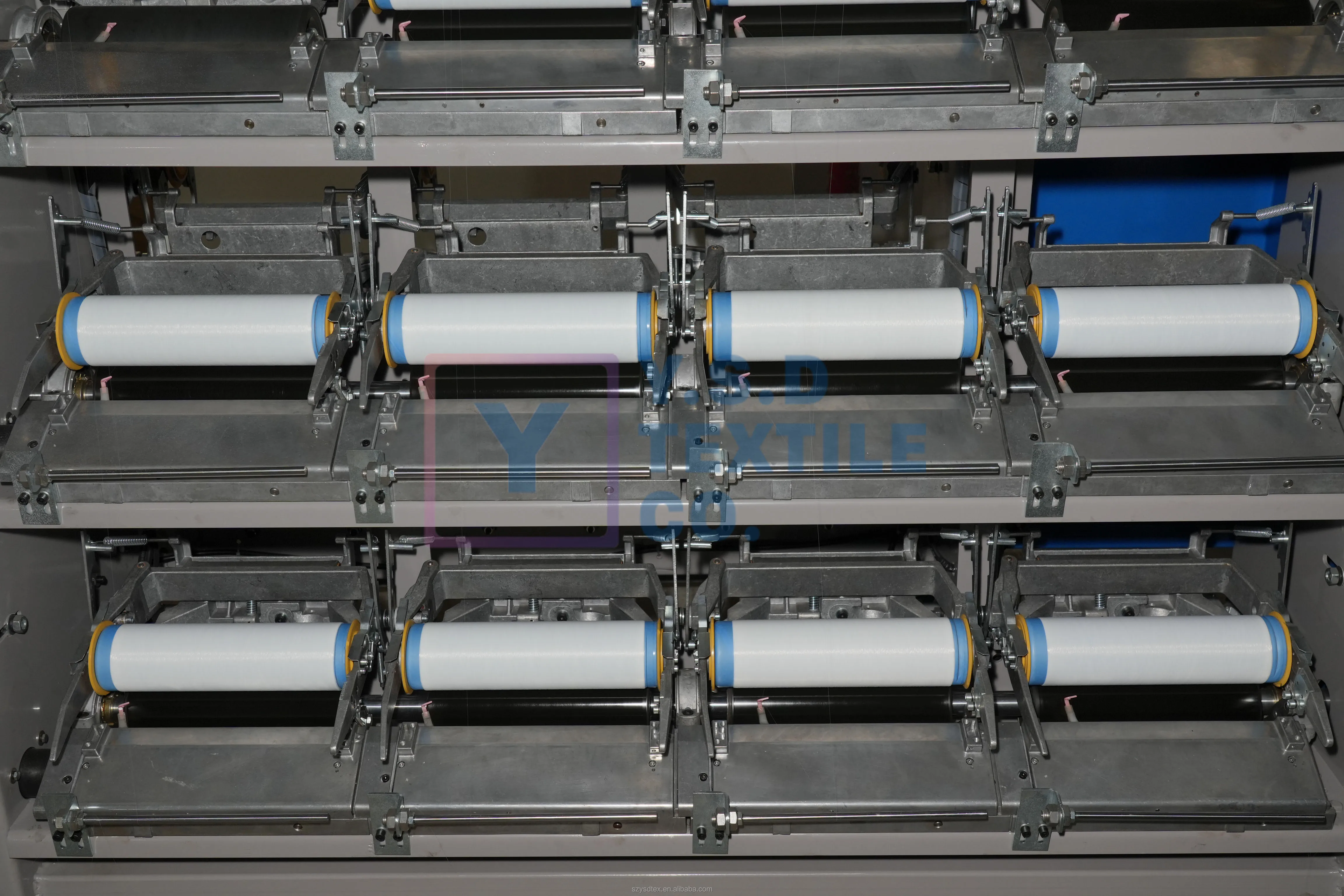

1. Spindles
One side 12 spindles, two sides total 24 spindles (separate control)
2. Paper bobbin size
Length 290mm, outsize 78mm, inner size 67mm and 56mm,
3. Stable tension
Friction drum keep each bobbin same tension
4. Export package
5 sets in 1*20GP11 sets in 1*40HQ
5. Split mother yarn
Nylon and polyester mono yarn with 10D-70D, within 12F
6. Easy control system
Delta motors, English control system
Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win.
1. How about production time? Each group of machine production time 40-50 days, 50 sets each group
2. How about payment term?
T/T 3/7 before delivery, LC at sight
3. How about production quantity?
Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)
4. How about speed at machine?
Normally run 800-1000m/min
5. How about electric match?
Use Delta motor, running power about 2kw, start power 1.5kw
