Polyester Nylon Mother Yarn Splitting Machine New Motor Textile Machinery Manufacturing Plant Rolling Paper Tube

ProfixM

Do you often work with polyester or nylon mother yarns in your textile manufacturing plant? Do you find it a hassle to split the yarns into thinner strands manually? Look no further than profixM's Polyester Nylon Mother Yarn Splitting Machine - equipped with a new motor for efficient and precise yarn splitting.

Our splitting machine is designed to make your job easier. It works by feeding the mother yarn through multiple blades that cut it into several thinner strands. This process eliminates the need for manual splitting, which can be time-consuming and labor-intensive.

The machine is manufactured with high-quality materials, ensuring its durability and longevity. Its rolling paper tube makes it convenient to handle the split yarns, providing a safe and organized way to store them. Additionally, the machine can produce consistent and uniform yarn strands, which are profixM critical in achieving quality textile products.

Our new motor provides improved performance, ensuring efficient and consistent splitting. It is also energy-efficient, reducing your electricity consumption and keeping your operational costs low. With the new motor, the machine can handle a higher volume of mother yarns, enabling you to increase your production capacity.

What sets the profixM Polyester Nylon Mother Yarn Splitting Machine apart is its ease of use. The machine is designed to be user-friendly, meaning you can start using it straight out of the box. It also requires minimal maintenance, saving you time and money.

Our company is committed to providing high-quality textile machinery. Together with our machine's specifications and features, we offer excellent customer support to ensure that you have a smooth and stress-free experience with our product. Our team of experts is available to assist you with any queries you may have on the splitting machine.

ProfixM Polyester Nylon Mother Yarn Splitting Machine is an excellent investment for textile manufacturing plants. With its new motor, rolling paper tube, and durability, it is sure to meet your business needs. Its user-friendly design and exceptional customer support make it a must-have in any textile production facility. Try it out today and experience the difference.

Product Description

Specification

item	value
product	Machine
material capabilities	Nylon and polyester mono yarn
weight (kg)	600
machine type	Mother yarn splitting machine
video outgoing-inspection	Provided
machinery test report	Provided
core components	Engine
place of origin	China
	Jiangsu
warranty	1 Year
Name	Mother yarn splitting machine
Winding coil skeleton	95-130x230mm
Splitting tension	0.6g/d- 1.0g/d
Winding	120*2300mm
splitting speed	200D/10F can reach 800/min
Forming device	100mm-460mm
Spindle motor	1kw
Wire feed motor	0.24kw
Forming motor	0.02kw
Spitting motor	0.02kw

Details Images

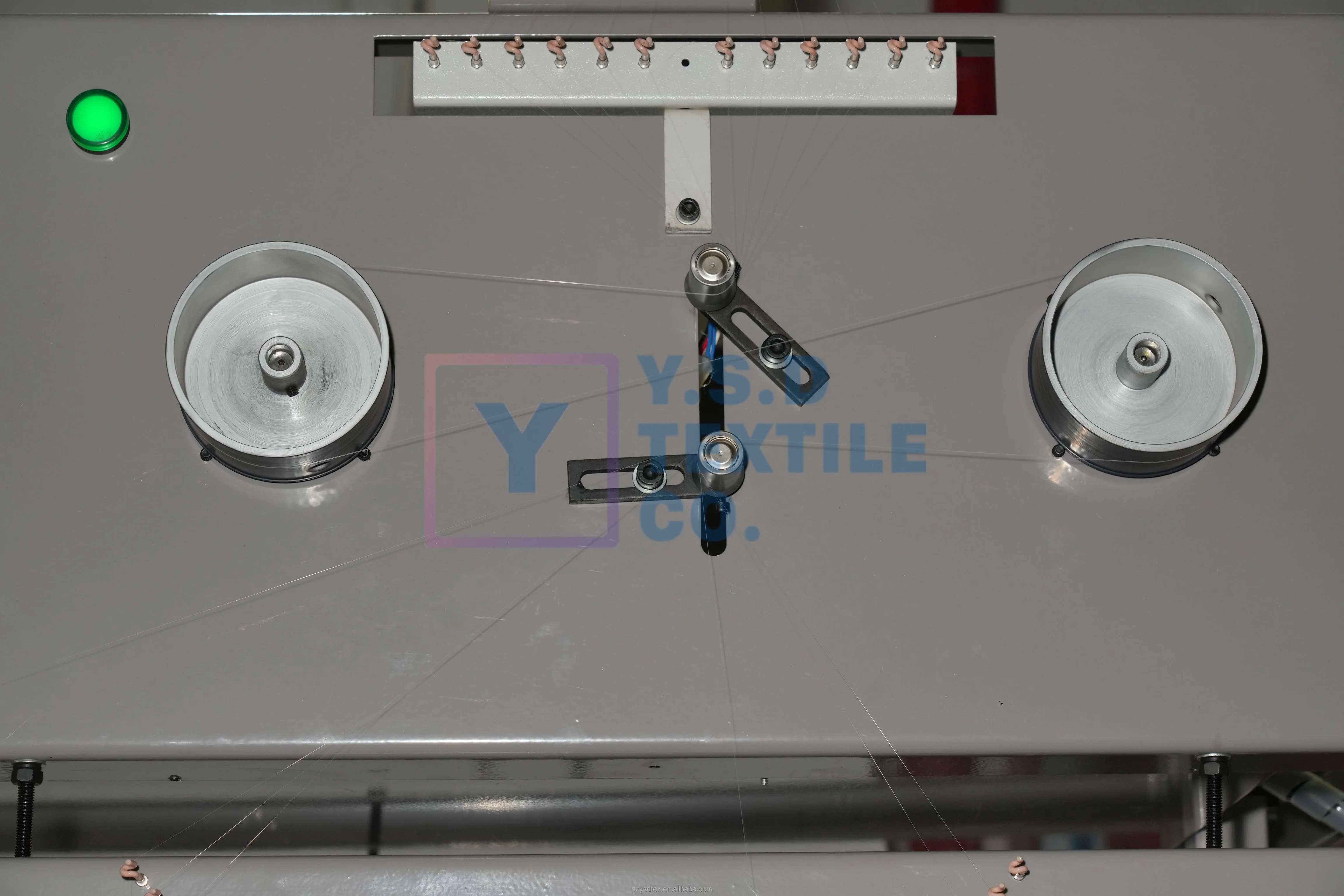

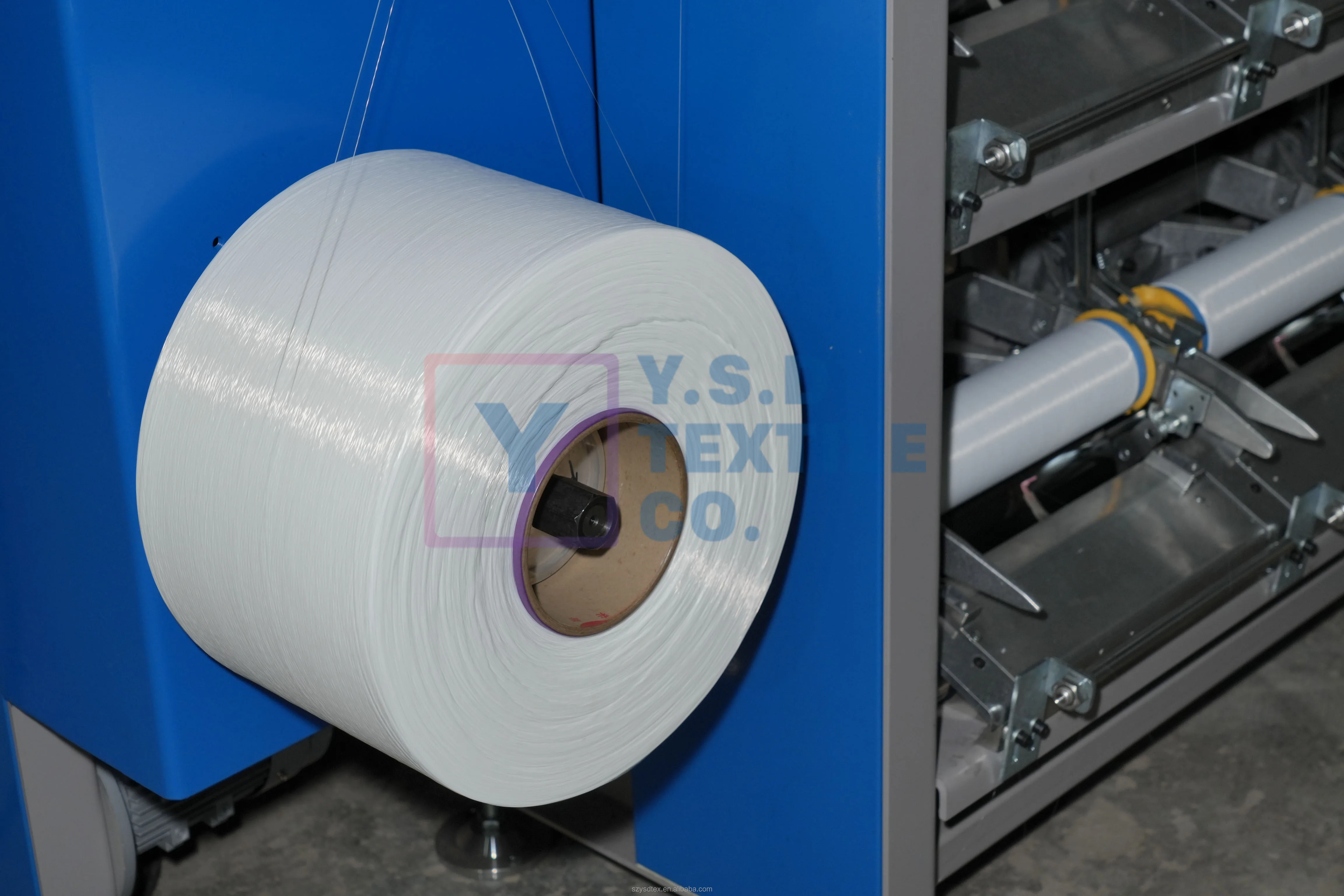

Mother yarn splitting machine rolling on paper bobbin

1. stable tension on each splitted bobbin from beginning to end

2. use normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size, 12kg -- 24kg can run

4. running speed 800-900 m/min

5. friction drum control each spindle, no need each splitted bobbin same size, according to your require decide each bobbin size during splitting

spindles	height	length	width
24	1900mm	2000mm	1000mm

PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP

11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

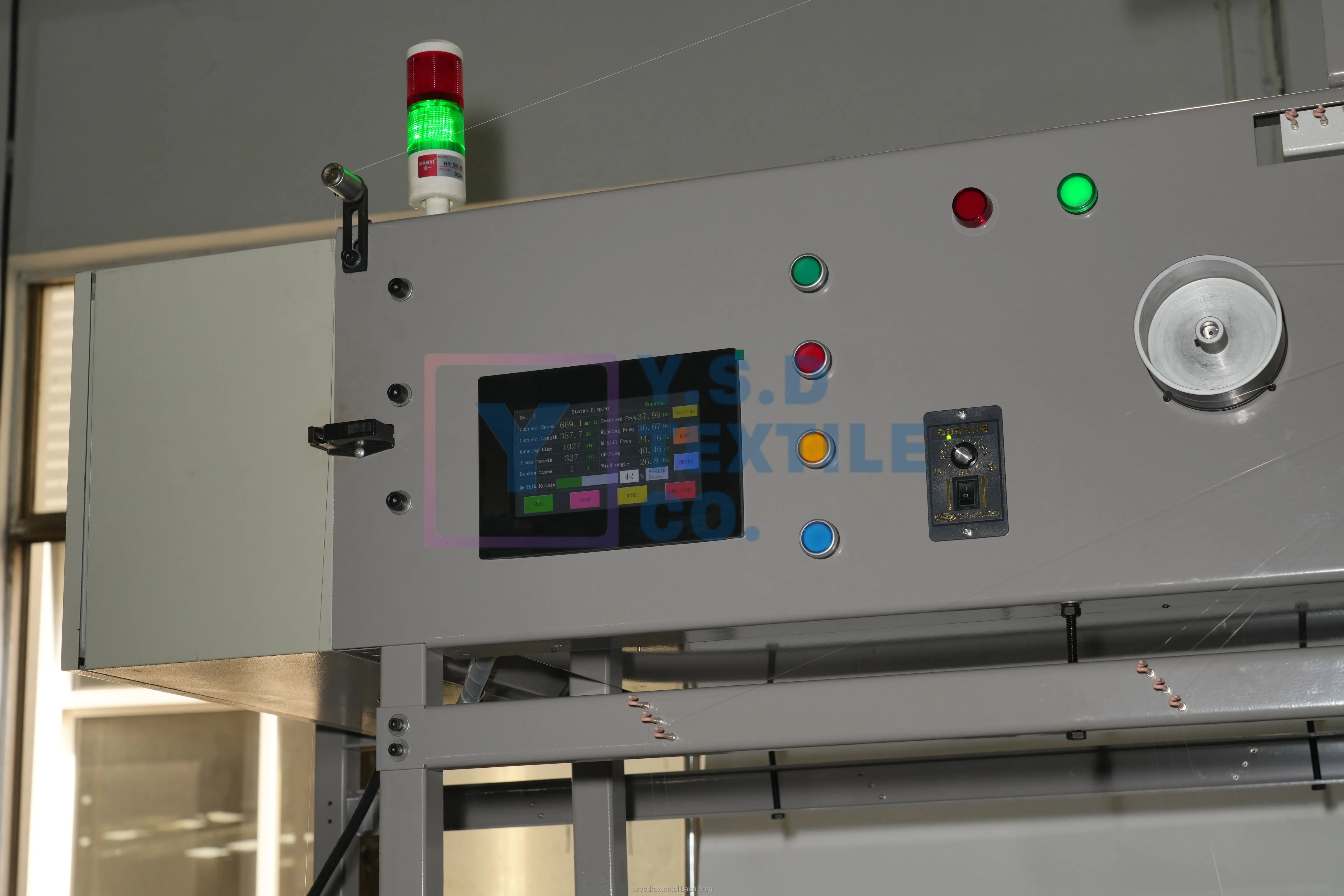

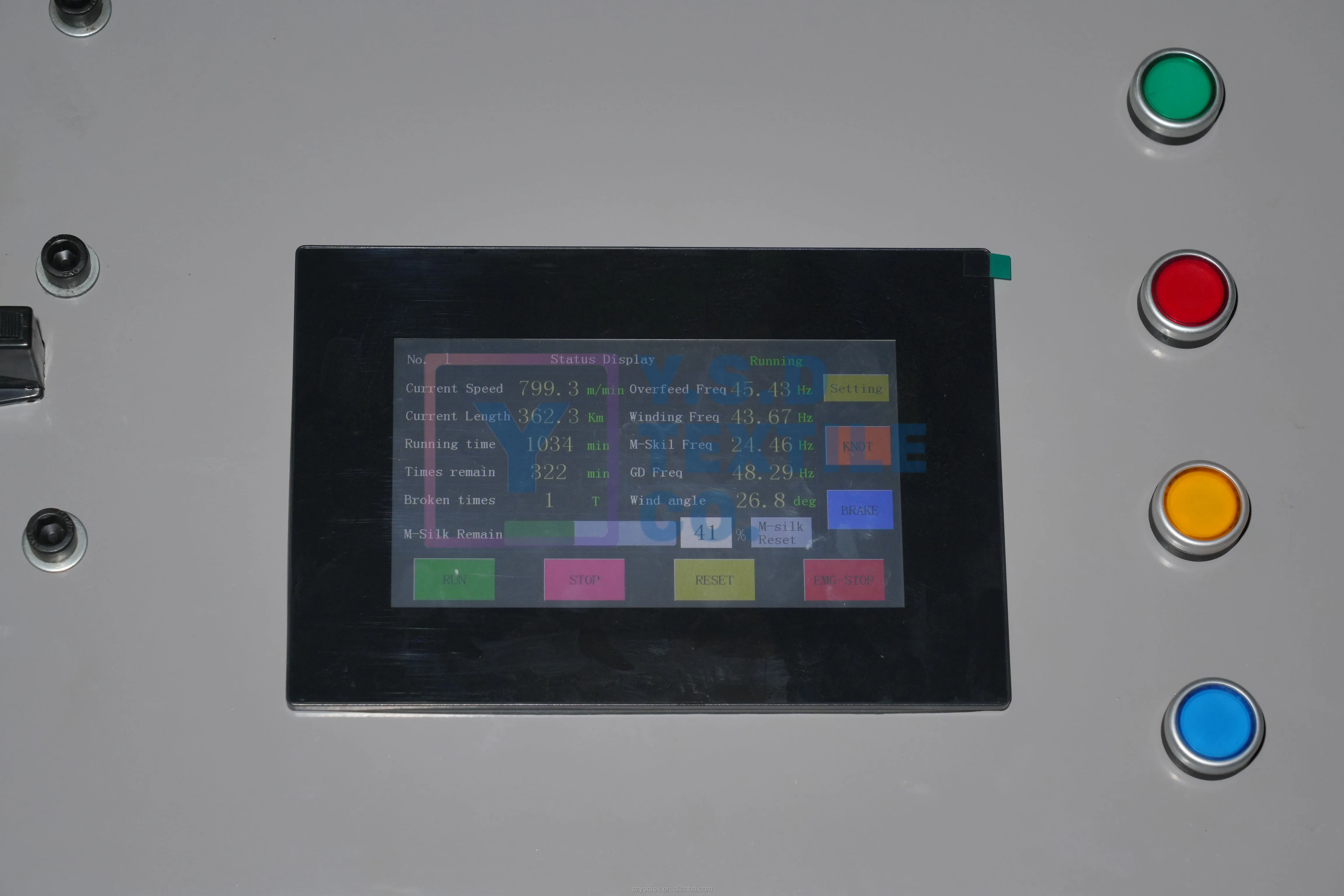

6. Easy control system

Delta motors, English control system

Certifications

Company Profile

Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win.

Exhibition

FAQ

1. How about production time?

Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term?

T/T 3/7 before delivery, LC at sight

3. How about production quantity?

Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine?

Normally run 800-1000m/min

5. How about electric match?

Use Delta motor, running power about 2kw, start power 1.5kw
