Polyester Nylon Mother Yarn Splitting Machine Rolling on Paper Tube Manufacturer Textile Machinery

The profixM’s Polyester Nylon Mother Yarn Splitting Machine Rolling on Paper Tube Manufacturer Textile Machinery is an innovative and high-quality piece of equipment that is designed to revolutionize the textile industry. Made with top-of-the-line materials, this machine is perfect for use in a wide range of textile manufacturing settings.

The profixM’s Mother Yarn Splitting Machine is designed specifically for splitting nylon and polyester mother yarns into smaller and more manageable yarns. With its advanced technology, this machine is able to quickly and efficiently split the mother yarns while rolling them on paper tubes for easy storage and transportation.

One of the main features of the profixM’s Mother Yarn Splitting Machine is its ability to produce high-quality yarns with minimal waste. This means that textile manufacturers can increase their production efficiency while also reducing their overall costs. With this machine, users can expect to achieve consistent, high-quality results every time.

In addition, the profixM’s Mother Yarn Splitting Machine is incredibly user-friendly, making it easy for even novice textile manufacturers to use. Its intuitive controls and clear displays make it simple to set up and operate, while its compact design ensures that it can be easily integrated into any manufacturing process.

Another benefit of the profixM’s Mother Yarn Splitting Machine is its durability. Made with rugged materials and built to withstand heavy use, this machine is designed to provide reliable performance year after year. Textile manufacturers can feel confident that their investment in this machine will pay off in the long run.

The profixM’s Polyester Nylon Mother Yarn Splitting Machine Rolling on Paper Tube Manufacturer Textile Machinery is an excellent choice for any textile manufacturer looking for a reliable, high-quality piece of equipment. With its advanced technology, user-friendly operation, and durable construction, this machine is sure to provide exceptional results for years to come

Product Description

Specification

item	value
product	Machine
material capabilities	Nylon and polyester mono yarn
Weight (kg)	600
machine type	Mother yarn splitting machine
Video outgoing-inspection	Provided
machinery test report	Provided
core components	Engine
Place of origin	China
	Jiangsu
warranty	1 Year
Name	Mother yarn splitting machine
Winding coil skeleton	95-130x230mm
Splitting tension	0.6g/d- 1.0g/d
Winding	120*2300mm
splitting speed	200D/10F can reach 800/min
Forming device	100mm-460mm
Spindle motor	1kw
Wire feed motor	0.24kw
Forming motor	0.02kw
Spitting motor	0.02kw

Details Images

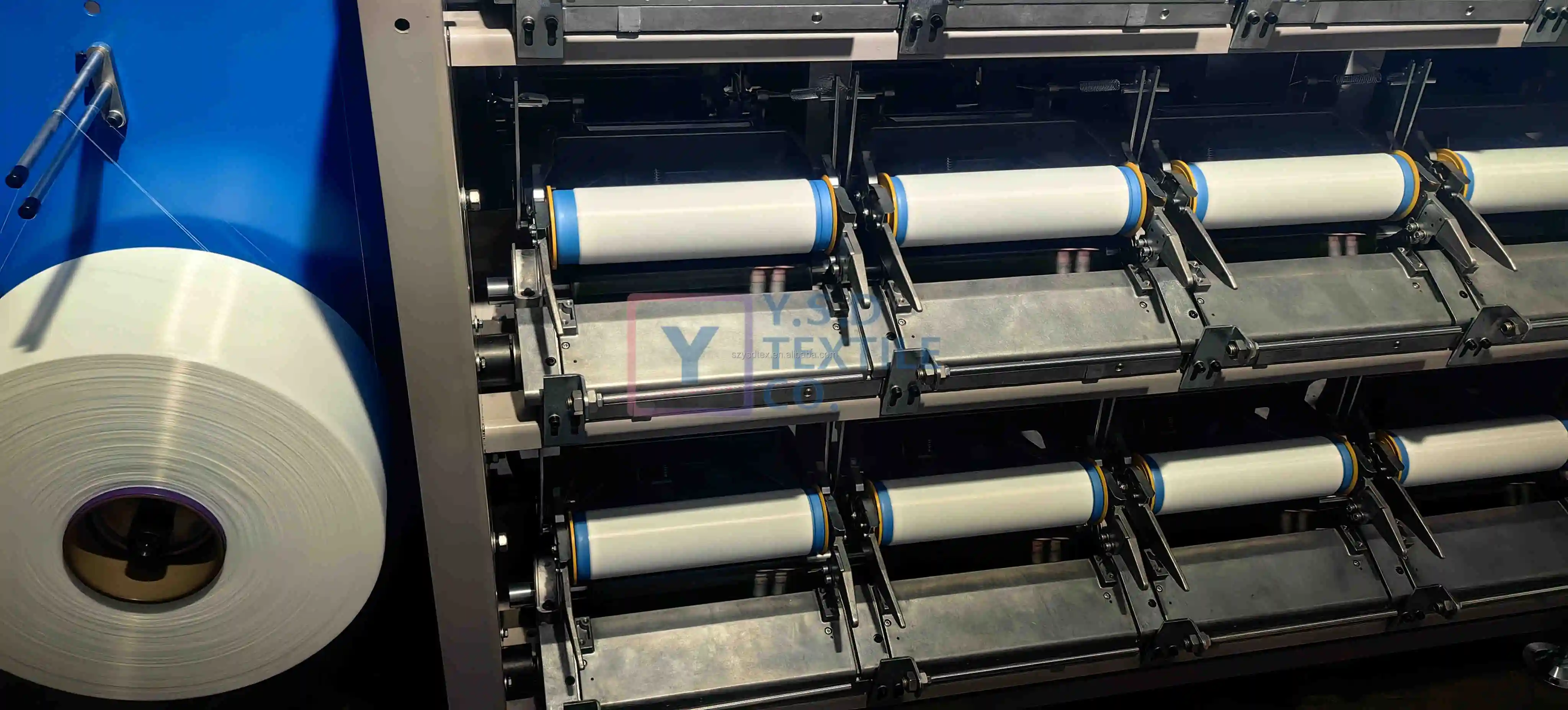

Mother yarn splitting machine rolling on paper bobbin

1. stable tension on each Splitted bobbin from beginning to end

2. use normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size, 12kg -- 24kg can run

4. running speed 800-900 m/min

5. friction drum control each spindle, no need each Splitted bobbin same size, according to your require decide each bobbin size during splitting

spindles	height	length	width
24	1900mm	2000mm	1000mm

PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP

11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

6. Easy control system

Delta motors, English control system

Certifications

Company Profile

Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win

Exhibition

FAQ

1. How about production time

Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term

T/T 3/7 before delivery, LC at sight

3. How about production quantity

Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine

Normally run 800-1000m/min

5. How about electric match

Use Delta motor, running power about 2kw, start power 1.5kw
