Polyester Nylon Mother Yarn Splitting Rolling Paper Tube

The ProfixM’s Polyester Nylon Mother Yarn Splitting Rolling Paper Tube is a remarkable product and a game-changer in the textile industry. The product offers a sturdy and durable solution that is capable of withstanding the demands of the textile manufacturing process.

The product is designed to be reliable and versatile, providing support for mother yarn and splitting it into required sections with ease. It is an excellent technology for creating intricate designs and patterns, thanks to its precision.

The ProfixM’s Polyester Nylon Mother Yarn Splitting Rolling Paper Tube is made from premium-grade polyester and nylon, making it highly durable and long-lasting. The material used in producing the product enhances its ability to withstand high levels of stress while maintaining its strength and rigidity.

Furthermore, the product is lightweight, making it easy to transport and handle by textile workers. The rolling paper tube has a smooth surface that allows seamless interaction between the textile and the product, preventing snagging or fraying.

The product is also easy to install, users can simply load the mother yarn and split them into desired sections with minimal stress. The durable design of the product limits the number of times it needs to be replaced, reducing production downtime and costs.

The ProfixM’s Polyester Nylon Mother Yarn Splitting Rolling Paper Tube is a must-have for any textile manufacturing company that desires quality and efficient production. The product provides industries with the ability to split mother yarn with precision, which ultimately leads to superior quality products.

The product's reliability extends to its usage duration and cost-effectiveness. Users are guaranteed durability and a longer usage time, reducing production costs and downtime.

The ProfixM’s Polyester Nylon Mother Yarn Splitting Rolling Paper Tube is an innovative product that is perfect for any textile manufacturing company. With its reliable and durable design, textile workers can increase productivity, efficiency, and ultimately, profits. The brand is committed to providing high-quality products, and this product is no exception. Customers can trust that they are getting the best value for their money

Product Description

Specification

item	value
product	Machine
material capabilities	Nylon and polyester mono yarn
Weight (kg)	600
machine type	Mother yarn splitting machine
Video outgoing-inspection	Provided
machinery test report	Provided
core components	Engine
place of origin	China
	Jiangsu
warranty	1 Year
Name	Mother yarn splitting machine
Winding coil skeleton	95-130x230mm
Splitting tension	0.6g/d- 1.0g/d
Winding	120*2300mm
splitting speed	200D/10F can reach 800/min
Forming device	100mm-460mm
Spindle motor	1kw
Wire feed motor	0.24kw
Forming motor	0.02kw
Spitting motor	0.02kw

Details Images

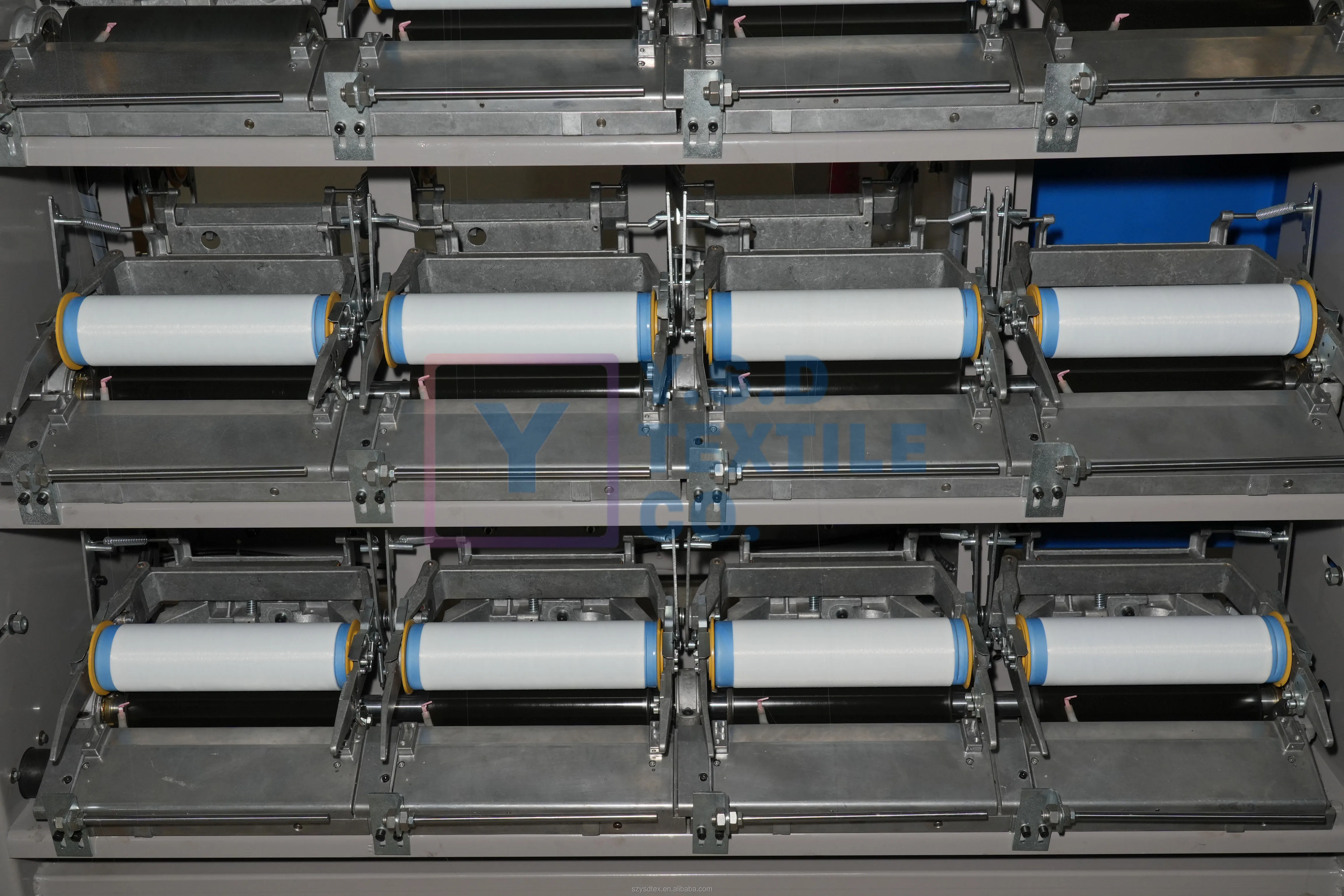

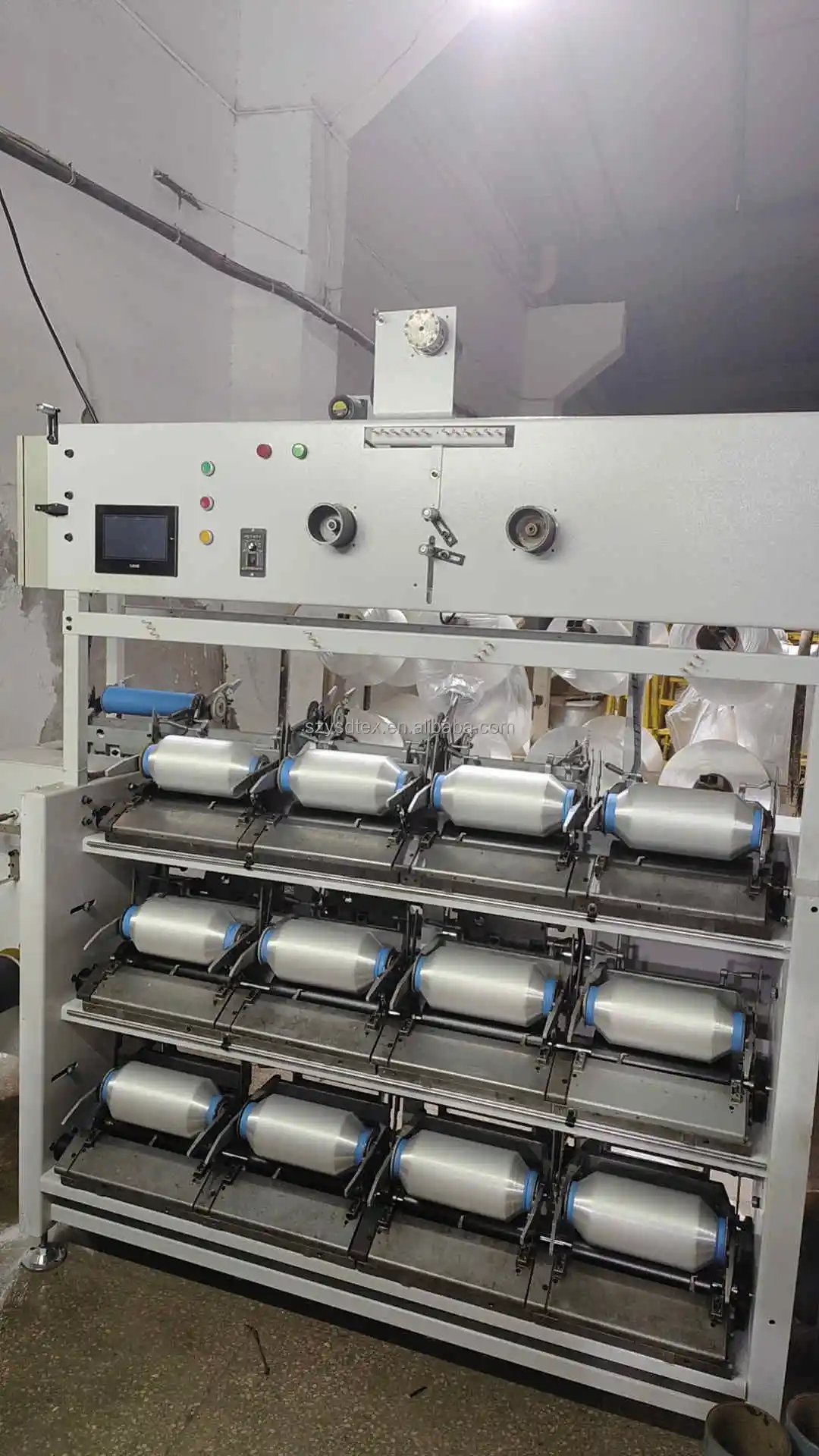

Mother yarn splitting machine rolling on paper bobbin

1. stable tension on each Splitted bobbin from beginning to end

2. use normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size, 12kg -- 24kg can run

4. running speed 800-900 m/min

5. friction drum control each spindle, no need each Splitted bobbin same size, according to your require decide each bobbin size during splitting

spindles	height	length	width
24	1900mm	2000mm	1000mm

PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP

11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

6. Easy control system

Delta motors, English control system

Certifications

Company Profile

Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win

Exhibition

FAQ

1. How about production time

Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term

T/T 3/7 before delivery, LC at sight

3. How about production quantity

Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine

Normally run 800-1000m/min

5. How about electric match

Use Delta motor, running power about 2kw, start power 1.5kw
