Textile Machinery High-Speed Nylon & Polyester Mother Yarn Splitting Machine Rolling on Paper

Textile Machinery High-Speed Nylon & Polyester Mother Yarn Splitting Machine Rolling on Paper

  • Overview
  • Inquiry
  • Related Products

ProfixM



Introducing the Textile Machinery High-Speed Nylon and Polyester Mother Yarn Splitting Machine Rolling on Paper.



This modern and efficient machine is specially designed to split mother yarns of nylon and polyester into multiple single yarns at high speeds. It is easy to operate and can produce large quantities of split yarns in a short amount of time.



The machine comes equipped with a rolling mechanism that ensures smooth and even distribution of the split yarns onto paper cones. The cones are designed to fit perfectly onto the machine, making it easy to switch out cones when one is full.



The machine has a high speed of up to 1200 profixM revolutions per minute, making it one of the most efficient machines in the market. It is built with high-quality materials that ensure durability, longevity, and optimal performance.



The Textile Machinery High-Speed Nylon and Polyester Mother Yarn Splitting Machine Rolling on Paper is perfect for large-scale production units that require a reliable machine system. It can be used in textile mills, garment factories, and yarn production units.



One of the greatest advantages of this machine is that it produces a lesser number of defects compared to traditional splitting machines. This is because the machine is designed to handle delicate nylon and polyester yarns with utmost care, ensuring the highest quality of split yarns.

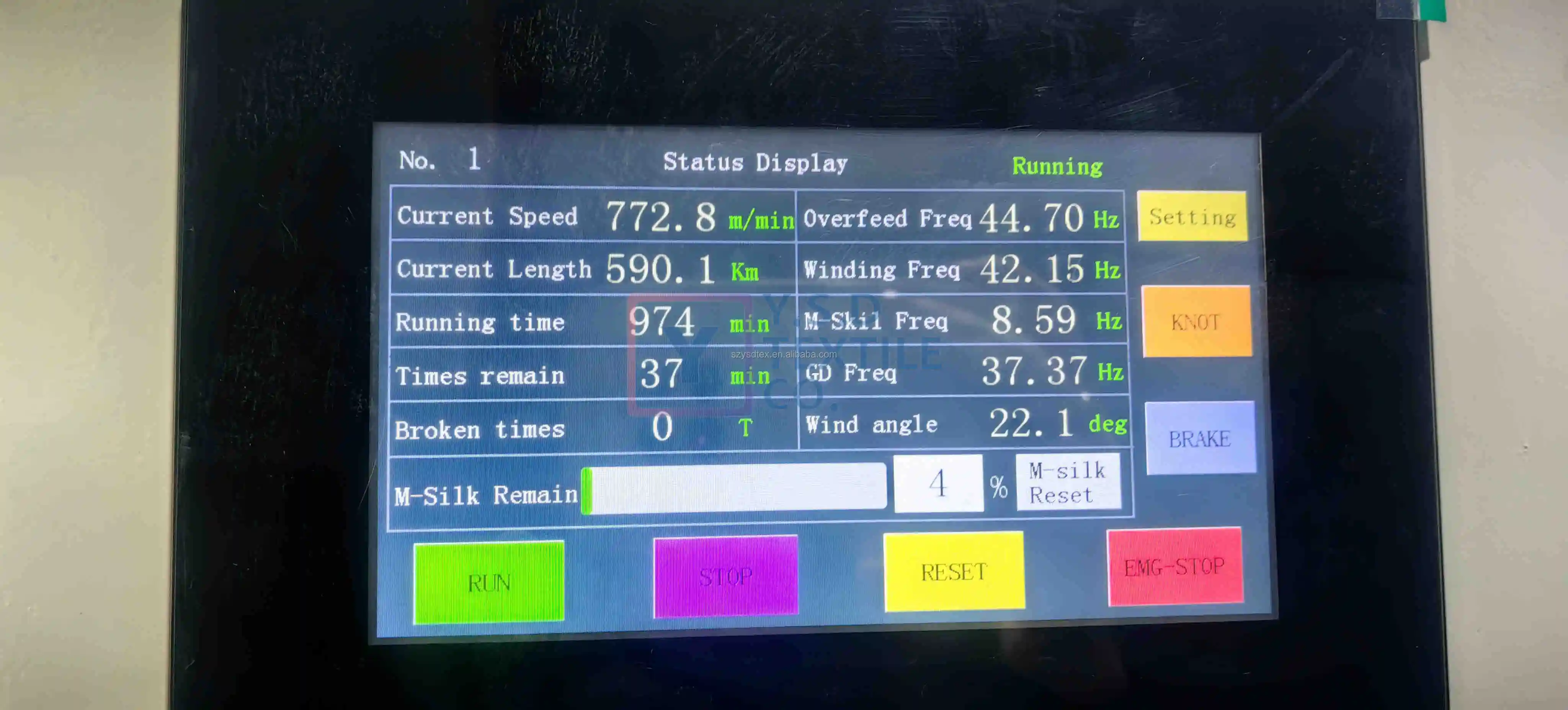

The machine has a user-friendly interface that makes it easy for operators to control and monitor the production process. The digital display allows for accurate tracking of the production process, ensuring that there are no mistakes or errors.



The Textile Machinery High-Speed Nylon and Polyester Mother Yarn Splitting Machine Rolling on Paper by profixM is an efficient, reliable, and modern machine that guarantees high-quality split yarns. It is the perfect machine for any business or production unit that requires a reliable and efficient system. Get yours today and experience the difference in quality and efficiency.




Product Description
Specification
item
value
product
Machine
material capabilities
Nylon and polyester mono yarn
weight (kg)
600
machine type
Mother yarn splitting machine
video outgoing-inspection
Provided
machinery test report
Provided
core components
Engine
place of origin
China
Jiangsu
warranty
1 Year
Name
Mother yarn splitting machine
Winding coil skeleton
95-130x230mm
Splitting tension
0.6g/d- 1.0g/d
Winding
120*2300mm
splitting speed
200D/10F can reach 800/min
Forming device
100mm-460mm
Spindle motor
1kw
Wire feed motor
0.24kw
Forming motor
0.02kw
Spitting motor
0.02kw
Details Images

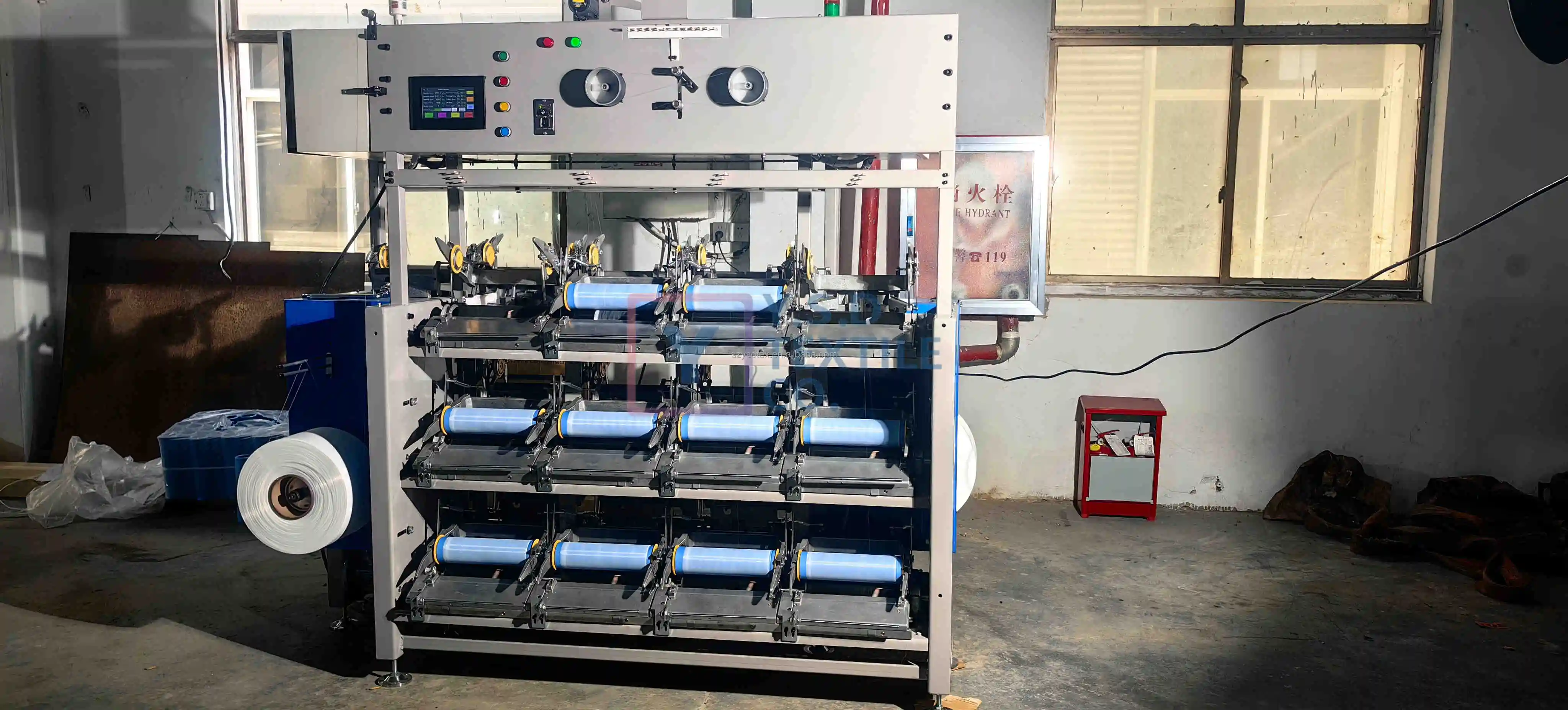

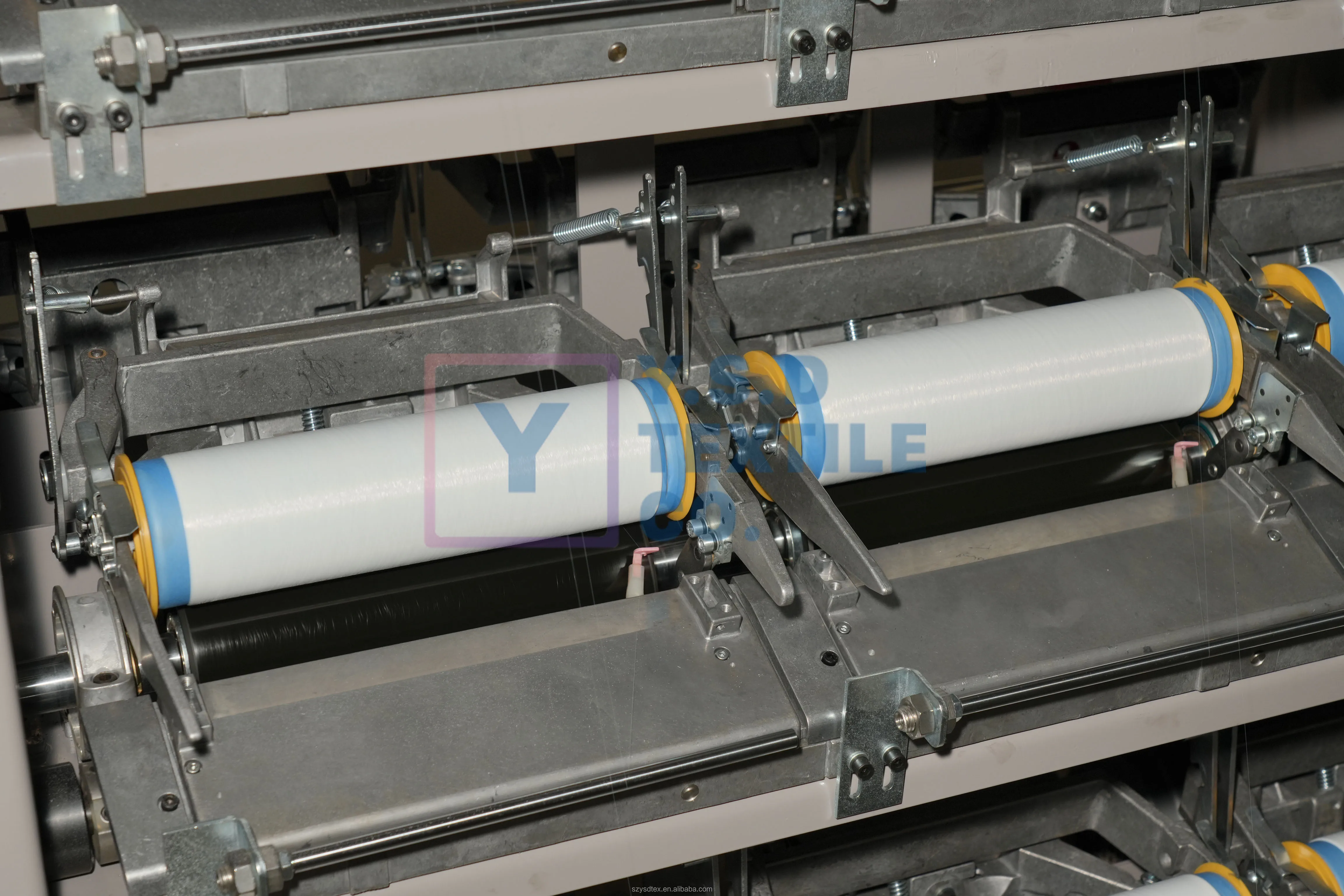

Mother yarn splitting machine rolling on paper bobbin
1. stable tension on each splitted bobbin from beginning to end

2. use
normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size,
12kg -- 24kg
can run

4. running speed
800-900 m/min

5.
friction drum control
each spindle, no need each splitted bobbin same size, according to your require decide each bobbin size during splitting
spindles
height
length
width
24
1900mm
2000mm
1000mm
PRODUCT CONFIGURATION

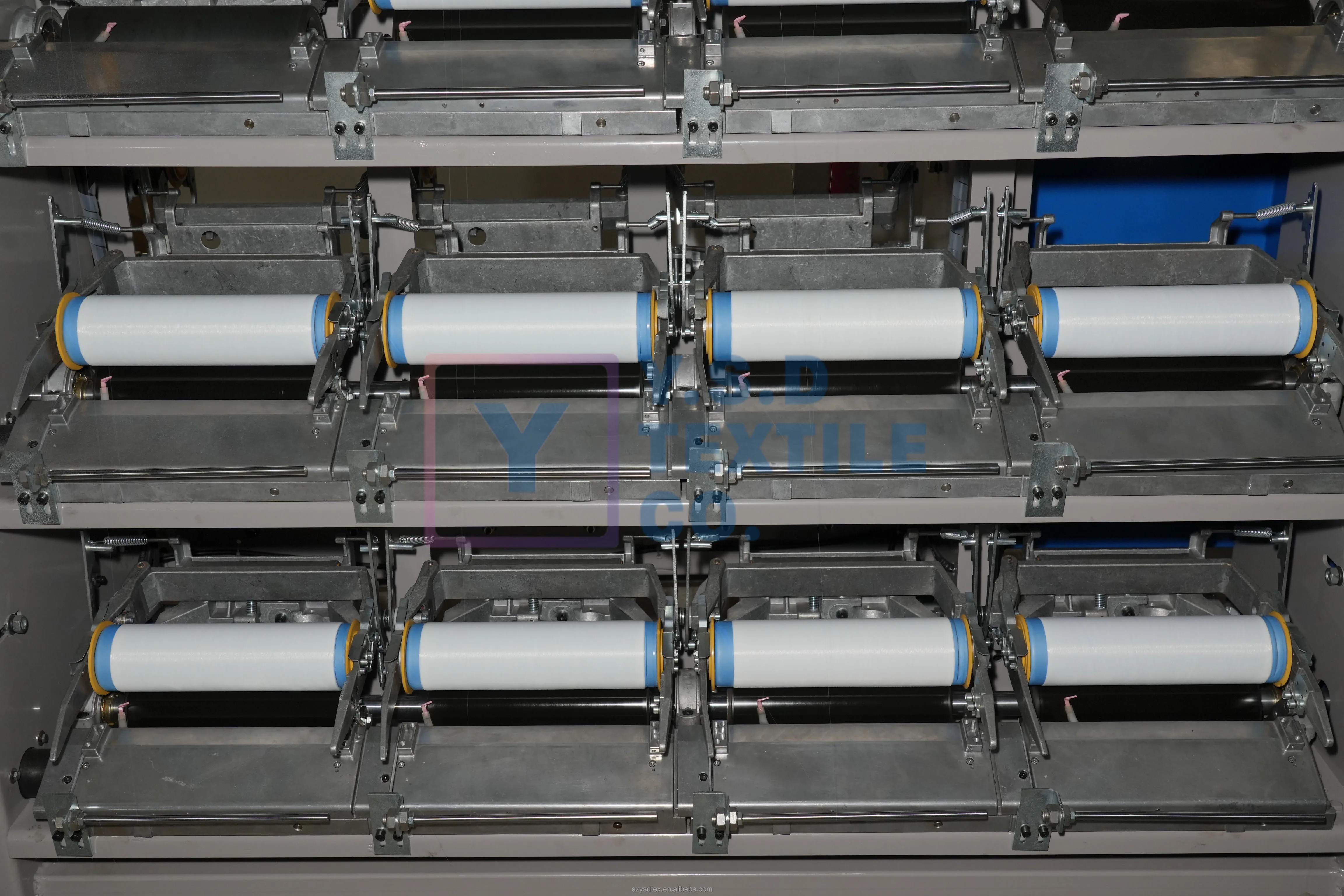

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP
11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

6. Easy control system

Delta motors, English control system
Certifications
Company Profile
Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win.
Exhibition
FAQ

1. How about production time?
Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term?
T/T 3/7 before delivery, LC at sight

3. How about production quantity?
Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machine?
Normally run 800-1000m/min

5. How about electric match?
Use Delta motor, running power about 2kw, start power 1.5kw
