Textile Machinery High-Speed Nylon & Polyester Mother Yarn Splitting Machine Rolling on Paper Textile Machinery

The profixM’s Textile Machinery High-Speed Nylon & Polyester Mother Yarn Splitting Machine Rolling on Paper is an incredible addition to any textile workshop. This state-of-the-art machine is designed to split nylon and polyester mother yarn into thinner yarns for use in a variety of textile applications.

One of the standout features of this machine is its high-speed capabilities. With a maximum speed of 1200 meters per minute, it can get the job done quickly and efficiently. This is particularly useful for larger textile projects that require a significant amount of yarn splitting.

The machine is also incredibly versatile, capable of working with a wide range of mother yarns. This includes nylon and polyester yarns with different deniers, allowing for even greater flexibility in textile production. It also has an adjustable splitting ratio, so you can customize the thickness of each split yarn.

Another benefit of the profixM’s Textile Machinery High-Speed Nylon & Polyester Mother Yarn Splitting Machine Rolling on Paper is its ease of use. The machine is designed to be simple and intuitive, with easy-to-use controls that allow you to set the speed and splitting ratio with ease. This means you can get started on your textile projects without any lengthy setup procedures or complicated instructions.

When it comes to durability, this machine is built to last. It features a sturdy design and high-quality materials, ensuring it can withstand the demands of daily use in a busy textile workshop. The machine is also easy to clean and maintain, so you can keep it in excellent condition for years to come.

The profixM’s Textile Machinery High-Speed Nylon & Polyester Mother Yarn Splitting Machine Rolling on Paper is an essential tool for any textile workshop. Its high-speed capabilities, versatility, ease of use, and durability make it the perfect choice for yarn splitting applications. Whether you're working on a large-scale textile project or just need to split a small amount of yarn, this machine is sure to get the job done quickly and efficiently. So, why wait? Invest in the profixM’s Textile Machinery High-Speed Nylon & Polyester Mother Yarn Splitting Machine Rolling on Paper today and take your textile production to the next level

Product Description

Specification

item	value
product	Machine
material capabilities	Nylon and polyester mono yarn
Weight (kg)	600
machine type	Mother yarn splitting machine
Video outgoing-inspection	Provided
machinery test report	Provided
core components	Engine
place of origin	China
	Jiangsu
warranty	1 Year
Name	Mother yarn splitting machine
Winding coil skeleton	95-130x230mm
Splitting tension	0.6g/d- 1.0g/d
Winding	120*2300mm
splitting speed	200D/10F can reach 800/min
Forming device	100mm-460mm
Spindle motor	1kw
Wire feed motor	0.24kw
Forming motor	0.02kw
Spitting motor	0.02kw

Details Images

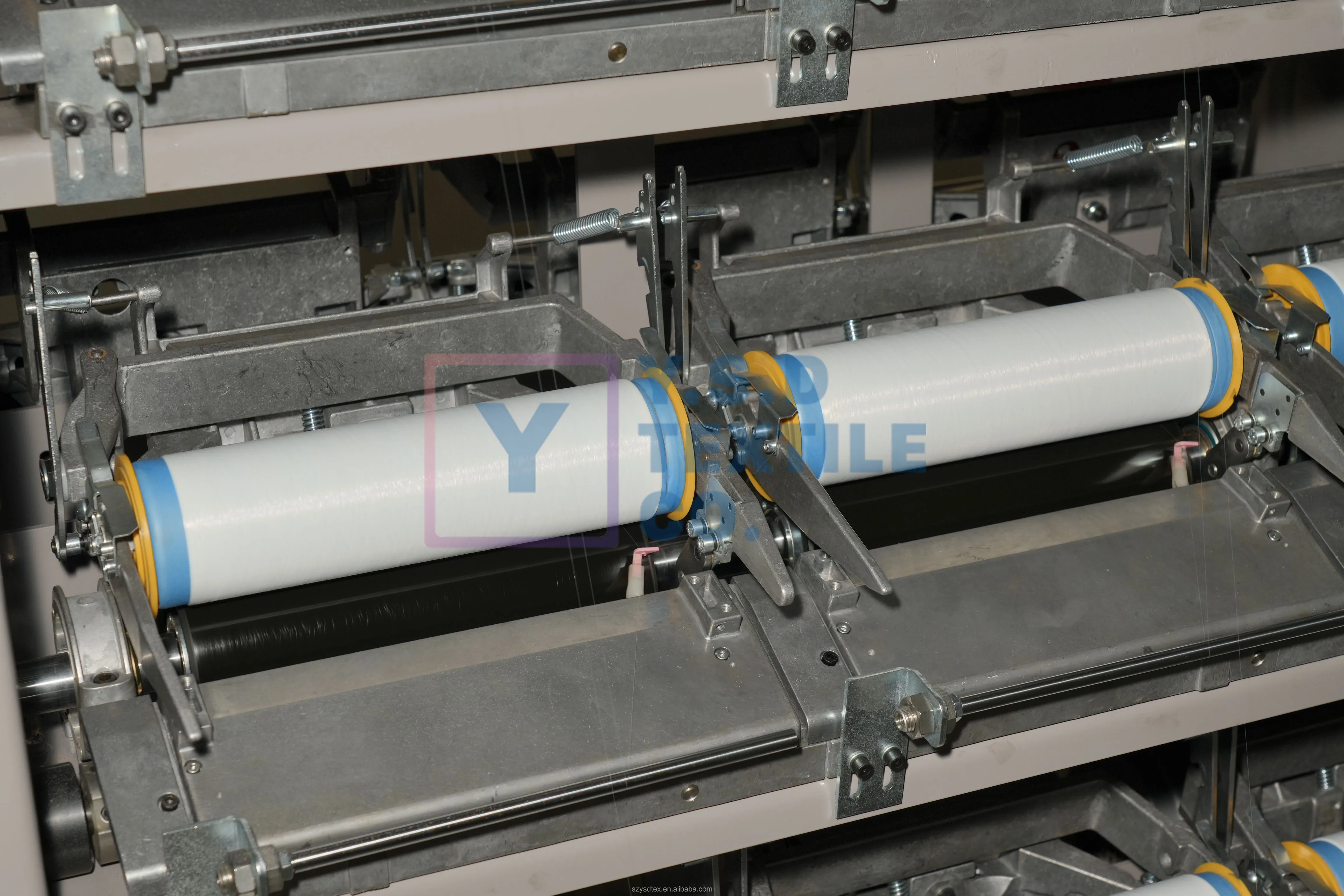

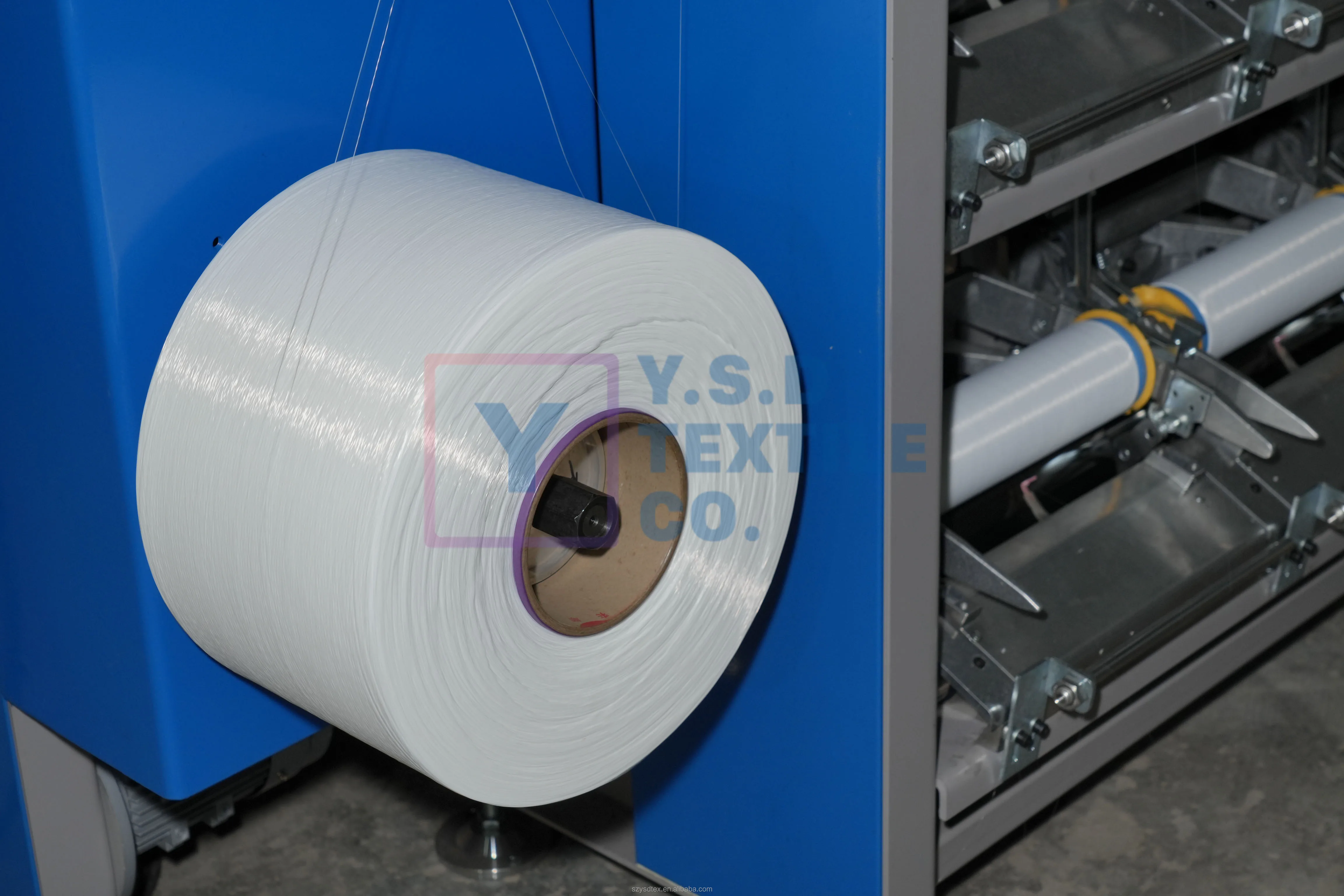

Mother yarn splitting machine rolling on paper bobbin

1. stable tension on each Splitted bobbin from beginning to end

2. use normal DTY paper bobbin, low production cost and easy found

3. no weight limit on mother yarn size, 12kg -- 24kg can run

4. running speed 800-900 m/min

5. friction drum control each spindle, no need each Splitted bobbin same size, according to your require decide each bobbin size during splitting

spindles	height	length	width
24	1900mm	2000mm	1000mm

PRODUCT CONFIGURATION

1. Spindles

One side 12 spindles, two sides total 24 spindles (separate control)

2. Paper bobbin size

Length 290mm, outsize 78mm, inner size 67mm and 56mm,

3. Stable tension

Friction drum keep each bobbin same tension

4. Export package

5 sets in 1*20GP

11 sets in 1*40HQ

5. Split mother yarn

Nylon and polyester mono yarn with 10D-70D, within 12F

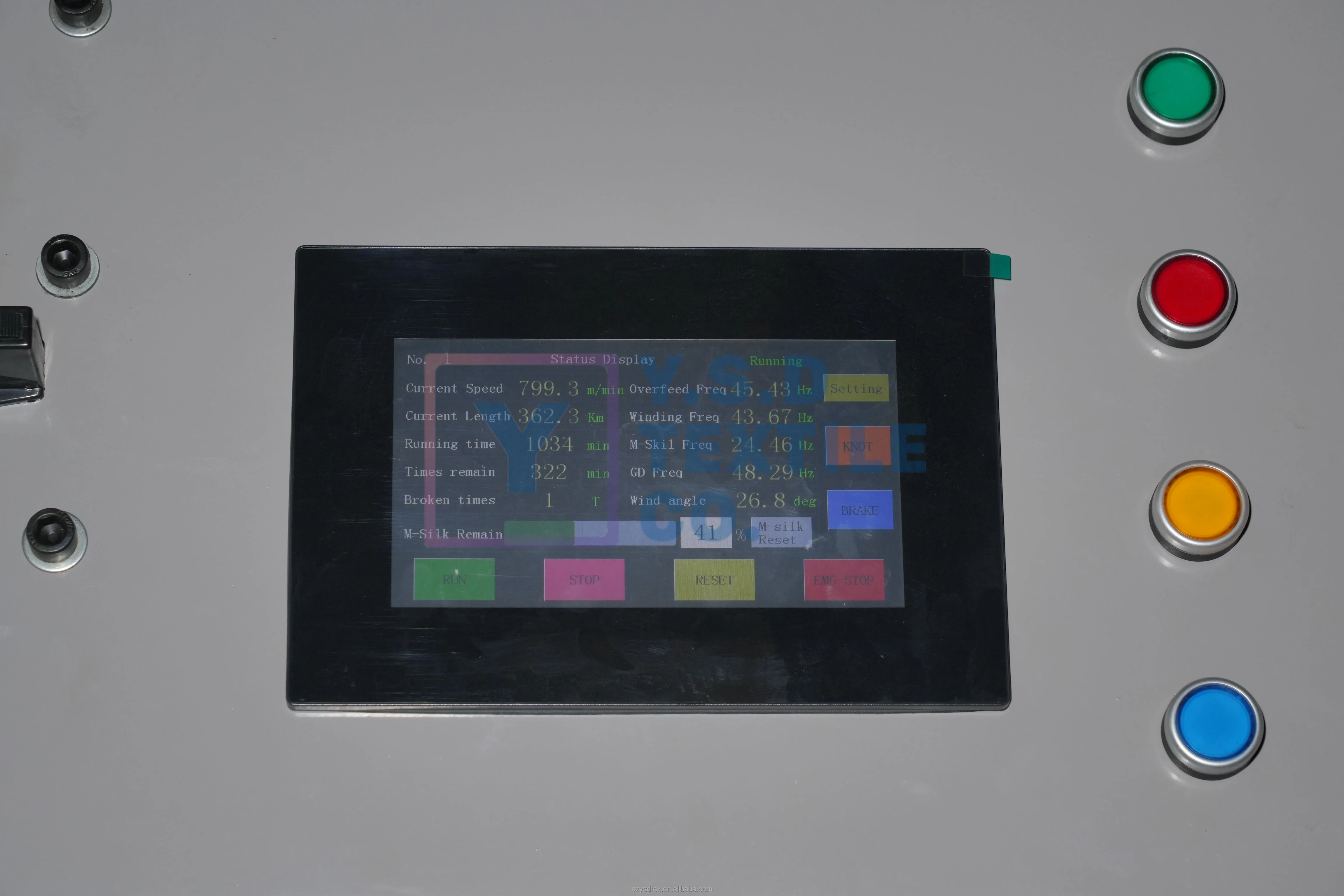

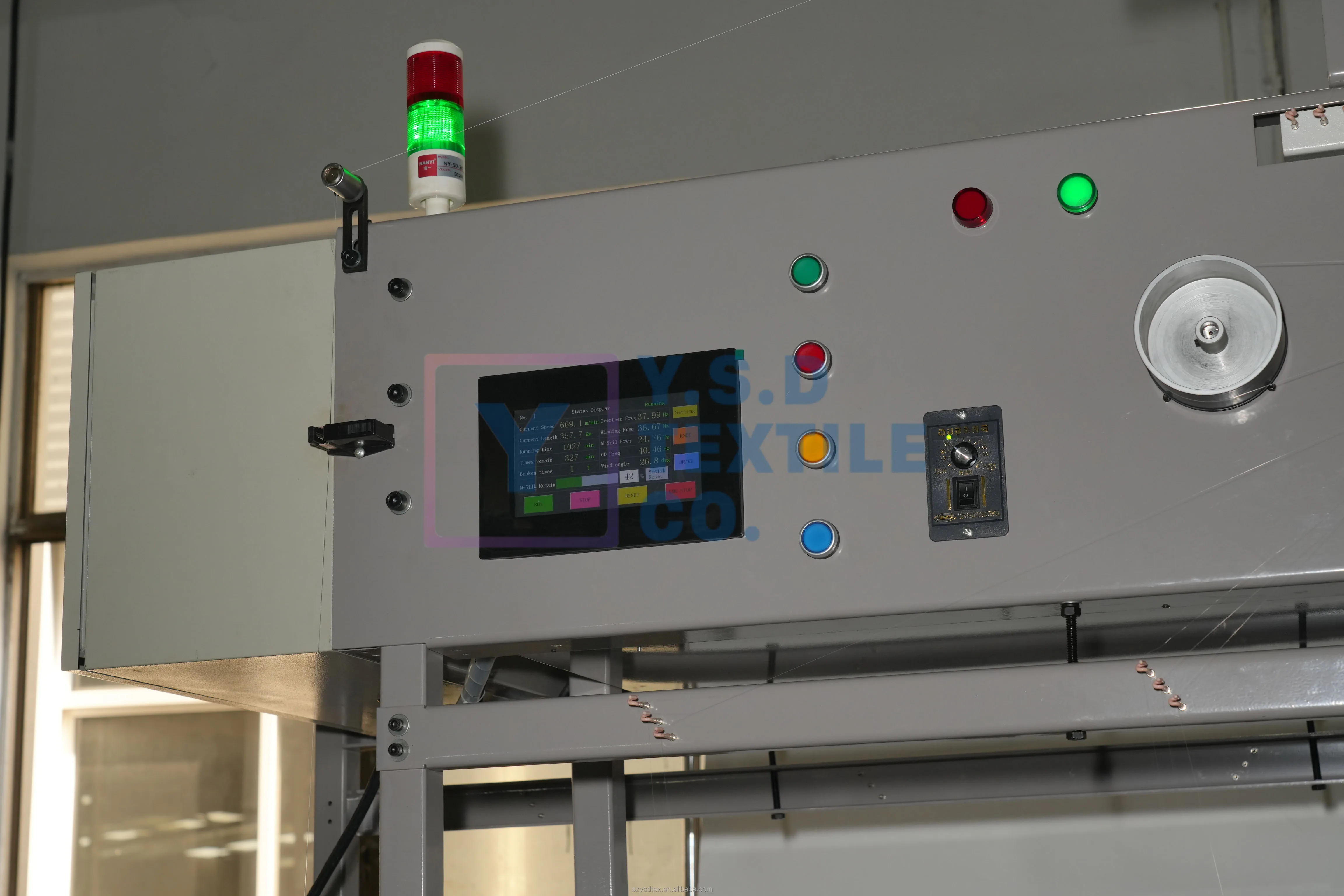

6. Easy control system

Delta motors, English control system

Certifications

Company Profile

Suzhou YSD Textile Co., Ltd. is located in Pingwang Town, Yangtze River Delta, covers an area of 20000 square meters, mainly produces top grade high-speed mother yarn sectional split warping machine, mother yarn splitting machine, all kinds of women's fabrics, Wujiang Telong Chemical Fiber Co., Ltd. is located in Zhenze Town, covers an area of 20000 square meters, production of nylon/ polyester monofilament yarn, mother yarn, organza (textured) yarn, feather yarn 8000 tons each year, our third phases of spinning building has started construction, after the completion of the annual output can be above 20000 tons. We are based on the perspective of customers, to help you solve problems, grow together, mutual benefit and win-win

Exhibition

FAQ

1. How about production time

Each group of machine production time 40-50 days, 50 sets each group

2. How about payment term

T/T 3/7 before delivery, LC at sight

3. How about production quantity

Each 24 hours run 60KG of Nylon 240/12 mother yarn at each machine (two sides)

4. How about speed at machin

Normally run 800-1000m/min

5. How about electric match

Use Delta motor, running power about 2kw, start power 1.5kw
